B&K 521-707HC

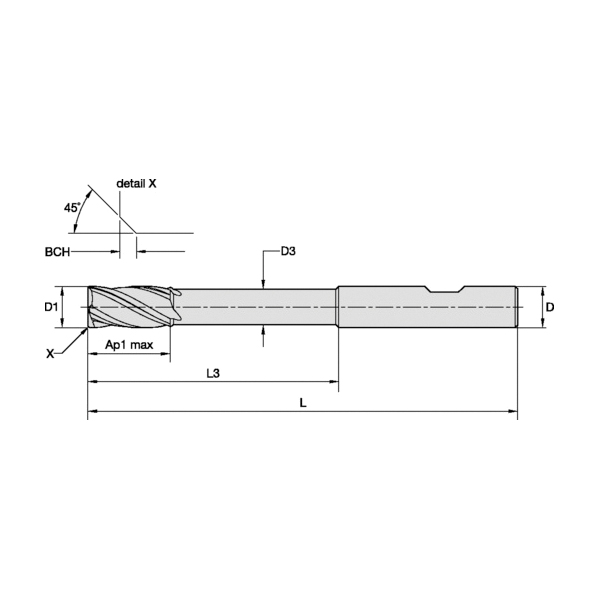

WIDIA HANITA 4067708 VariMill I™ 47N6 Center Cutting Extended Reach High Performance Single End End Mill With Neck, 12 mm Dia Cutter, 0.5 mm Corner Radius, 24 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 125 mm OAL, TiAlN
- Manufacturer: WIDIA
- Brand Name: WIDIA HANITA
- Part Number: B&K 521-707HC
- MPN: 4067708
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 1/PK
-
Price:
VariMill I™ are the most universal end mills for use in a wide range of workpiece materials and types of operations. Plunging slotting, and profiling at highest feed rates are possible. VariMill I™ is combining roughing and finishing operations into one while designed to provide maximum metal removal rates and achieving supreme surface conditions.
WIDIA HANITA End Mill, Center Cutting Extended Reach High Performance Single End, Series: VariMill I™ 47N6, 12 mm Diameter Cutter, 0.5 mm Corner Radius, 125 mm Overall Length, 24 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Weldon Flat Shank, 52 mm Shank Length, Solid Carbide, TiAlN
| Corner Radius | : | 0.5 mm |
| Cutter Diameter | : | 12 mm |
| Cutting Direction | : | Right Hand |
| Finish | : | TiAlN |
| Flute Type | : | Spiral |
| Helix Angle | : | 38 deg |
| Length of Cut | : | 24 mm |
| Material | : | Solid Carbide |
| Number of Flutes | : | 4 |
| Overall Length | : | 125 mm |
| Series | : | VariMill I™ 47N6 |
| Shank Diameter | : | 12 mm |
| Shank Length | : | 52 mm |
| Shank Type | : | Weldon Flat |
| Type | : | Center Cutting Extended Reach High Performance Single End |
- High performance universal tools for almost all workpiece materials
- Unequal flute spacing
- Single tool for both roughing and finishing operations requiring fewer setups
