WHITNEY 30083 WTC 40083
  1. pin-int

WTC 40083

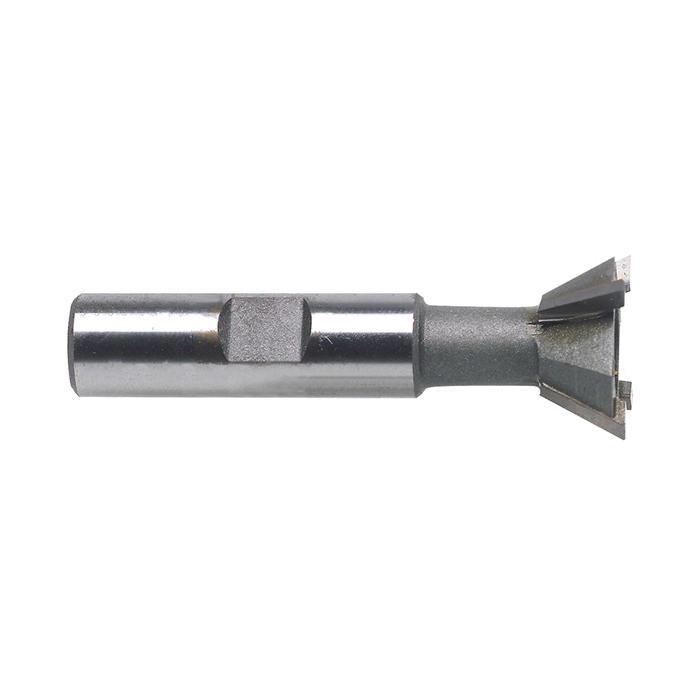

WHITNEY TOOL 30083 High Speed Steel Carbide Tipped Dovetail Cutter Dovetail Cutter, 1-1/2 in Dia Cutter, 3/4 in Dia Straight Shank, 3-1/4 in OAL

  • Manufacturer: Whitney Tool Company
  • Brand Name: WHITNEY
  • Part Number: WTC 40083
  • MPN: 30083
  • UPC: 662995279330
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

WHITNEY TOOL 30083 High Speed Steel Carbide Tipped Dovetail Cutter Dovetail Cutter, 1-1/2 in Dia Cutter, 3/4 in Dia Straight Shank, 3-1/4 in OAL, Material: High Speed Steel - Carbide Tipped, Number of Teeth: 4

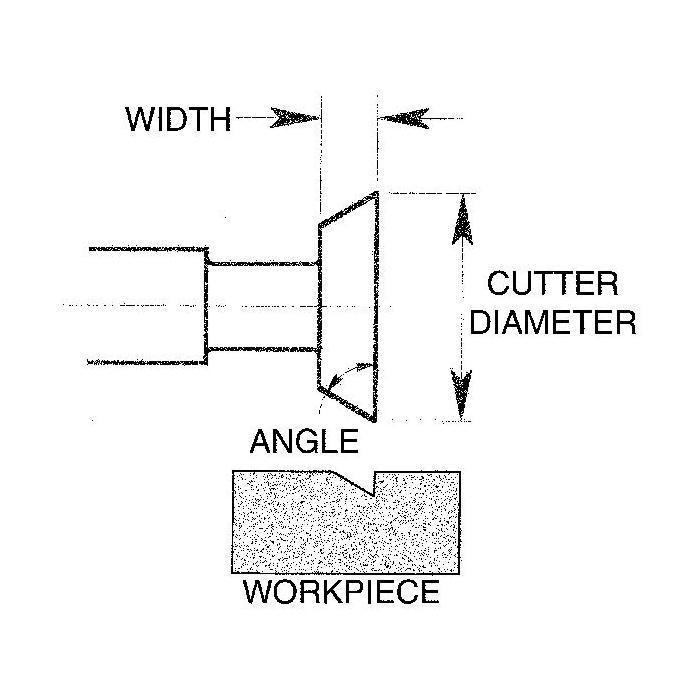

Cutter Diameter      :      1-1/2 in
Material      :      High Speed Steel - Carbide Tipped
Number of Teeth      :      4
Overall Length      :      3-1/4 in
Shank Diameter      :      3/4 in
Shank Type      :      Straight
Type      :      High Speed Steel Carbide Tipped Dovetail Cutter
  • Face Width: 5/8"
  • Tooth Pattern: Dovetail
  • Size Inch: 1-1/2"
  • Weight: 0.5 lb
  • Grade: C2
  • Cutter Width: 5/8"
  • Style: Single Angle Dovetail
  • Included Angle: 60 deg
  • For all dovetail work, production and toolroom work.
