EREM-670EP

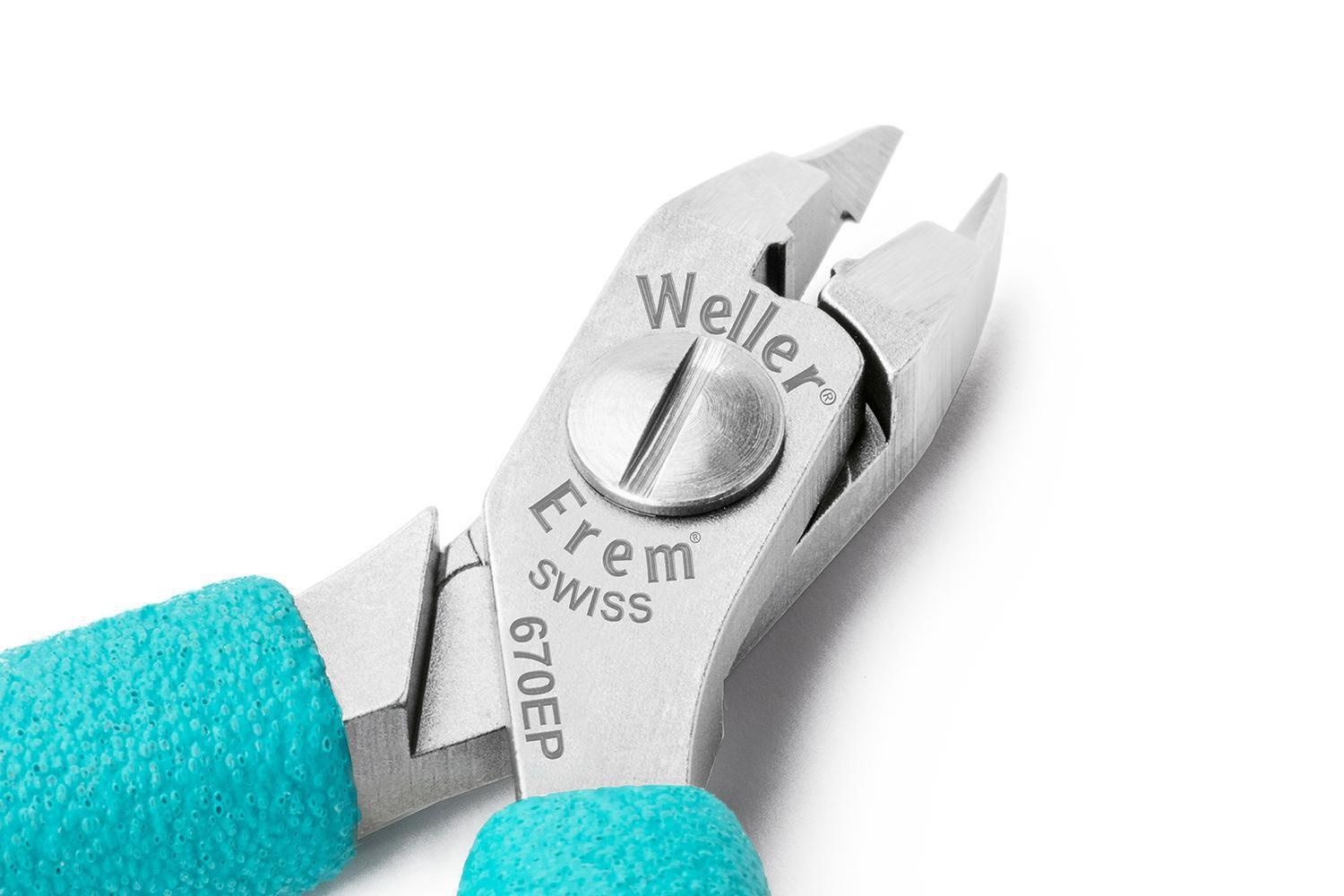

Weller® 670EP 600 Micro Miniature Tip Cutter, 0.5 mm Medium Hardness/0.6 mm Copper Wire THK Max Wire, 0.709 in L x 0.354 in W x 0.236 in THK Tool Steel Straight Short Relieved Jaw, 4.331 in OAL
- Manufacturer: Apex Tool Group
- Brand Name: Weller®
- Part Number: EREM-670EP
- MPN: 670EP
- UPC: 043127077333
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:
The Weller Erem Series 600 Micro is a range of miniature precision cutters that offers a wide variety of head shapes for access in difficult to reach areas. These micro cutters are suitable for SMD and leads (670EP, 670EPF). The cutters are made from high grade tool steel with cutting edges hardened to over 60HRc. The precision cutters have a nonreflecting surface, are ESD safe and resharpenable.
Weller® Tip Cutter, Miniature, Series, Jaw Type, 0.709 in L x 0.354 in W x 0.236 in THK Jaw, Jaw Material, 0.5 mm Medium Hardness/0.6 mm Copper Wire For Maximum Wire Thickness, Cut Type, 4.331 Overall Length, Handle Type in, Handle Material, Insulated, Anti-Glare Coated, Color, Applicable Materials: Copper Wire
| Applicable Materials | : | Copper Wire |
| Finish | : | Anti-Glare Coated |
| For Maximum Wire Thickness | : | 0.5 mm Medium Hardness/0.6 mm Copper Wire |
| Handle Material | : | Foam |
| Jaw Material | : | Tool Steel |
| Jaw Size | : | 0.709 in L x 0.354 in W x 0.236 in THK |
| Jaw Type | : | Straight Short Relieved |
| Overall Length | : | 4.331 in |
| Series | : | 600 Micro |
| Type | : | Miniature |

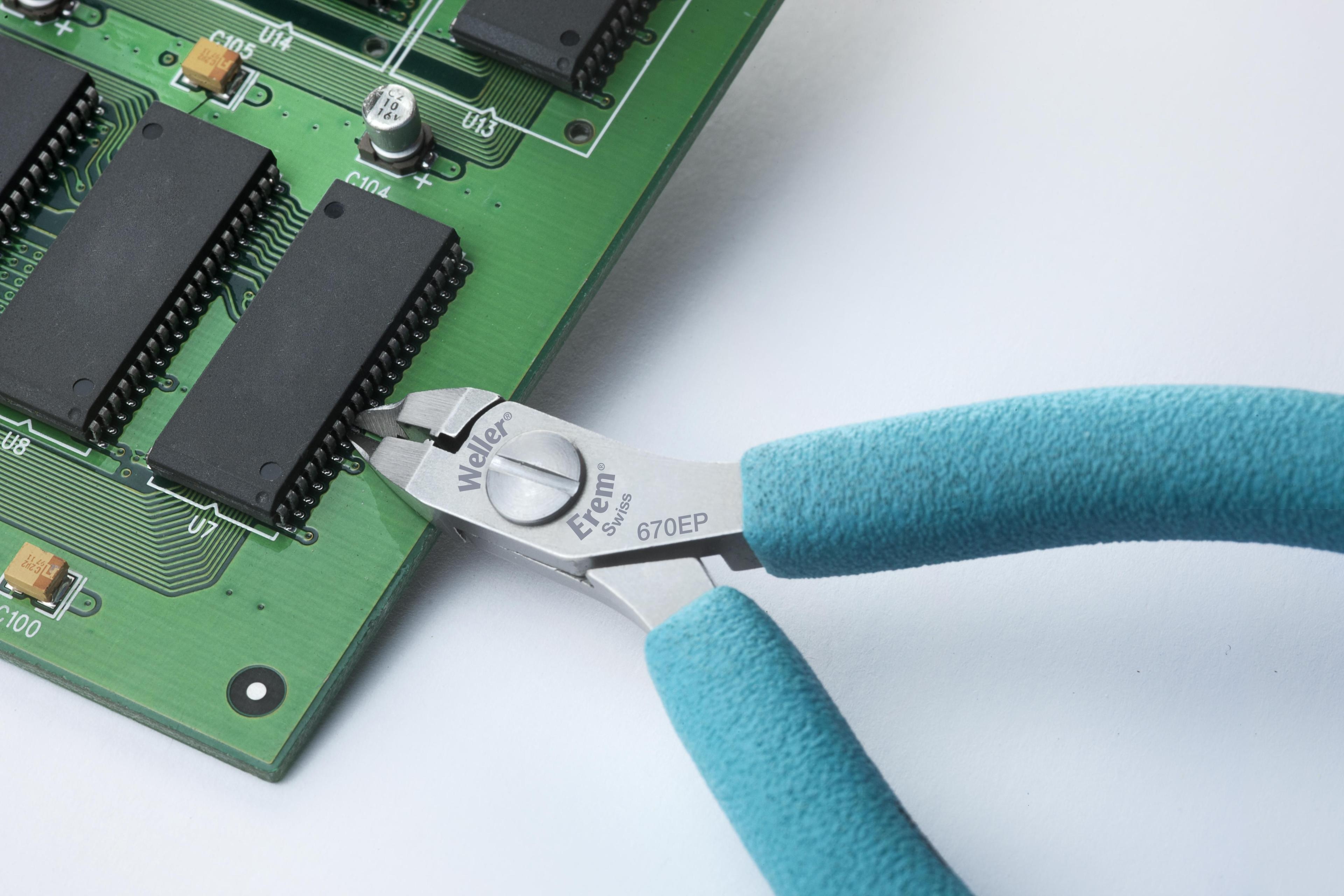

- Suitable for cutting SMD and micro-package contacts
- High-precision tip cutter
- For connections of SMD micro-packages up to 0.25 mm / .010 in, also for pitches smaller than 1/20 in
