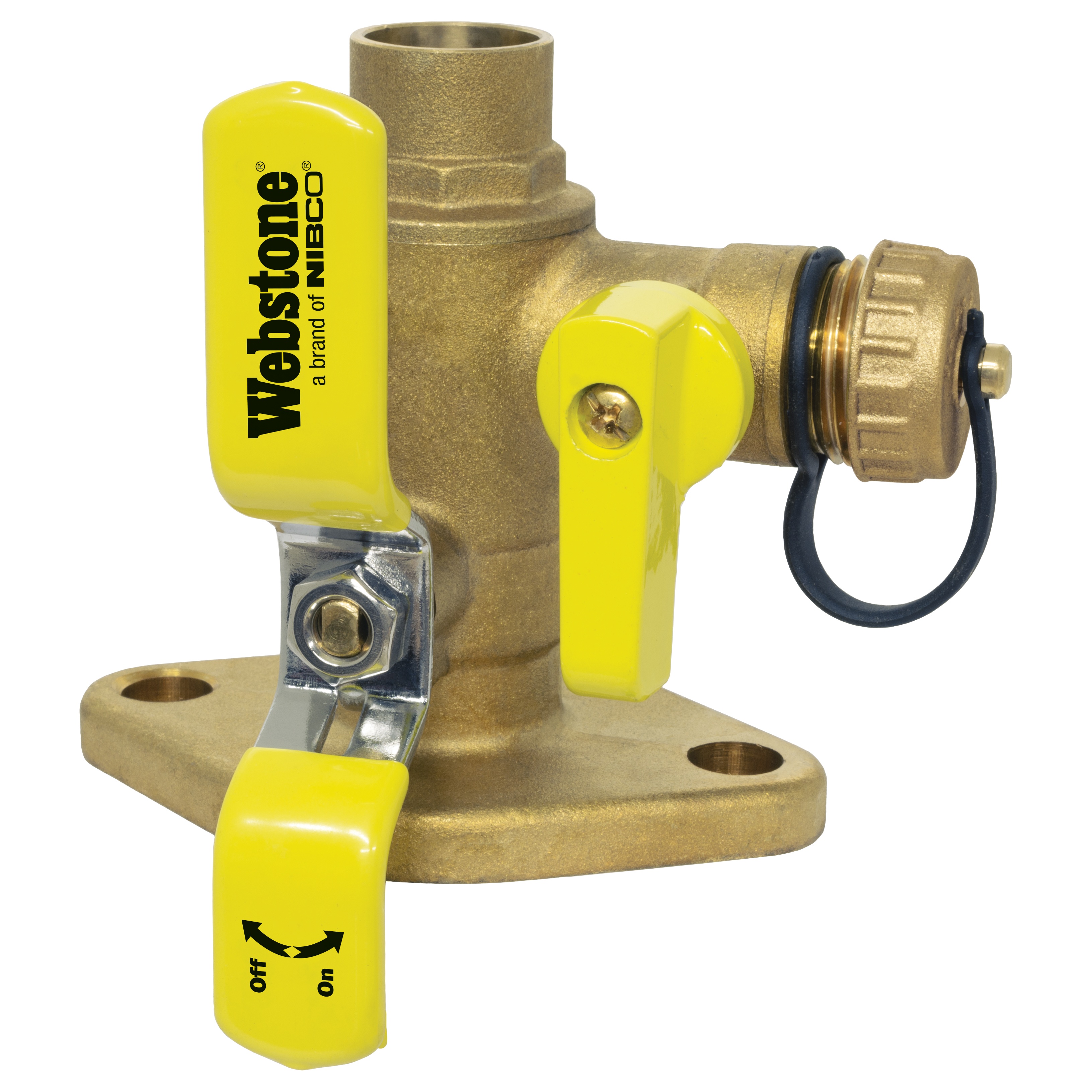

Webstone The Isolator® 40415 4041 Standard Uni-Flange Ball Valve, 1-1/4 in Nominal, FNPT x Flange End Style, Forged Brass Body, Full Port, EPDM/PTFE Softgoods, Import

  • Manufacturer: NIBCO Inc.
  • Brand Name: Webstone
  • Part Number: 366226
  • MPN: 40415
  • UPC: 018394404151
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. Threaded ends comply with ANSI B1.20.1.

Webstone The Isolator®, 40415, Ball Valve, Standard Uni-Flange, Series: 4041, 1-1/4 in Nominal, FNPT x Flange End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1-1/4 in Orifice, Wing Style T-Handle Actuator, 4-7/16 in Inlet to Outlet Length, 2-7/8 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, Import

Actuator Type      :      Wing Style T-Handle
Ball Material      :      HCP Brass
Body Material      :      Forged Brass
Color      :      Brass
Domestic/Import      :      Import
End Style      :      FNPT x Flange
Inlet to Outlet Length      :      4-7/16 in
Media      :      Glycol Mixture/Oil/Water
Nominal Size      :      1-1/4 in
Orifice Size      :      1-1/4 in
Port Type      :      Full
Pressure Rating      :      600 psi CWP
Series      :      4041
Softgoods Material      :      EPDM/PTFE
Temperature Rating      :      100 deg F
Top to Inlet Center      :      2-7/8 in
Trim Material      :      Brass/PTFE
Type      :      Standard Uni-Flange
  • Easily Isolates the Pump for Replacement
  • Prevents Electrolysis and Eliminates Galvanic Corrosion
  • Flange Features a Conical Inlet to Minimize Turbulence
  • Multi-Function Drain Makes the Isolator the Only Valve That Drains From Either Side of the Pump
  • Fits Virtually Any Standard Circulator Pump
  • Saves 63 min
  • Replaces 8 Components
  • This valve is actuated by a blowout proof stem
