TPI HDH30

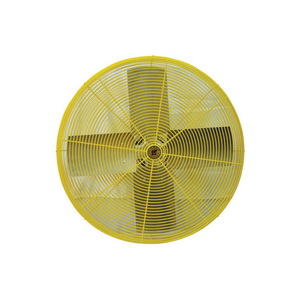

TPI HDH30 1-Phase Heavy Duty Standard Air Circulator Fan Head, 30 in Blade, 6800 cfm High, 6000 cfm Low Flow Rate, 120 V AC, 4 A

  • Manufacturer: TPI Corporation
  • Brand Name: TPI
  • Part Number: TPI HDH30
  • MPN: HDH30
  • UPC: 686334796088
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

TPI Air Circulator Fan Head, 1-Phase Heavy Duty Standard, 30 in Blade, 6800 cfm High, 6000 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/2 hp Power, 120 V AC, 4 A, 2 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Steel Housing Material, Ceiling/I-Beam/Surface Mounting, SJT 12 ft Cord, 33-1/2 in Dia x 14-1/2 in D Dimensions, Domestic

Amperage Rating      :      4 A
Blade Material      :      Aluminum
Blade Size      :      30 in
Blade Type      :      Paddle
Control Type      :      Pull Chain
Cord Type      :      SJT 12 ft
Dimensions      :      33-1/2 in Dia x 14-1/2 in D
Domestic/Import      :      Domestic
Flow Rate      :      6800 cfm High, 6000 cfm Low
Housing Material      :      Steel
Motor Type      :      Split Capacitor
Mounting Type      :      Ceiling/I-Beam/Surface
Number of Speeds      :      2
Power Rating      :      1/2 hp
Speed      :      1100 rpm High, 800 rpm Low
Type      :      1-Phase Heavy Duty Standard
Voltage Rating      :      120 V AC
  • SJT type 3 conductor, 12 ft L cord
  • Steel hub/spider aluminum paddle blades
  • Powder coated steel guards
  • Permanent split capacitor, ball bearing, totally enclosed and permanently lubricated motor
  • #48 motor frame
  • 1/2 in Dia shaft motor
  • Motor drive
  • Pedestal pole adjusts the center of the fan from 48 to 67 in
  • Pedestal steel dome base is 27 in Dia and has 5 carriage bolts
  • 8000 cfm/270 sq-ft area velocity profile
  • Flow rate is measured 2 ft from face of fan
