3M™ Temflex™ Vinyl Electrical Tape 1776 is a good-quality, economical, general-purpose vinyl insulating tape manufactured in the U.S.A. It has excellent resistance to abrasion, moisture, alkalies, acid, copper, corrosion and varying weather conditions. As a polyvinyl chloride (PVC) tape that is flame-retardant and conformable, it provides excellent mechanical protection with minimum bulk. 3M™ Temflex™ Vinyl Electrical Tape 1776 is UL listed, CSA certified “Insulating Tape", and RoHS compliant; for more compliance information, visit www.3M.com/regs.
Temflex™, 7010398066, Tape, Series: 1776, 20 yd Length, 0.75 in Width, 7 mil Thickness, Vinyl, Black, 1-1/2 in Diameter Core, Rubber Adhesive, Specifications Met: UL Listed/CSA Certified Insulating Tape
| Adhesion Strength | : | 24 in-oz |
| Adhesive Material | : | Rubber |
| Backing Material | : | Vinyl |
| Color | : | Black |
| Core Diameter | : | 1-1/2 in |
| Dielectric Strength | : | 1000 V/mil |
| Length | : | 20 yd |
| Material Type | : | Vinyl |
| Maximum Operating Temperature | : | 176 deg F |
| Minimum Operating Temperature | : | 32 deg F |
| Series | : | 1776 |
| Specifications Met | : | UL Listed/CSA Certified Insulating Tape |
| Tensile Strength | : | 17 in-lb |

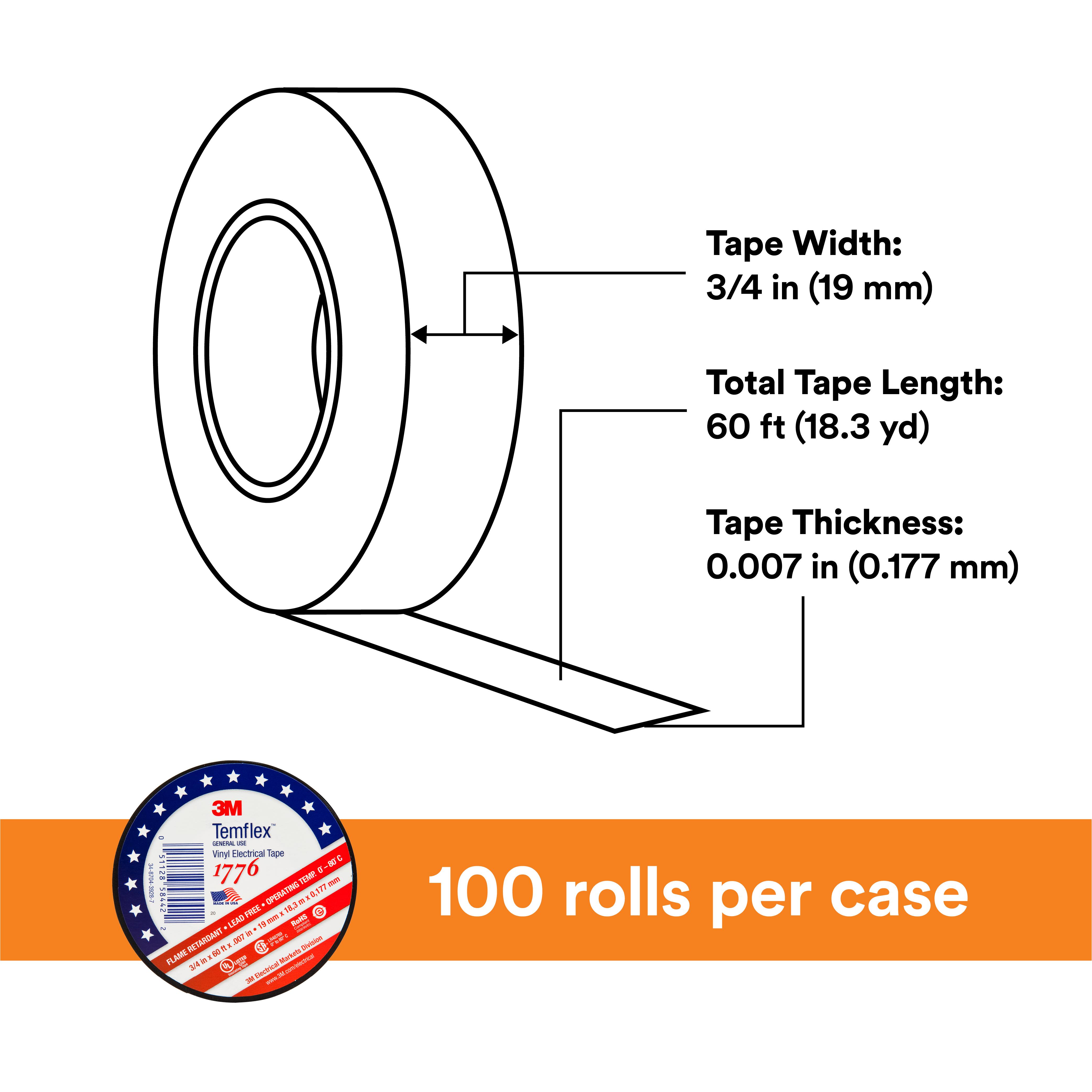

| Thickness | : | 7 mil |
| Type | : | General Grade |
| Width | : | 0.75 in |

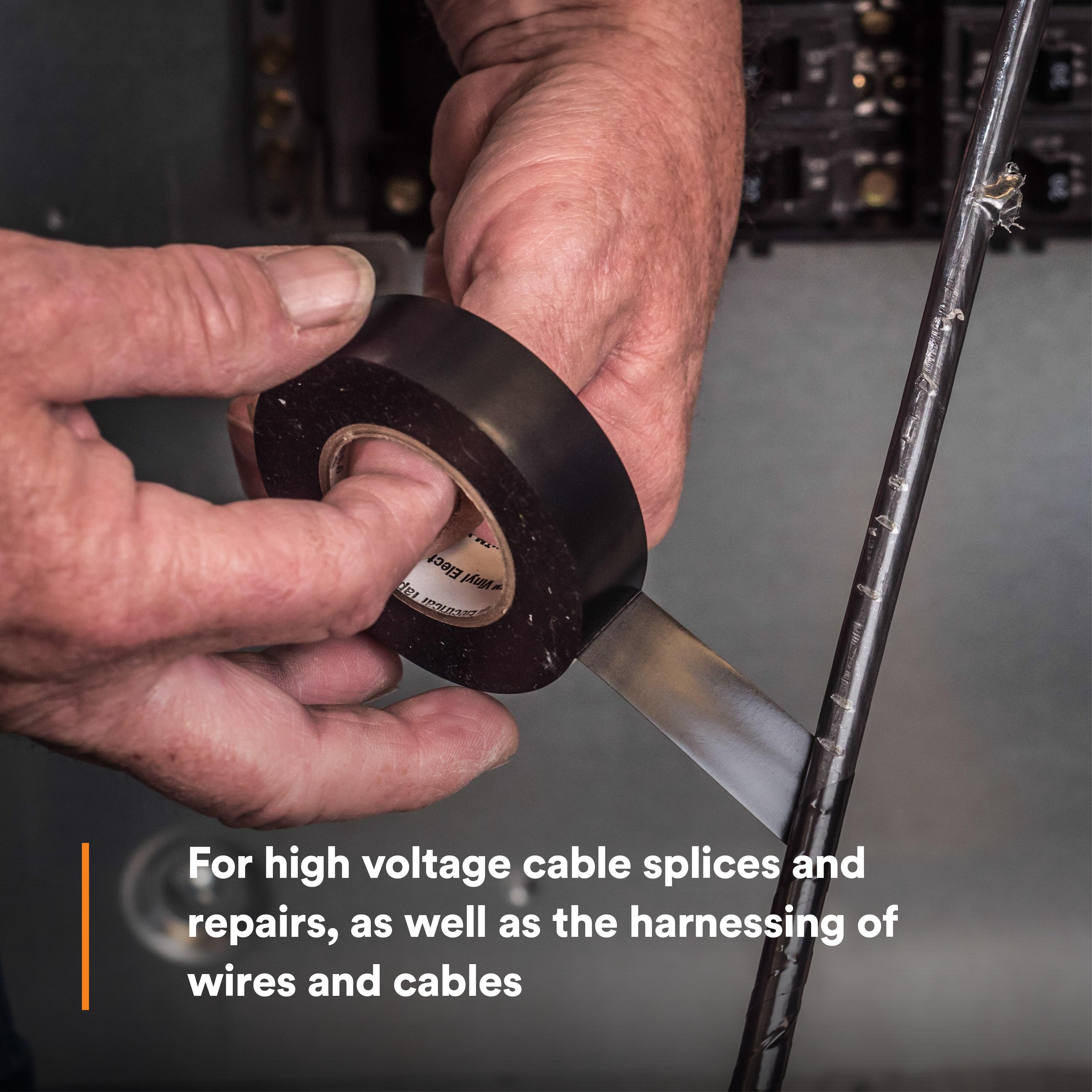

- PROTECTIVE JACKETING - For high voltage cable splices and repairs, as well as the harnessing of wires and cables

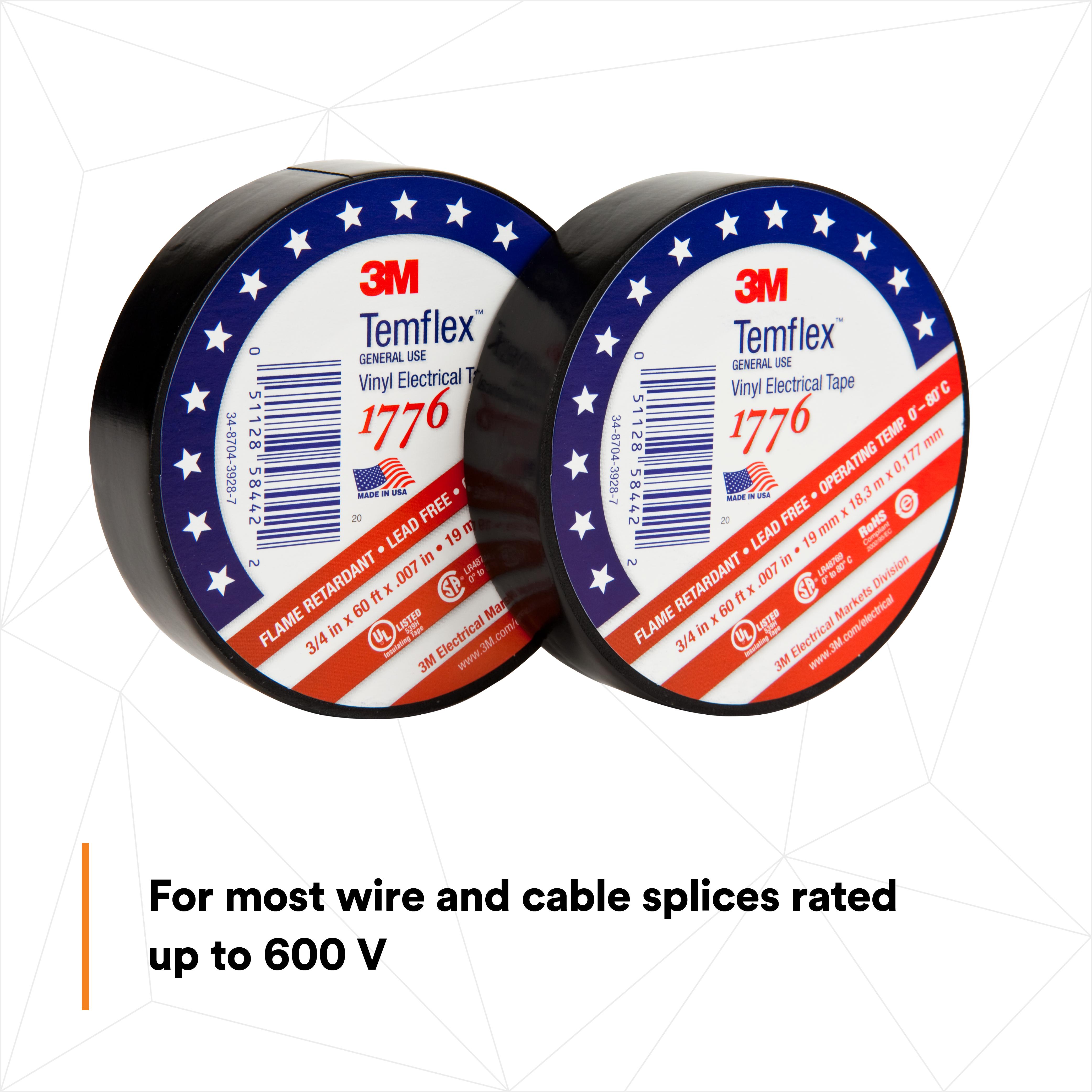

- PRIMARY ELECTRICAL INSULATION - For most wire and cable splices rated up to 600 V

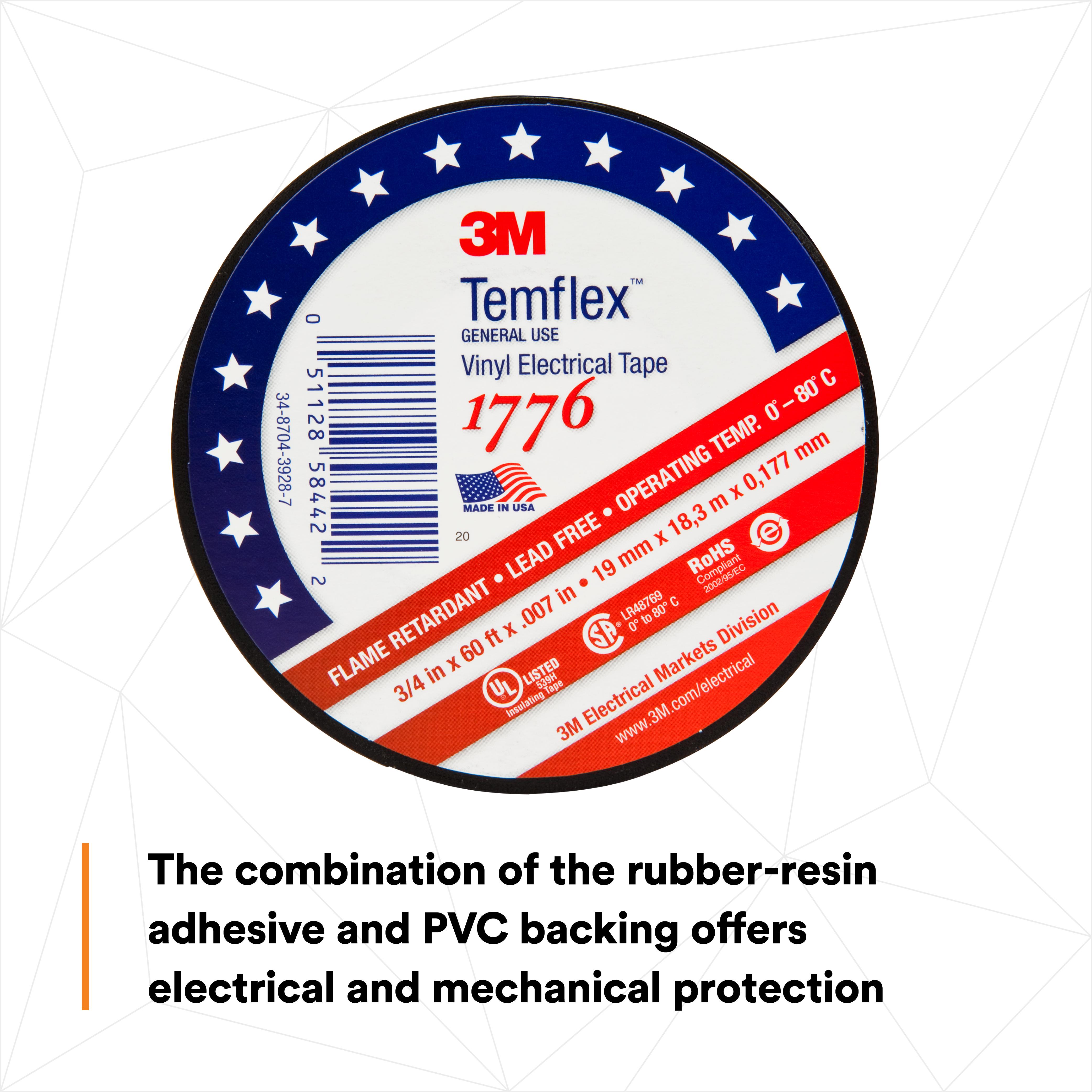

- DURABLE PVC - The combination of the rubber-resin adhesive and PVC backing offers electrical and mechanical protection
