SUM 19RB297
SUMITOMO VNMG332ENG-AC830P Turning Insert, ANSI Code: VNMG332ENG-AC830P, VNMG Insert, Material Grade: P, 332 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: AC830P
- Manufacturer: Sumitomo Electric Industries
- Brand Name: SUMITOMO
- Part Number: SUM 19RB297
- MPN: VNMG332ENG-AC830P
- UOM: EA
- Min. Order Qty: 10
- Qty. Interval: 10
-
Available at Reynolds & Son, Inc - So Barre
-
Price:

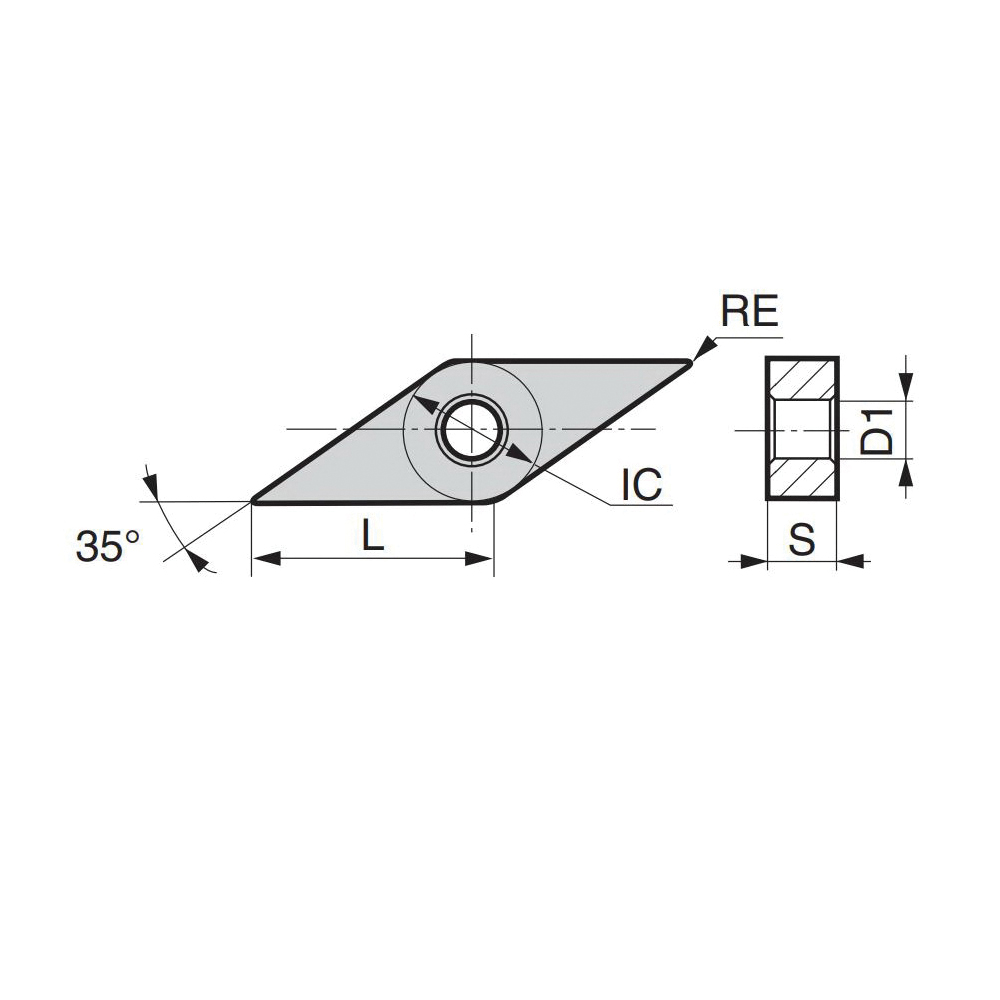

SUMITOMO Turning Insert, VNMG Insert, 332 Insert, Diamond, 3/8 in Inscribed Circle, 3/16 in Thickness, 16 Seat, Negative Rake, ENG Chipbreaker, 1/32 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: AC830P, ANSI Code: VNMG332ENG-AC830P, ISO Code: VNMG160408N-UG-AC830P, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3, Material Grade: P, For Use On: Steel
| ANSI Code | : | VNMG332ENG-AC830P |
| Chipbreaker | : | ENG |
| Corner Radius | : | 1/32 in |
| Cutting Direction | : | Neutral |
| Finish | : | TiCN/Al2O3 |
| For Use On | : | Steel |
| Hole Diameter | : | 0.15 in |
| ISO Code | : | VNMG160408N-UG-AC830P |
| Included Angle | : | 35 deg |
| Inscribed Circle | : | 3/8 in |
| Insert Size | : | 332 |
| Insert Style | : | VNMG |
| Manufacturer's Grade | : | AC830P |
| Material Grade | : | P |
| Material | : | Carbide |
| Rake | : | Negative |
| Relief Angle | : | 0 deg |
| Seat Size | : | 16 |
| Shape | : | Diamond |
| Thickness | : | 3/16 in |
- AC830P grade stable long life grade employs special tough, carbide substrate and super FF coated
- Improves on P30 grade fracture resistance and approaches P20 grade in terms of wear resistance
