SUM 19JQAFC
SUMITOMO TNMG432EMU-AC810P Turning Insert, ANSI Code: TNMG432EMU-AC810P, TNMG Insert, Material Grade: P, 432 Insert, Triangular Shape, 22 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: AC810P
- Manufacturer: Sumitomo Electric Industries
- Brand Name: SUMITOMO
- Part Number: SUM 19JQAFC
- MPN: TNMG432EMU-AC810P
- UOM: EA
- Min. Order Qty: 10
- Qty. Interval: 10
-
Available at Reynolds & Son, Inc - So Barre
-
Price:

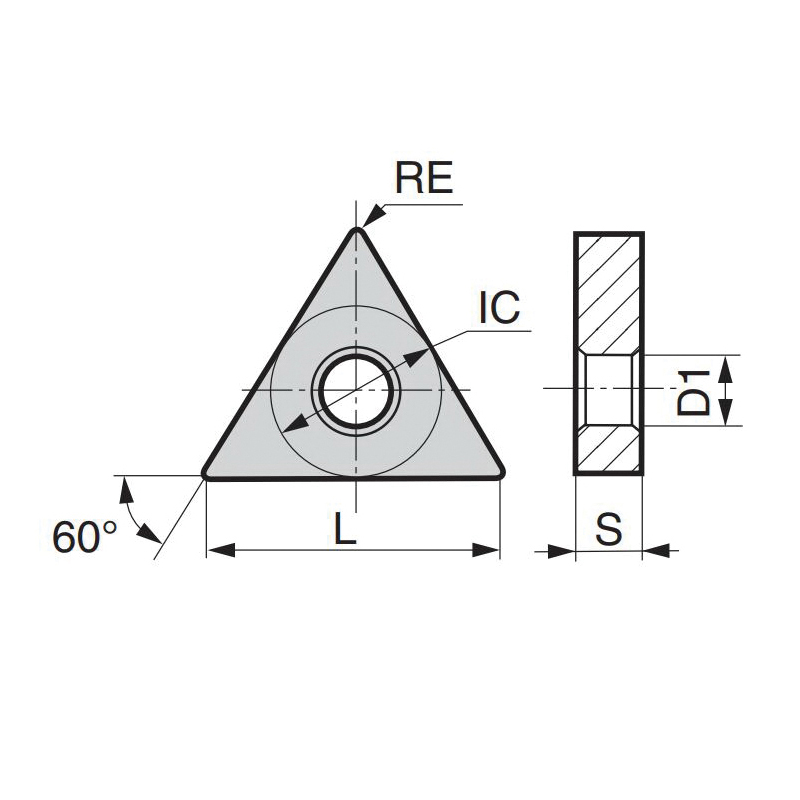

SUMITOMO Turning Insert, TNMG Insert, 432 Insert, Triangular, 1/2 in Inscribed Circle, 3/16 in Thickness, 22 Seat, Negative Rake, EMU Chipbreaker, 1/32 in Corner Radius, 0.2031 in Hole Dia, Manufacturer's Grade: AC810P, ANSI Code: TNMG432EMU-AC810P, ISO Code: TNMG220408N-MU-AC810P, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3, Material Grade: P, For Use On: Steel
| ANSI Code | : | TNMG432EMU-AC810P |
| Chipbreaker | : | EMU |
| Corner Radius | : | 1/32 in |
| Cutting Direction | : | Neutral |
| Finish | : | TiCN/Al2O3 |
| For Use On | : | Steel |
| Hole Diameter | : | 0.2031 in |
| ISO Code | : | TNMG220408N-MU-AC810P |
| Included Angle | : | 60 deg |
| Inscribed Circle | : | 1/2 in |
| Insert Size | : | 432 |
| Insert Style | : | TNMG |
| Manufacturer's Grade | : | AC810P |
| Material Grade | : | P |
| Material | : | Carbide |
| Rake | : | Negative |
| Relief Angle | : | 0 deg |
| Seat Size | : | 22 |
| Shape | : | Triangular |
| Thickness | : | 3/16 in |
- AC810P grade a new P10 grade with excellent wear resistance that features stability and longer tool life
- Utilizes a special carbide substrate with super FF coat for high to medium speed cutting
