SUMITOMO CCMT21.51ESU-AC630M SUM 19PWBPC
  1. pin-int

SUM 19PWBPC

SUMITOMO CCMT21.51ESU-AC630M Turning Insert, ANSI Code: CCMT21.51ESU-AC630M, CCMT Insert, Material Grade: M, P, 21.51 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Steel, Carbide

  • Manufacturer: Sumitomo Electric Industries
  • Brand Name: SUMITOMO
  • Part Number: SUM 19PWBPC
  • MPN: CCMT21.51ESU-AC630M
  • UOM: EA
  • Min. Order Qty: 10
  • Qty. Interval: 10
  • loading Available at Reynolds & Son, Inc - So Barre

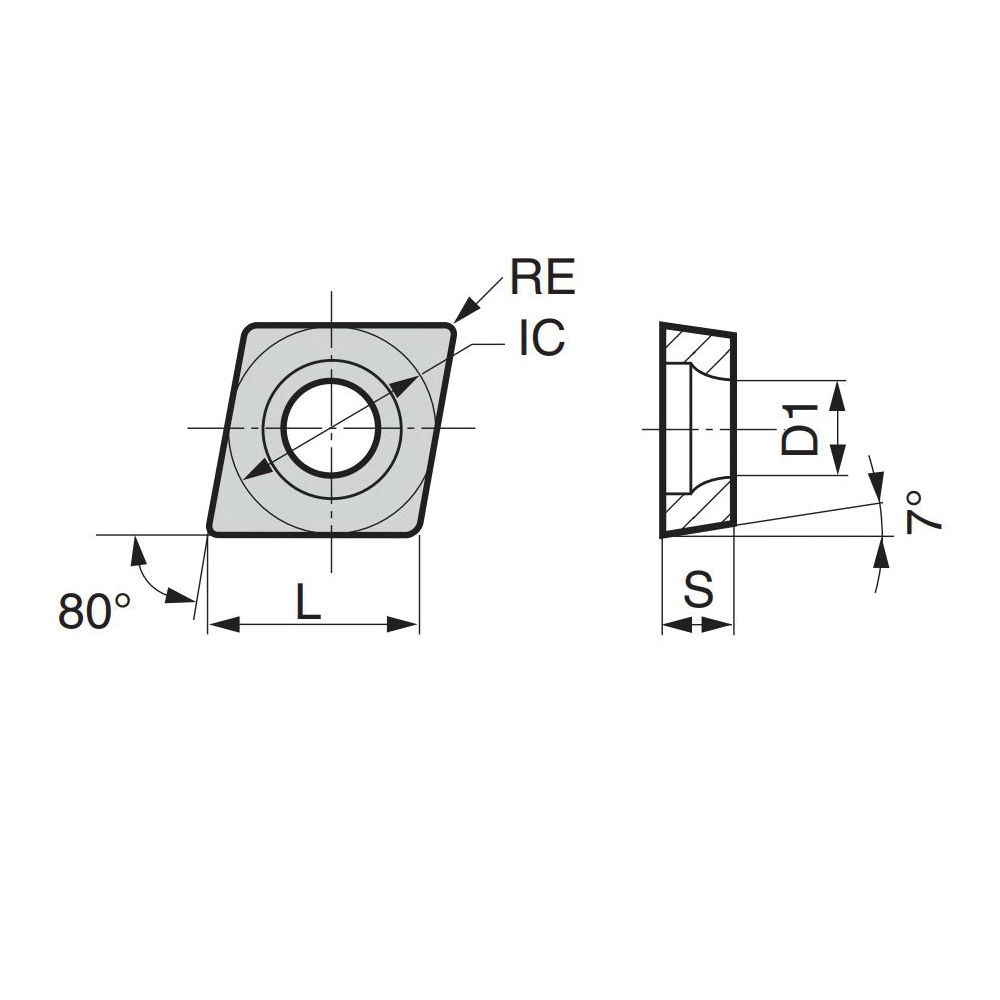

SUMITOMO Turning Insert, CCMT Insert, 21.51 Insert, Diamond, 1/4 in Inscribed Circle, 0.94 in Thickness, 06 Seat, Positive Rake, ESU Chipbreaker, 1/64 in Corner Radius, 0.11 in Hole Dia, Manufacturer's Grade: AC630M, ANSI Code: CCMT21.51ESU-AC630M, ISO Code: CCMT060204N-SU-AC630M, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, TiCN/Al2O3, Material Grade: M, P, For Use On: Stainless Steel and Steel

ANSI Code      :      CCMT21.51ESU-AC630M
Chipbreaker      :      ESU
Corner Radius      :      1/64 in
Cutting Direction      :      Neutral
Finish      :      TiCN/Al2O3
For Use On      :      Stainless Steel and Steel
Hole Diameter      :      0.11 in
ISO Code      :      CCMT060204N-SU-AC630M
Included Angle      :      80 deg
Inscribed Circle      :      1/4 in
Insert Size      :      21.51
Insert Style      :      CCMT
Manufacturer's Grade      :      AC630M
Material Grade      :      M, P
Material      :      Carbide
Rake      :      Positive
Relief Angle      :      7 deg
Seat Size      :      06
Shape      :      Diamond
Thickness      :      0.94 in
  • AC630M grade superior performance in continuous and light cutting and other low speed applications that require sharp edges
