SUMITOMO 4NC-DNGA432-BNC200 SUM 16DTCEE
  1. pin-int

SUM 16DTCEE

SUMITOMO 4NC-DNGA432-BNC200 SUMIBORON Multi-Cornered One-Use Standard Edge Turning Insert, ANSI Code: 4NC-DNGA432-BNC200, DNGA Insert, Material Grade: H, 432 Insert, Diamond Shape, 15 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steel, PCBN

  • Manufacturer: Sumitomo Electric Industries
  • Brand Name: SUMITOMO
  • Part Number: SUM 16DTCEE
  • MPN: 4NC-DNGA432-BNC200
  • UOM: EA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

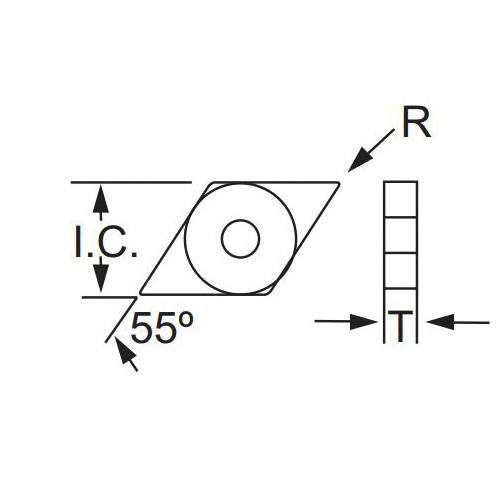

SUMITOMO Turning Insert, Multi-Cornered One-Use Standard Edge, Series: SUMIBORON, DNGA Insert, 432 Insert, Diamond, 1/2 in Inscribed Circle, 3/16 in Thickness, 15 Seat, Negative Rake, 1/32 in Corner Radius, 0.2031 in Hole Dia, Manufacturer's Grade: BNC200, ANSI Code: 4NC-DNGA432-BNC200, ISO Code: 4NC-DNGA150408-BNC200, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, PCBN, TiAlN, Material Grade: H, For Use On: Hardened Steel

ANSI Code      :      4NC-DNGA432-BNC200
Corner Radius      :      1/32 in
Cutting Direction      :      Neutral
Finish      :      TiAlN
For Use On      :      Hardened Steel
Hole Diameter      :      0.2031 in
ISO Code      :      4NC-DNGA150408-BNC200
Included Angle      :      55 deg
Inscribed Circle      :      1/2 in
Insert Size      :      432
Insert Style      :      DNGA
Manufacturer's Grade      :      BNC200
Material Grade      :      H
Material      :      PCBN
Rake      :      Negative
Relief Angle      :      0 deg
Seat Size      :      15
Series      :      SUMIBORON
Shape      :      Diamond
Thickness      :      3/16 in
Type      :      Multi-Cornered One-Use Standard Edge
  • BNC200 grade tough substrate with high wear-resistant coating provide longer tool life
