SUMITOMO 2NC-DCGA32.51-BNC200 SUM 16DTAEU
  1. pin-int

SUM 16DTAEU

SUMITOMO 2NC-DCGA32.51-BNC200 SUMIBORON Turning Insert, ANSI Code: 2NC-DCGA32.51-BNC200, DCGA Insert, Material Grade: H, 32.51 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Hardened Steel, PCBN, Manufacturer's Grade: BNC200

  • Manufacturer: Sumitomo Electric Industries
  • Brand Name: SUMITOMO
  • Part Number: SUM 16DTAEU
  • MPN: 2NC-DCGA32.51-BNC200
  • UOM: EA
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

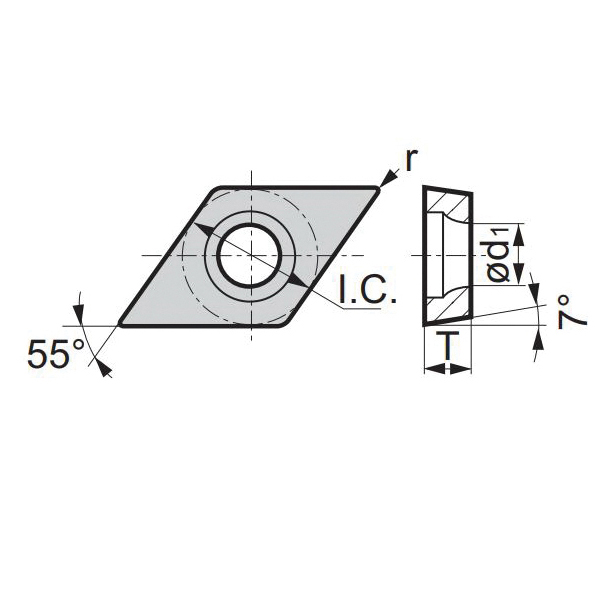

SUMITOMO Turning Insert, Series: SUMIBORON, DCGA Insert, 32.51 Insert, Diamond, 0.015 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 11 Seat, Positive Rake, 1/64 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: BNC200, ANSI Code: 2NC-DCGA32.51-BNC200, ISO Code: 2NC-DCGW11T304-BNC200, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, PCBN, TiAlN, Material Grade: H, For Use On: Hardened Steel

ANSI Code      :      2NC-DCGA32.51-BNC200
Corner Radius      :      1/64 in
Cutting Direction      :      Neutral
Finish      :      TiAlN
For Use On      :      Hardened Steel
Hole Diameter      :      0.1732 in
ISO Code      :      2NC-DCGW11T304-BNC200
Included Angle      :      55 deg
Inscribed Circle      :      3/8 in
Insert Size      :      32.51
Insert Style      :      DCGA
Manufacturer's Grade      :      BNC200
Material Grade      :      H
Material      :      PCBN
Maximum Depth of Cut      :      0.015 in
Rake      :      Positive
Relief Angle      :      7 deg
Seat Size      :      11
Series      :      SUMIBORON
Shape      :      Diamond
Thickness      :      0.156 in
  • BNC200 grade tough substrate with high wear-resistant coating provide longer tool life
