STAR-64610

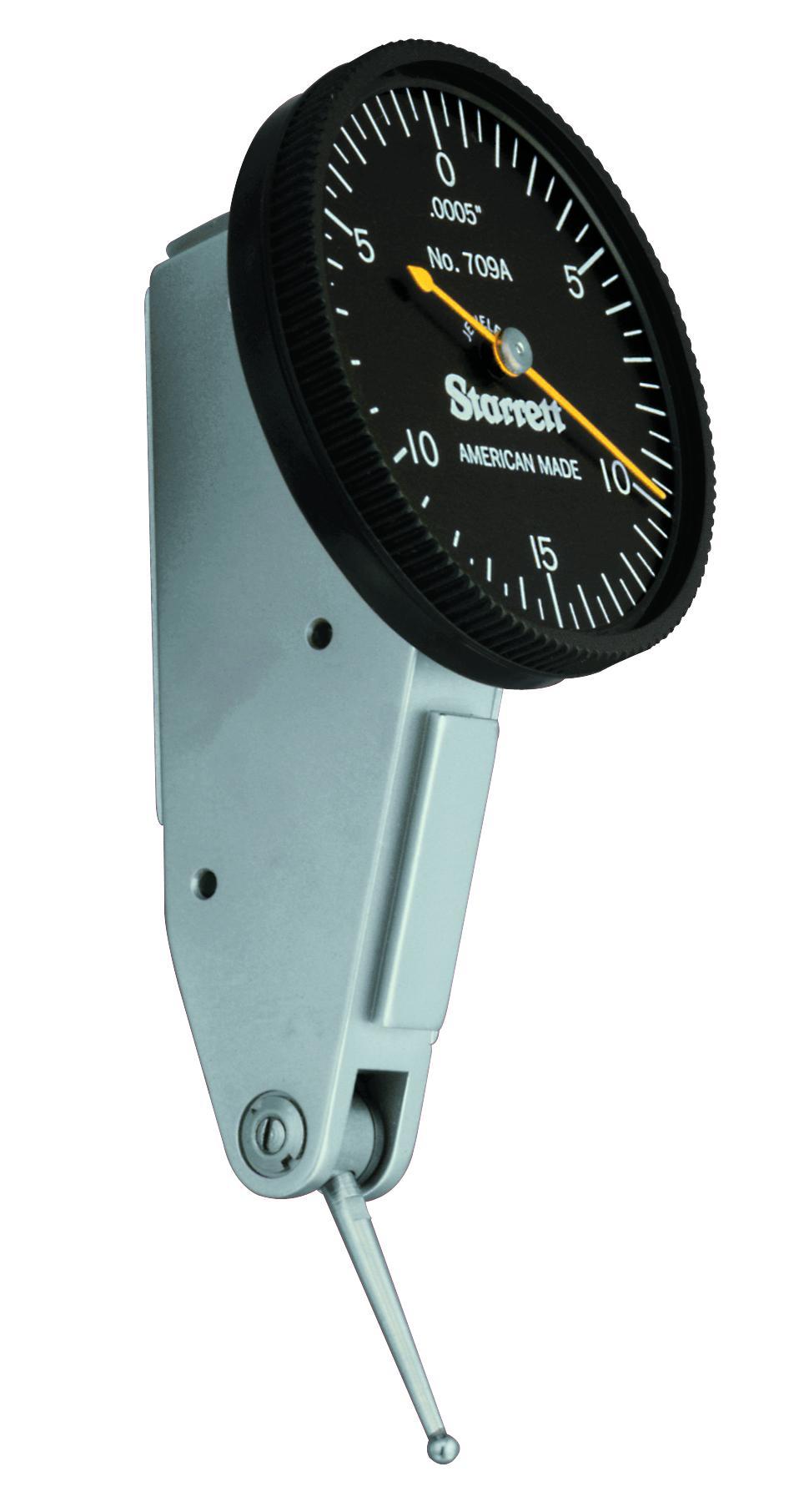

Starrett® B709ACZ Dial Test Indicator With Dovetail Mounts, 0.03 in Measuring, 0 to 15 to 0 Dial Reading, Graduations 0.0005 in, 1-3/8 in Dial, 13/16 in L Tip
- Manufacturer: L.S. Starrett
- Brand Name: Starrett®
- Part Number: STAR-64610
- MPN: B709ACZ
- UPC: 049659646108
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: EACH
-
Price:

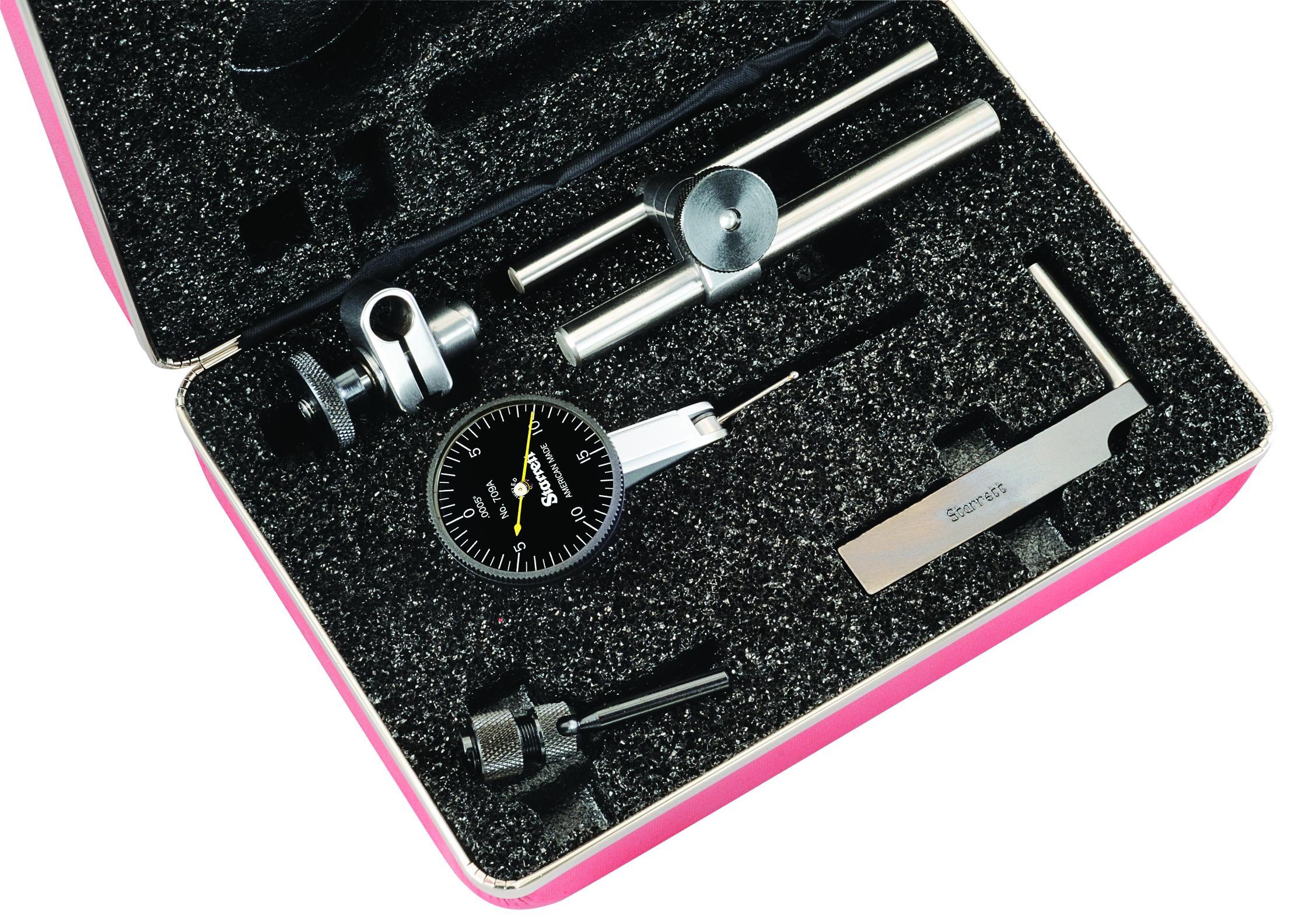

The Starrett 709 precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts. Black Dial, .030" Range, .0005" Grad, with Attachments.
Starrett® Dial Test Indicator, Series: 709 Series, 0.03 in Measuring, 0 to 15 to 0 Dial Reading, Graduations: 0.0005 in, 1-3/8 in Dial, Black Dial, 13/16 in L Tip, 0.078 in Diameter Ball, Steel, Satin Chrome
| Ball Diameter | : | 0.078 in |
| Dial Color | : | Black |
| Dial Reading | : | 0 to 15 to 0 |
| Dial Size | : | 1-3/8 in |
| Finish | : | Satin Chrome |
| Graduations | : | 0.0005 in |
| Material | : | Steel |
| Measuring Range | : | 0.03 in |
| Series | : | 709 Series |
| Tip Size | : | 13/16 in L |
- These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts
- Precision gear-driven design with smooth, jeweled movement
- Contact point reverses automatically, always maintaining clockwise hand rotation
- Contacts are frictionally adjustable and replaceable
- Inch reading indicators are available with easy-to-read, shaded white, red, or black dials - millimeter reading indicators with yellow dials
- Angled head for better reading position
- Narrow body for inreach ability
