Starrett® 795XFL-1 STAR-67827
  1. pin-int

STAR-67827

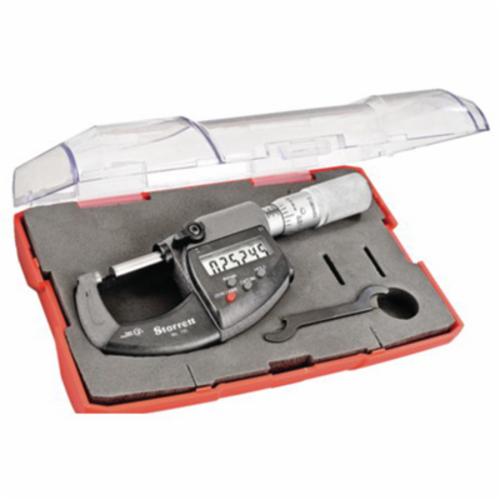

Starrett® 795XFL-1 Electronic Digital Outside Micrometer, 0 to 1 in Measuring, Graduations 0.00005 in, LCD Display, Carbide Tip, Satin Chrome

  • Manufacturer: L.S. Starrett
  • Brand Name: Starrett®
  • Part Number: STAR-67827
  • MPN: 795XFL-1
  • UPC: 049659678277
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Starrett® Outside Micrometer, Electronic Digital, Series: 795, 0 to 1 in Measuring, +/-0.0001 in Accuracy, Graduations: 0.00005 in, 0.00005 in Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Diameter, Friction Thimble, LCD Display, 3 V DC Battery Power Source, Carbide Tip, Satin Chrome, 5-13/16 in L x 47/64 in W x 2-9/32 in H Dimensions

Accuracy      :      +/-0.0001 in
Anvil Type      :      Flat
Dimensions      :      5-13/16 in L x 47/64 in W x 2-9/32 in H
Display Type      :      LCD
Finish      :      Satin Chrome
Graduations      :      0.00005 in
Material      :      Carbide Tip
Measuring Range      :      0 to 1 in
Power Source      :      3 V DC Battery
Resolution      :      0.00005 in
Series      :      795
Spindle Diameter      :      1/4 in
Spindle Type      :      Flat
Thimble Type      :      Friction
Type      :      Electronic Digital
  • IP67 protection against coolants, water, chips, dust and dirt often found in machine shop environments
  • Balanced frame design for comfortable and accurate measuring
  • Starrett no-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light
  • Compatible with starrett datasure wireless data collection systems
  • Large, easy-to-read, high contrast LCD digital readout
  • Hard and stable one-piece friction thimble permits one hand operation of micrometer and uniform contact pressure
  • Ability to zero tool at any position as well as retain and return to the true zero reading of the micrometer
  • Micro-lapped measuring faces
  • Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position
  • Spindle lock, automatic off, measurement hold button, SPC output capability
