STAR-52994

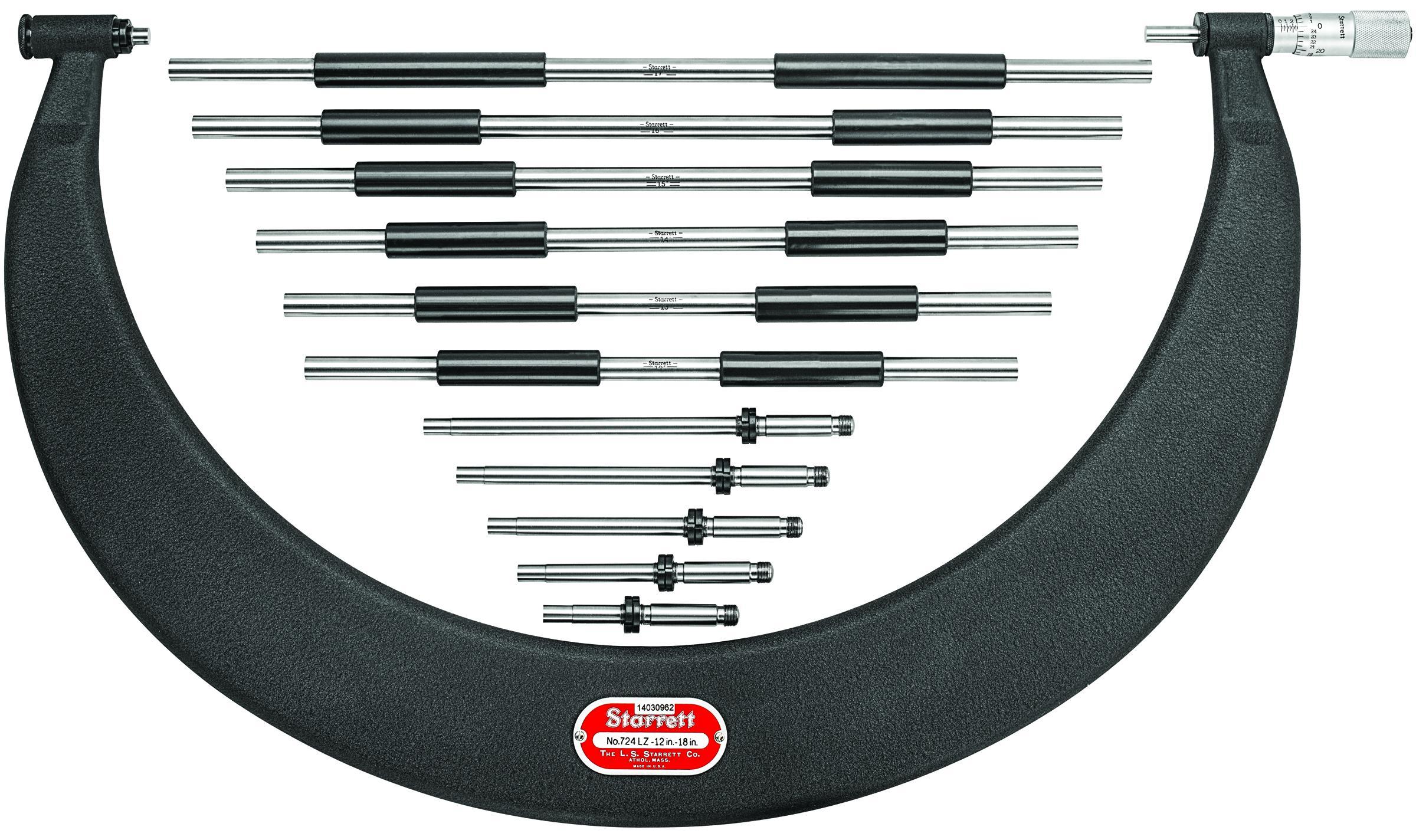

The Starrett 724, 724M Series Tubular Bow Type Micrometers with Interchangeable Anvils are made for better precision measurement of large outside dimensions. These micrometers provide perfect balance, sensitive feel, ease of handling, and less measuring effort due to their advanced tubular design. The micrometer's tubular frame provides light weight, extreme rigidity, and standard coefficient of expansion. The 724 series is well suited for diversified gaging and provides a wide range of measurement in steps of 1 inch or 25mm. This model includes these standards: 12", 13", 14", 15", 16", and 17". 12-18" Range, .001" Grad, with Lock Nut, in Case This model includes these standards: 12", 13", 14", 15", 16", and 17".

Starrett® Outside Micrometer, Interchangeable Anvil Plain Tubular Bow, Series: 724, 12 to 18 in, +/-0.0003 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, 0.3 in Spindle Dia, Friction Thimble, Steel, Satin Chrome

• Advanced sleeve design with staggered lines and distinct figures for precise, easy readability
• Balanced frame and thimble design
• Micro-lapped measuring faces
• Ring-type knurled lock nut for quick and sure locking
• Extremely hard and stable one-piece spindle

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Starrett_724LZ-18_Full_Engineering_Drawing.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Starrett_724LZ-18_Full_Engineering_Drawing.pdf
• VIDEO LINK https://youtu.be/YxX35W6VyTg
