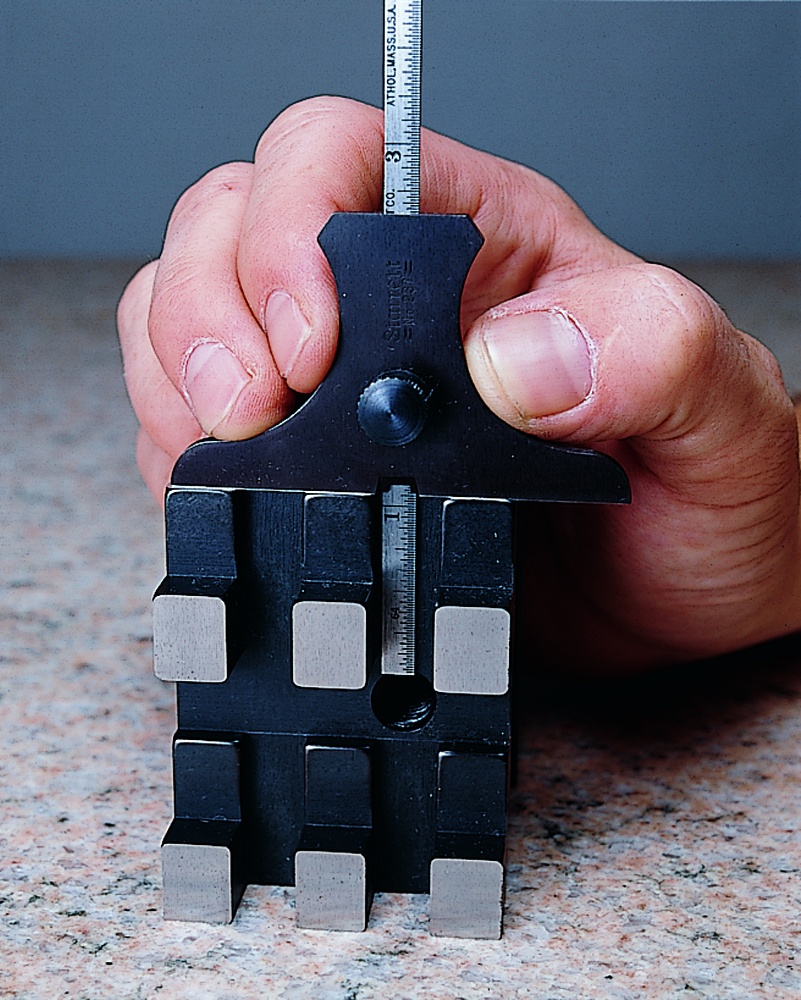

Steel Rule Depth Gage is very handy and can be used to quickly obtain measurements in 64th of an inch or 1/2mm by simply adjusting the rule to the required depth. Graduations at 32nds, and 64ths. Head Length is 2-5/8" x 1/8".
Starrett® Depth Gage, 0 to 6 in, Graduations: 32nds, 64ths, 2-5/8 in Base Length, Steel
| Base Length | : | 2-5/8 in |
| Graduations | : | 32nds, 64ths |
| Material | : | Steel |
| Measuring Range | : | 0 to 6 in |
- Gage consists of a nicely finished, hardened steel head and an accurate, machine divided, tempered steel rule
- Gage can be smoothly adjusted to the required measurement and then locked into position by a knurled nut
- Base is cut out on one side, adjacent to the rule, permitting easier readings and more accurate measurements
- 6 in hook rule also available, permitting easier readings from the edge of a workplace to the edges of the slots, and shoulders
