Starrett® 1202F-6 STAR-68931
  1. pin-int

STAR-68931

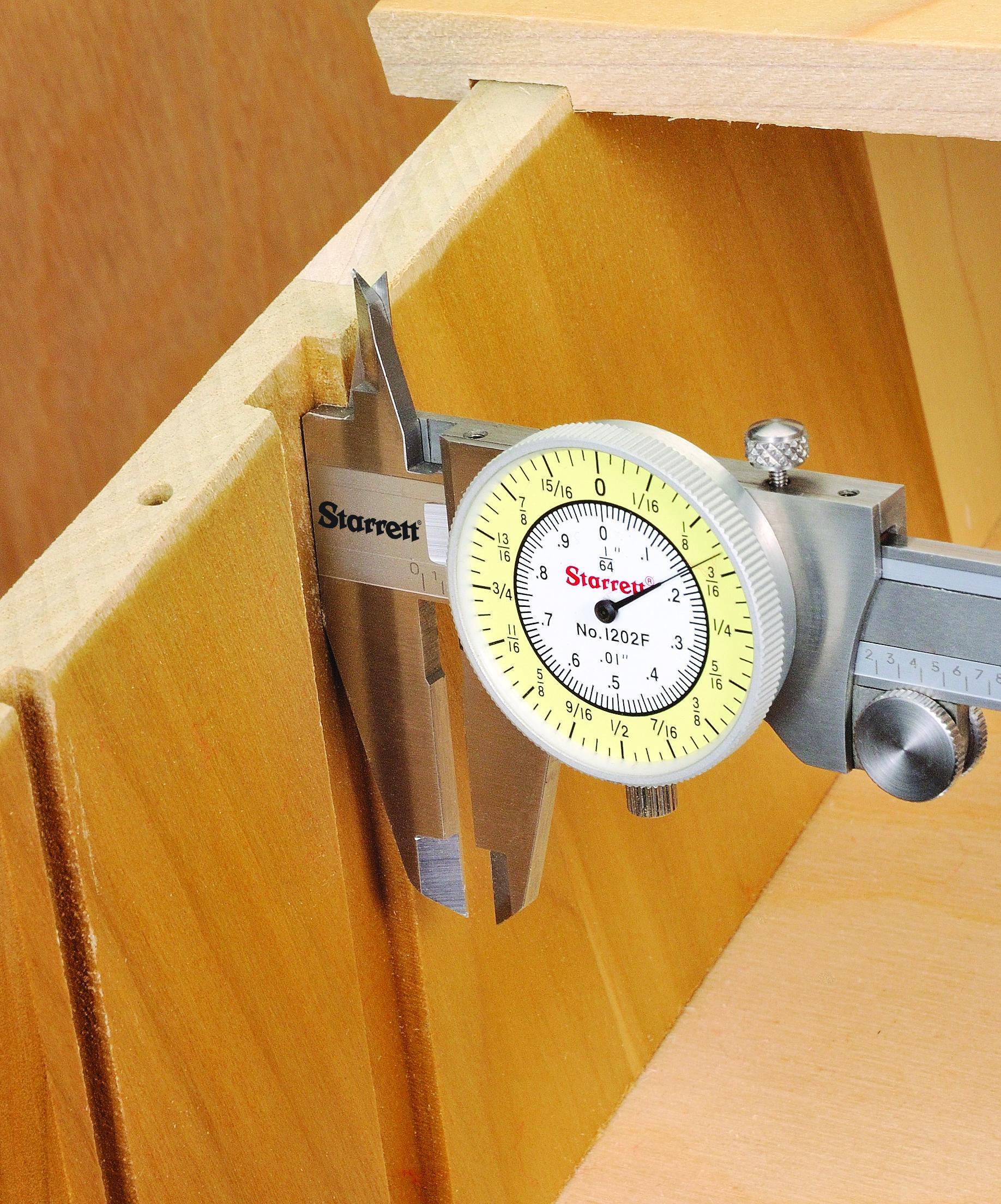

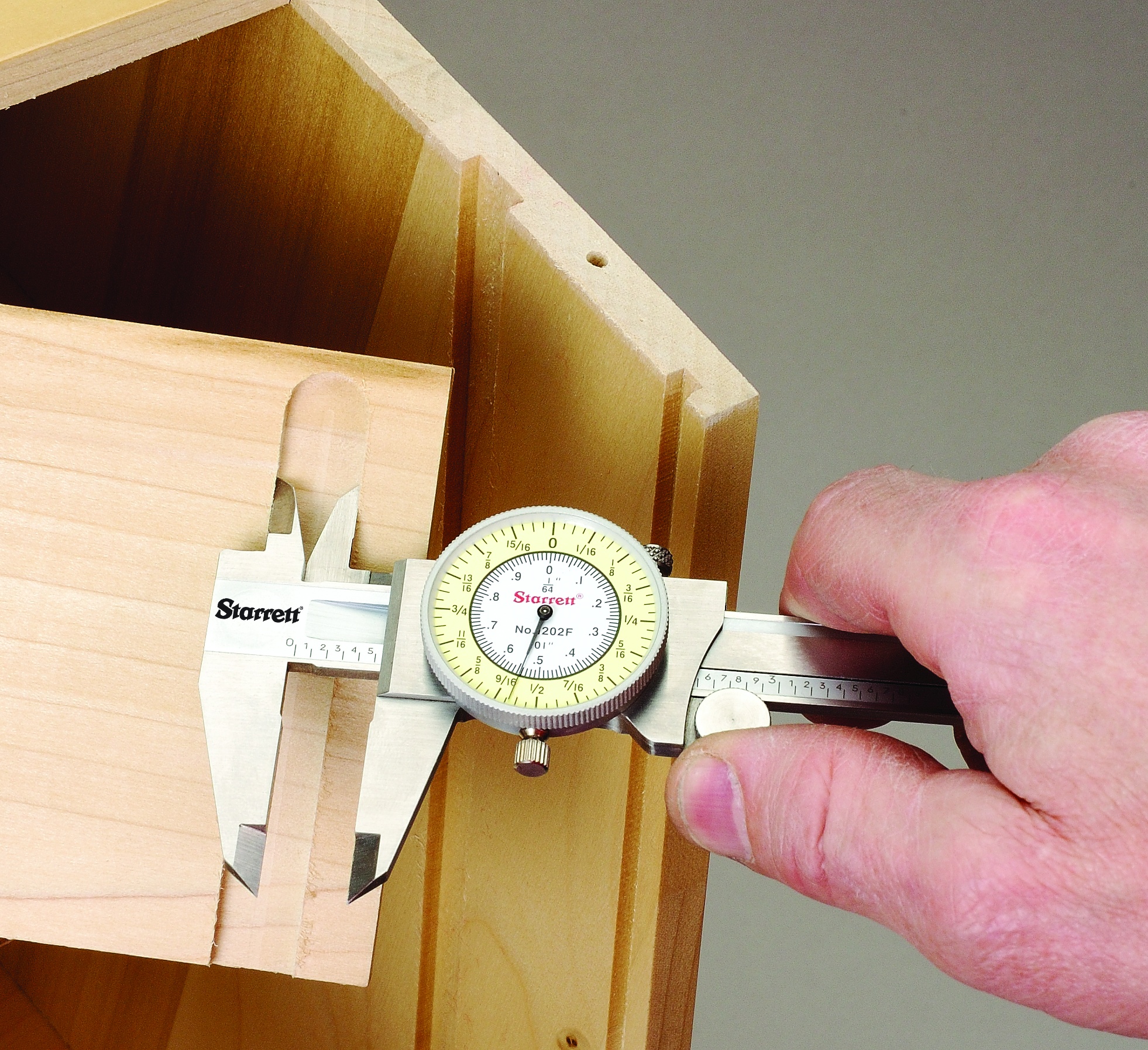

Starrett® 1202F-6 Dial Caliper With Plastic Case, 0 to 6 in, Graduation 0.01 in, 5/8 in Inside x 1-1/2 in Outside D Jaw, Stainless Steel, Satin

  • Manufacturer: L.S. Starrett
  • Brand Name: Starrett®
  • Part Number: STAR-68931
  • MPN: 1202F-6
  • UPC: 049659689310
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Starrett® Dial Caliper, Series: 1202, 0 to 6 in, +/-0.001 in Accuracy, Graduations: 0.01 in, 5/8 in Inside x 1-1/2 in Outside Jaw Depth, Measuring System: SAE, White Dial, Stainless Steel, Satin

Accuracy      :      +/-0.001 in
Dial Color      :      White
Finish      :      Satin
Graduations      :      0.01 in
Jaw Depth      :      5/8 in Inside x 1-1/2 in Outside
Material      :      Stainless Steel
Measuring Range      :      0 to 6 in
Measuring System      :      SAE
Series      :      1202
  • Provides quick, accurate measurement of O.D., I.D. and depth
  • 1/64 in graduations on the yellow outer scale, and .01 in on the white inner scale
  • Lock screws for sliding jaw and dial bezel
  • Adjustable bezel
  • Thumb-operated fine adjustment roll
  • Knife-edge contacts
  • Positive, spring-loaded double pinion anti-backlash control
