SIM WA37214

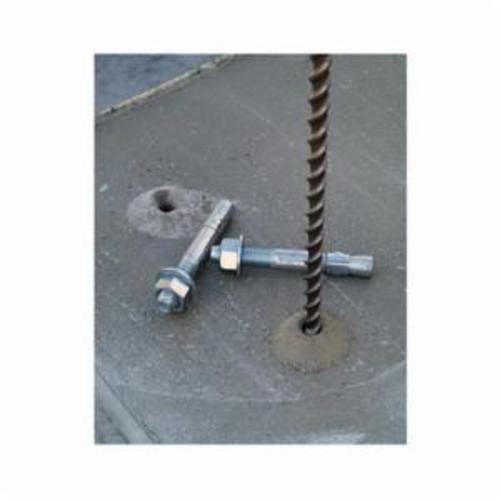

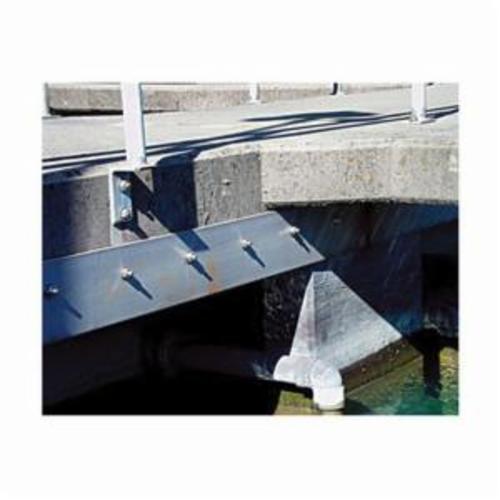

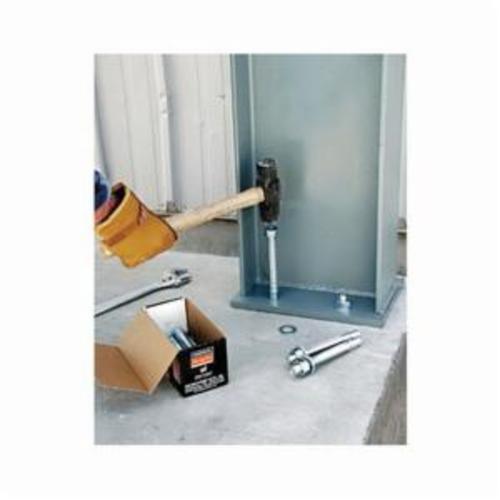

A non-bottom-bearing, wedge-style expansion anchor for use in solid concrete or grout-filled masonry. The Wedge-All® wedge anchor is available in carbon steel with zinc or mechanically galvanized coating, as well as Types 303/304 and Type 316 stainless steel. Threaded studs are set by tightening the nut to the specified torque. The Wedge-All is code listed for grout-filled masonry applications.

Simpson Strong-Tie® Wedge Anchor, Series: Wedge-All®, 3/8 in Dia, 2-1/4 in Overall Length, 1-1/8 in Thread Length, Carbon Steel, Zinc Plated, 1-3/4 in Minimum Embedment Depth, 3/8 in Drill, 9/16 in Head, 570 lb Shear Strength, 261 lb Tensile

• Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
• One-piece, wrap-around clip ensures uniform holding capacity
• Threaded end is chamfered for ease of starting nut
• Available in a wide range of diameters and lengths
• Carbon steel ASTM A563 grade A nut
• The minimum concrete thickness is 1-1/2 times the embedment depth
• The allowable loads are based on a safety factor of 4
• 7/16 in minimum fixture hole
• 30 ft-lb installation torque
• 1560 lb at 2000 psi, 2880 lb at 4000 psi ultimate tension loads and 390 lb at 2000 psi, 555 lb at 3000 psi, 720 at 4000 psi allowable tension load for concrete
• 2280 lb at 2000 psi ultimate shear loads and 570 lb at 2000/3000/4000 psi allowable shear load for concrete
• Anchor body material meets minimum 70000 psi tensile strength
