Simpson Strong-Tie® TTN25214H Screw Anchor, 1/4 in Dia, 2-1/4 in OAL, Hex Head Drive, Carbon Steel, 1 in D Min Embedment
- Manufacturer: Simpson Strong-Tie
- Brand Name: Simpson Strong-Tie®
- Part Number: SIM TTN25214H
- MPN: TTN25214H
- UPC: 044315560101
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 500/CT
-
Price:

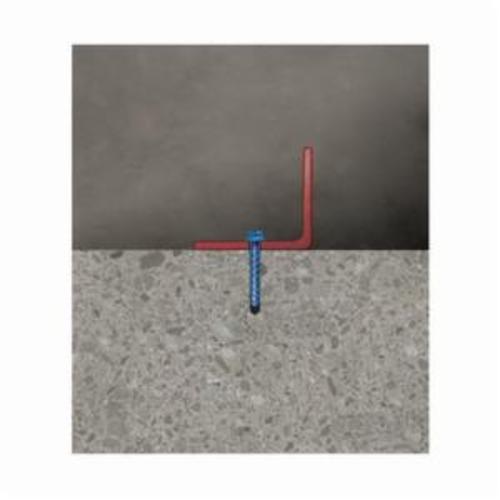

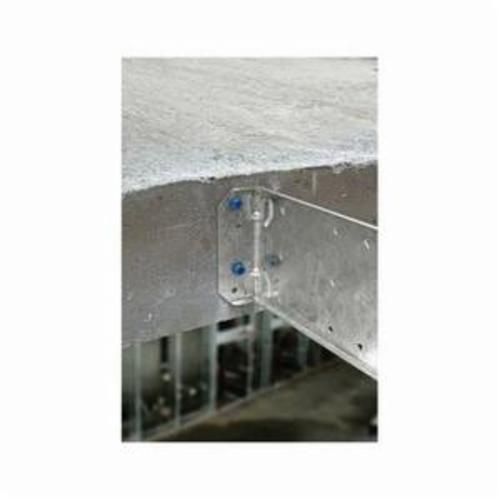

Titen® screws are hardened screws for attaching all types of components to concrete and masonry. These fasteners are commonly used in applications such as attaching electrical boxes, light fixtures or window frames into concrete or masonry base materials.
Simpson Strong-Tie® Screw Anchor, Series: Titen®, 1/4 in Diameter, 2-1/4 in Overall Length, Hex Head Drive, Carbon Steel, 1 in Minimum Embedment Depth, 3/16 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 250 lb Shear Strength, 150 lb Tensile Strength
| Applicable Materials | : | Concrete/Masonry |
| Diameter | : | 1/4 in |
| Drill Size | : | 3/16 in |
| Finish | : | Zinc Plated |
| Head Drive Type | : | Hex |
| Material | : | Carbon Steel |
| Minimum Embedment Depth | : | 1 in |
| Overall Length | : | 2-1/4 in |
| Series | : | Titen® |
| Shear Strength | : | 250 lb |
| Tensile Strength | : | 150 lb |
- Blue color
- 1242 lb ultimate shear load
- 740 lb ultimate tension load
- 1-1/2 in critical edge distance
- 3 in critical spacing
- Zinc plated with a baked on ceramic
