SIM SL50214C
Simpson Strong-Tie® SL50214C Sleeve-All® Pre-Assembled Expanding Sleeve Anchor, 1/2 in Dia, Carbon Steel, Rod Coupler Head
- Manufacturer: Simpson Strong-Tie
- Brand Name: Simpson Strong-Tie®
- Part Number: SIM SL50214C
- MPN: SL50214C
- UPC: 044315734205
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 100/CT
-
Price:

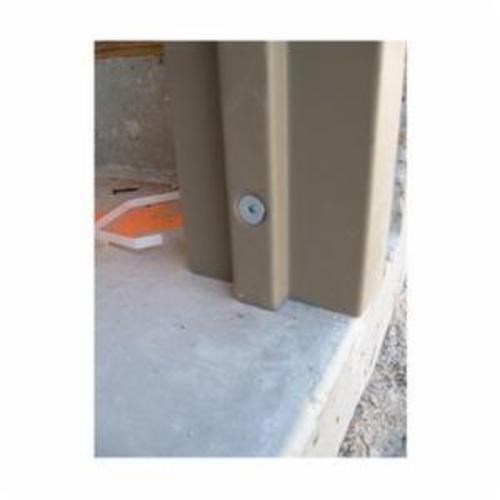

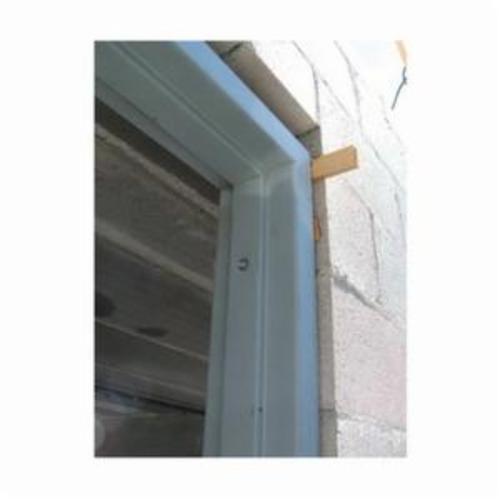

Sleeve-All® expanding anchors are pre-assembled, expanding sleeve anchors for use in all types of solid base materials. This anchor is available in acorn, hex, rod coupler, flat or round head style for a wide range of applications.
Simpson Strong-Tie® Sleeve Anchor, Pre-Assembled Expanding, Series: Sleeve-All®, 1/2 in Diameter, Carbon Steel, Rod Coupler Head, Zinc Plated, 2-1/4 in Minimum Embedment Depth, 2-1/4 in Overall Length, 1/2 in Drill, 1250 lb at 2000 psi Shear Strength, 790 lb at 2000 psi Tensile Strength
| Diameter | : | 1/2 in |
| Drill Size | : | 1/2 in |
| Finish | : | Zinc Plated |
| Head Type | : | Rod Coupler |
| Material | : | Carbon Steel |
| Minimum Embedment Depth | : | 2-1/4 in |
| Overall Length | : | 2-1/4 in |
| Series | : | Sleeve-All® |
| Shear Strength | : | 1250 lb at 2000 psi |
| Tensile Strength | : | 790 lb at 2000 psi |
| Type | : | Pre-Assembled Expanding |
- Accepts 1/2 in Dia rod
- Material meets minimum 50000 psi tensile anchor body
- SAE J403, grade 1008 cold rolled steel sleeve
- Commercial grade nut, meets requirements of ASTM A563 grade A
- SAE J403, grade 1008/1010 cold rolled steel washer
- 5 in critical edge distance
- 9 in critical spacing distance
- 3160 lb at 2000 psi ultimate tension load for concrete
- 4760 lb at 4000 psi ultimate tension load for concrete
- 5000 lb at 2000 psi ultimate shear load for concrete
- 25 ft-lb install torque
- 1190 lb at 4000 psi for concrete
