SIM DIAB37

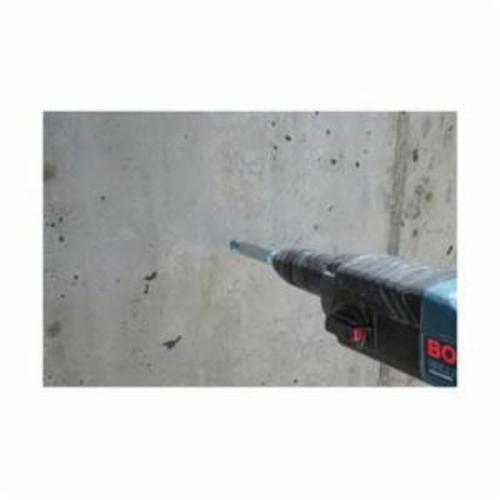

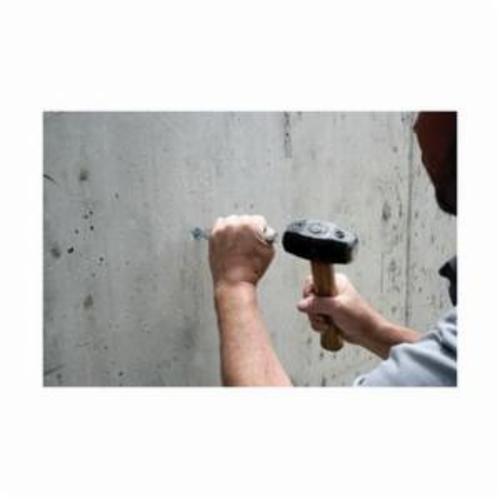

Simpson Strong-Tie introduces a new, redesigned Drop-In anchor (DIAB) that provides easier installation into base materials. Improved geometry in the preassembled expansion plug improves setting capability so the anchor installs with 40% fewer hammer strikes than previous versions. These displacement-controlled expansion anchors are easily set by driving the plug toward the bottom of the anchor using either the hand- or power-setting tools. DIAB anchors feature a positive-set marking indicator at the top of the anchor, helping you see more clearly when proper installation has taken place. Use a Simpson Strong-Tie fixed-depth stop bit to take the guesswork out of drilling to the correct depth. The fluted design of the tip draws debris away from the hole during drilling, allowing for a cleaner installation.

Simpson Strong-Tie® Drop-In Anchor, Threaded, 3/8 in Bolt/Rod, 3/8-16, Carbon Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, 5/8 in Thread Length, 1-9/16 in Overall Length, 1195 lb at 2500 psi/4000 psi for Concrete Shear Strength, 740 lb at 2500 psi, 980 lb at 4000 psi for Concrete Tensile, Zinc Plated

• New design offers easier installation than previous drop-in anchor design - sets with 40% fewer hammer hits

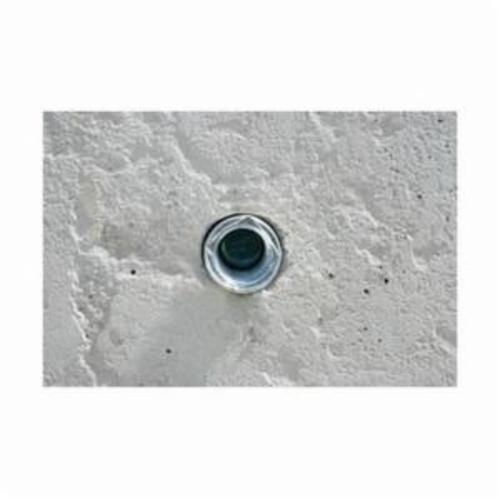

• Positive-set marking system indicates when anchor is properly set
• Lipped drop-in version available for flush installation
• Hand- and power setting tools available for fast, easy and economical installation
• Fixed depth stop bit helps you drill to the correct depth every time
• The allowable loads are based on a safety factor of 4
• The minimum concrete thickness is 1-1/2 times the embedment depth
