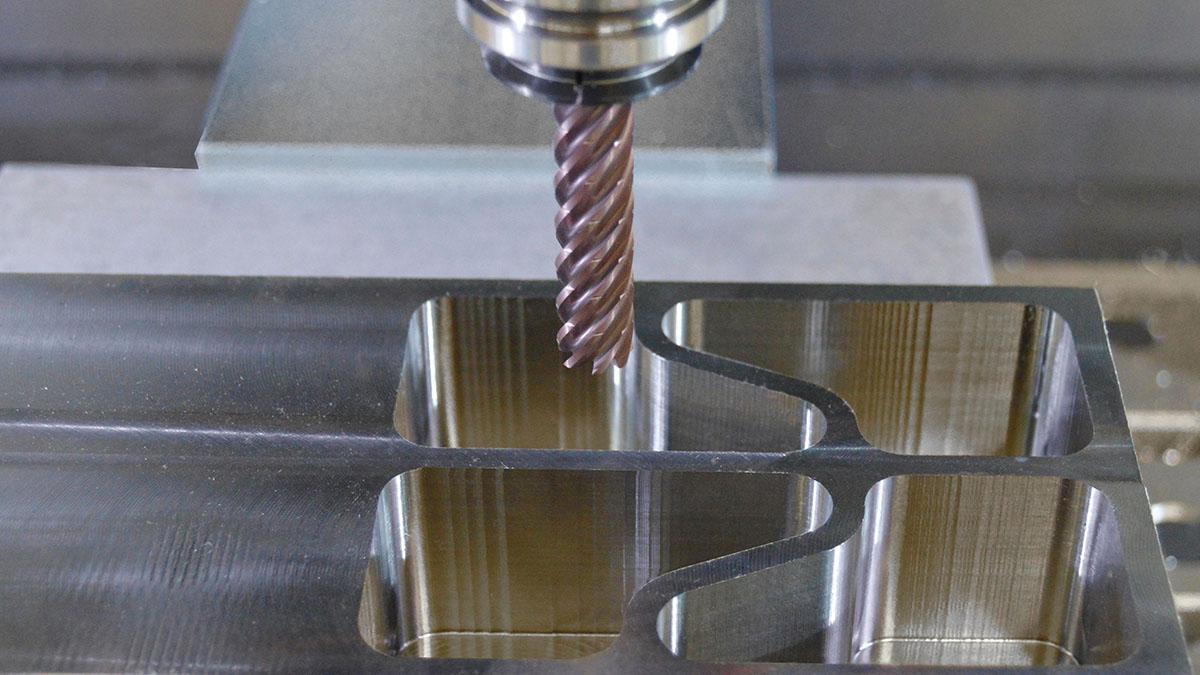

SGS® 77312 SGS 77312
  1. pin-int

SGS 77312

SGS® H-Carb 77312 77CR High Efficiency Imperial Corner Radius End Mill, 1 in Dia Cutter, 0.03 in Corner Radius, 3 in Length of Cut, 7 Flutes, 1 in Dia Shank, 5-3/4 in OAL, AlTiN

  • Manufacturer: KYOCERA SGS Precision tools, Inc.
  • Brand Name: SGS®
  • Part Number: SGS 77312
  • MPN: 77312
  • UPC: 691781773124
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

The new H-Carb 7-flute high efficiency end mill specializes in deep axial trochoidal and high speed machining applications offered at various lengths of cut. The specialized core and flute design improves rigidity and chip flow while reducing deflection. The 7-flute design allows for superior finishes at higher speed and feed rates versus 5 and 6 flute tools.

SGS® H-Carb Corner Radius End Mill, High Efficiency Imperial, Series: 77CR, 1 in Diameter Cutter, 0.03 in Corner Radius, 5-3/4 in Overall Length, 3 in Length of Cut, 7 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Straight Shank, Solid Carbide, AlTiN

Corner Radius      :      0.03 in
Cutter Diameter      :      1 in
Cutting Direction      :      Right Hand
Finish      :      AlTiN
Flute Type      :      Spiral
Helix Angle      :      37 deg
Length of Cut      :      3 in
Material      :      Solid Carbide
Number of Flutes      :      7
Overall Length      :      5-3/4 in
Series      :      77CR
Shank Diameter      :      1 in
Shank Type      :      Straight
Type      :      High Efficiency Imperial
  • Optimized core improves rigidity, chip flow and reduces deflection
