SECO 10302760

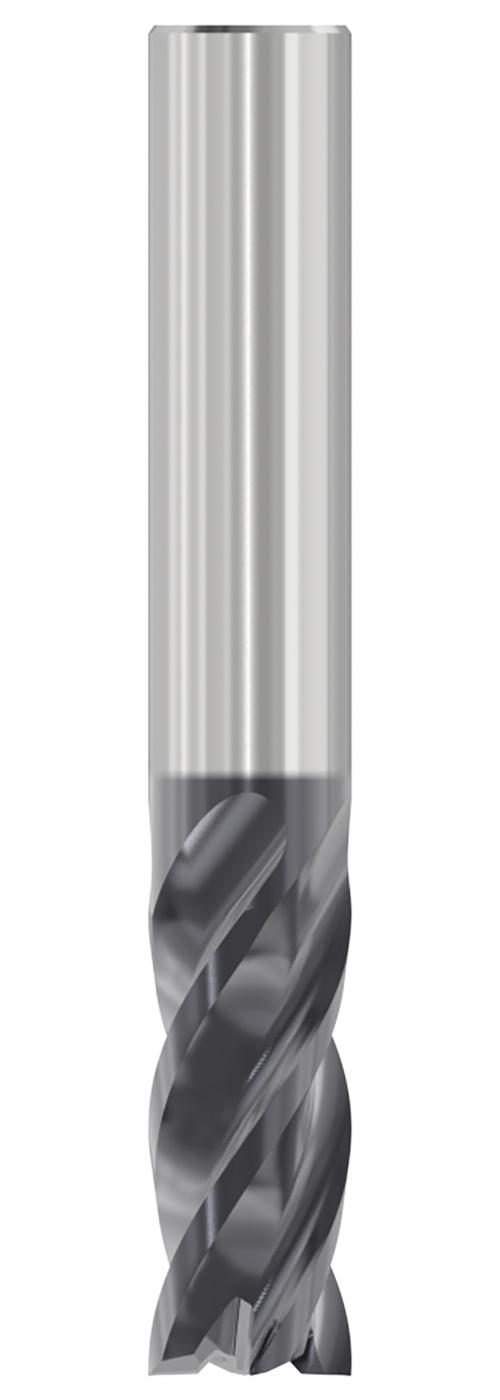

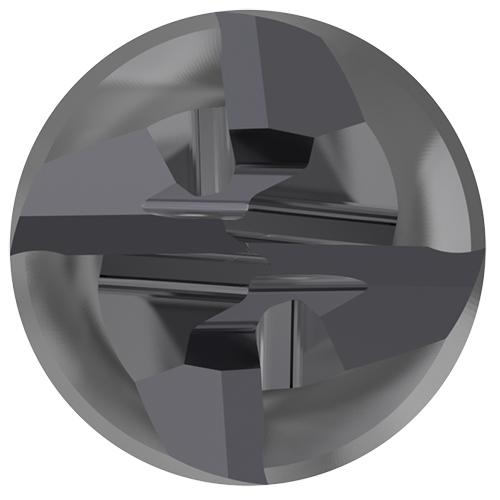

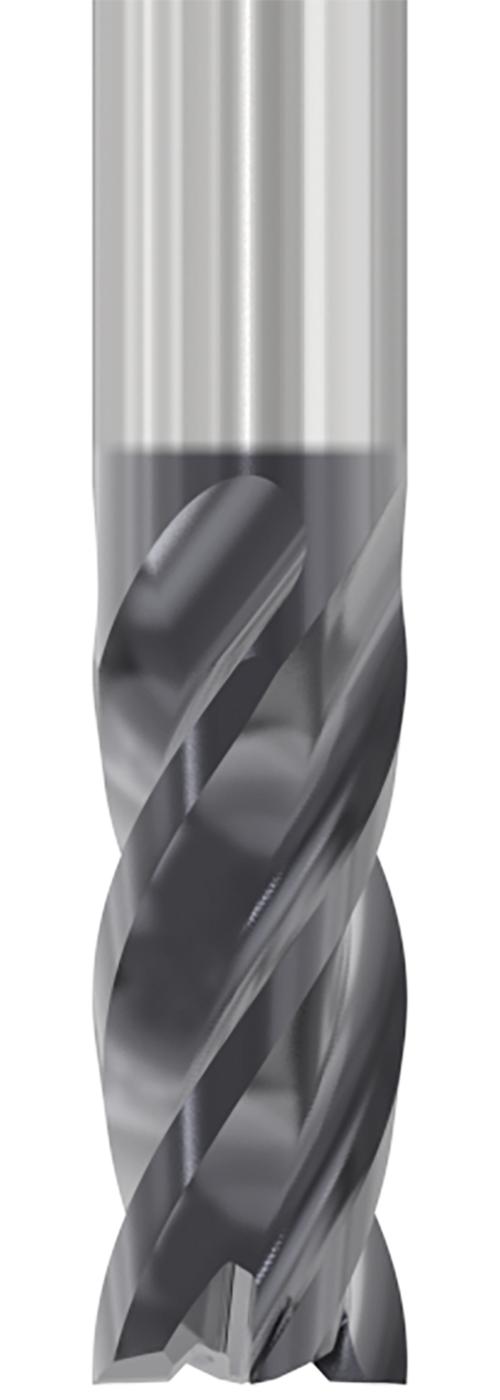

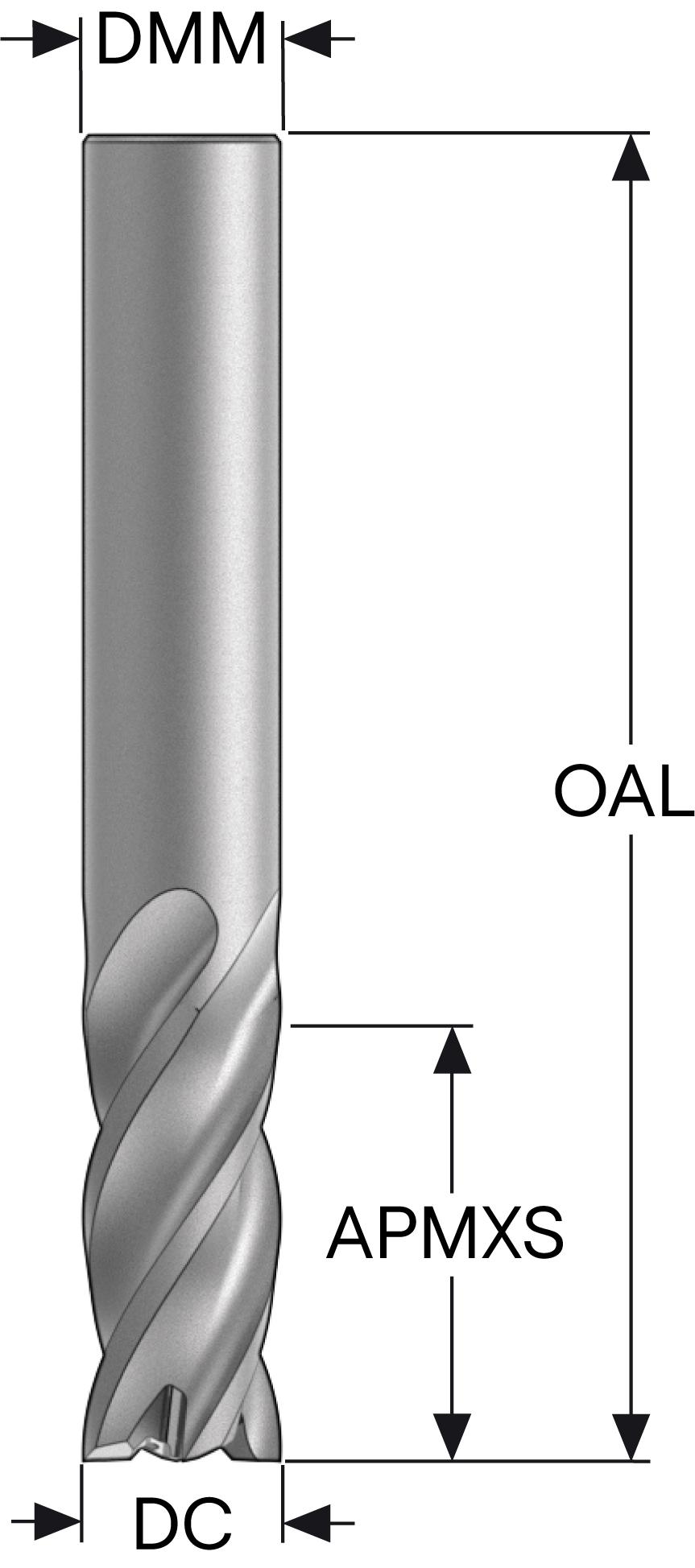

The Solid end mill ST5541-.250D2S.0Z4 SIRA features a cutting geometry type ST5541 with a maximum cutting diameter of 0.25 inch and a shank diameter of 0.25 inch. It has a maximum depth of cut in the feed direction side of 0.5 inch and includes four peripheral cutting edges. The shank type is cylindrical, and the grade is SIRA. This end mill is designed primarily for steel and cast irons. The main feature includes a continuously varying asymmetrical flute geometry on the 4-flute design, which causes each flute to have a constantly changing helix and rake along its entire length. The tool uses a wear-resistant SIRON-A coating to optimize tool life and reduce tooling inventory by enabling versatility across a wide range of applications and materials without the need for specialized tools. Many customers face challenges achieving stable machining processes with high metal removal rates. The main feature addresses this by maximizing stability and providing chatter-free machining through the unique asymmetrical flute geometry. The design improves part quality through reliable performance, reduces tooling costs, and increases throughput while minimizing cost per part. Benefits include increased process stability, extended tool life, and boosted productivity. The end mill eliminates harmonics and chatter and enables high metal removal rates. The coating increases wear resistance across all material types, allowing broad application use. The Solid end mill ST5541-.250D2S.0Z4 SIRA is economic and provides a long tool life. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Seco, 10302760, Milling Solid, High Performance, 0.25 in Diameter Cutter, 2.5 in Overall Length, 0.25 in Length of Cut, 4 Flutes, 0.25 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: ST5541-0.250D2S.0Z4, Solid Carbide, SIRON-A
