SECO 10268183

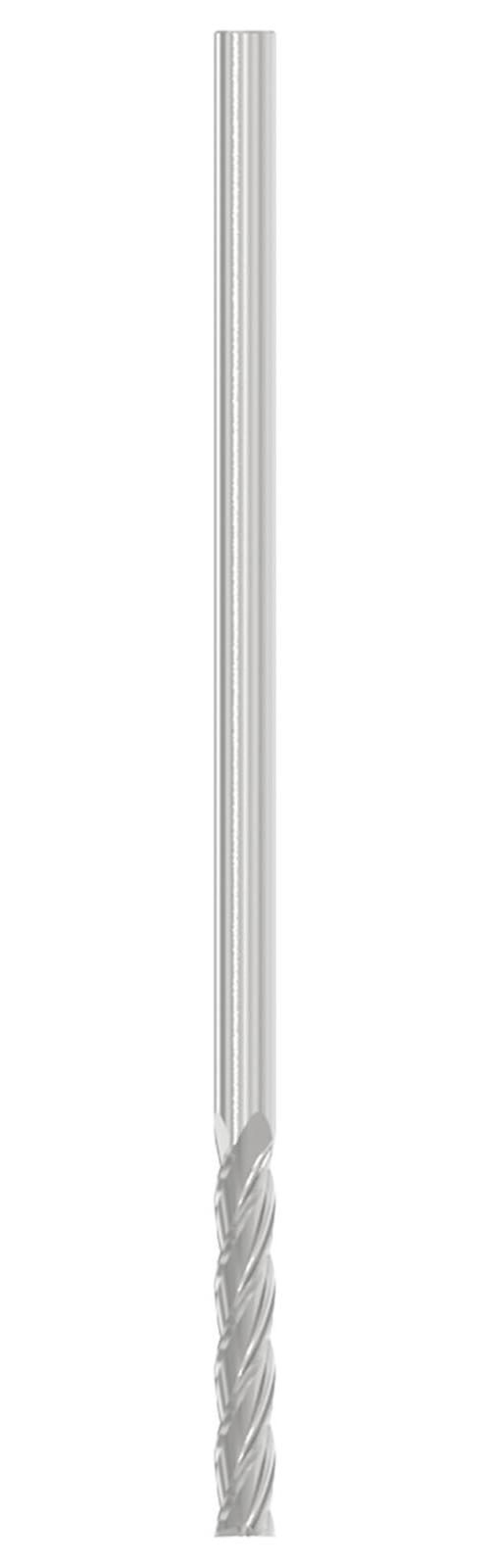

The Solid end mill C5141-.188D7S.0Z4 features a cutting geometry type C5141 designed for precise metal cutting tasks. With a cutting diameter maximum of 0.188 inch and a shank diameter of 0.188 inch, the milling cutter ensures consistent sizing. It has a cylindrical shank type and includes four peripheral cutting edges. The maximum depth of cut in the feed direction side is 1.125 inch. This cutter is suitable for steel, stainless steel, cast irons, superalloys, and titanium, covering a broad range of workpiece materials when equipped with the suitable grades. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

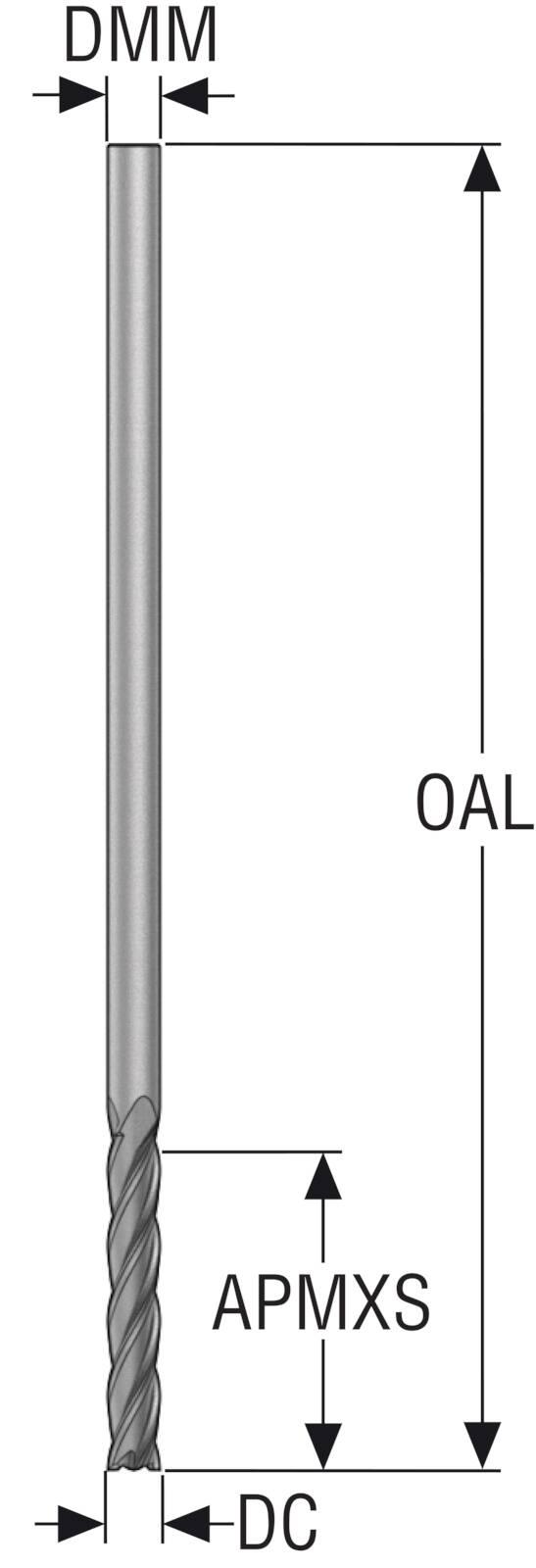

Seco, 10268183, Square End Mill, 0.1875 in Diameter Cutter, 3 in Overall Length, 1.125 in Length of Cut, 4 Flutes, 0.1875 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C5141-.188D7S.0Z4, Carbide, Uncoated
