NIAGARA N09713

The Stabilizer 2.0 family of end mills raises the bar in high performance milling by incorporating a patented continuously varying asymmetrical geometry which helps create a smooth chatter free milling condition. This configuration, along with a specially engineered flute shape, allow for feed rates twice that of the current Stabilizer. The ST430.2 series of end mills are specifically designed for machining steels, alloy steels, copper alloys and cast iron. The ST440.2 HT series of end mills are specifically designed for machining ISO-S materials such as stainless steel, steels over 42 Rc, titanium and Inconel. These end mills also feature an AlTiN coating that offers high heat resistance and superior abrasion resistance to maximize tool life.

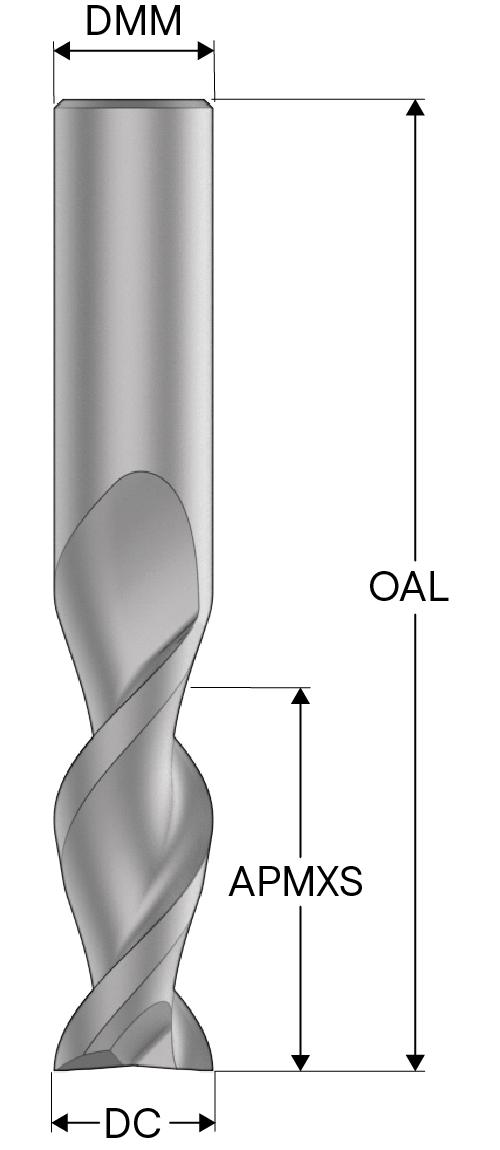

Seco Niagara Cutter Stabilizer™ 2.0 End Mill, Center Cutting High Performance Sharp Square End, Series: Stabilizer™ 2.0 STS430.2, 1/4 in Diameter Cutter, 2-1/2 in Overall Length, 1/2 in Length of Cut, 4 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, Cylindrical Shank, ANSI Code: STS430.2-0.250-D2-S.0-Z4, Solid Carbide, AlTiN

• Solid carbide high performance tools excel in slot and side milling
• 2x the feed rate of the current Stabilizer yields significant productivity gains
• Longer tool life than previous tool types even when applied at 2x the feed rates
• Continuously varying asymmetrical geometry provides smooth, chatter free cutting
• Wide application area covered, from steel to exotic materials
• Reduced cycle times with higher metal removal rates
• Minimized harmonics
• High heat and abrasion resistance
• Consistent performance in all applications

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Seco_10268168_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Seco_10268168_Catalog.pdf
