SECO-15512

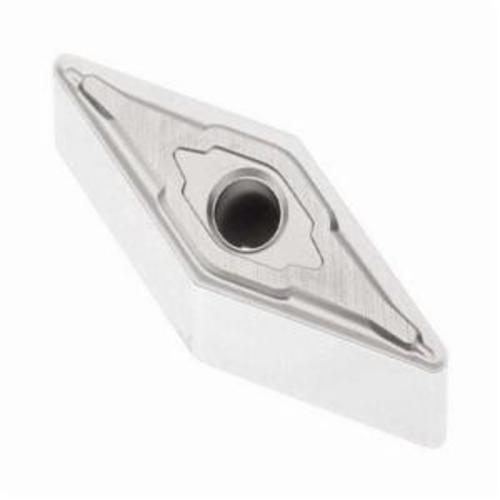

The Turning insert VNMG160404-M3 TP2501 features a clearance angle major of 0 degrees and a negative type geometry. With a carbide CVD grade TP2501, it has four cutting edges and a corner radius of 0.4 mm. The cutting edge effective length is 15.6 mm, and the insert hand is neutral. The insert is primarily designed for steel and is partially applicable for stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

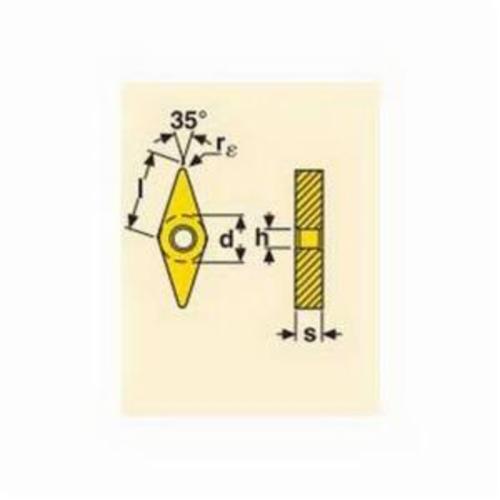

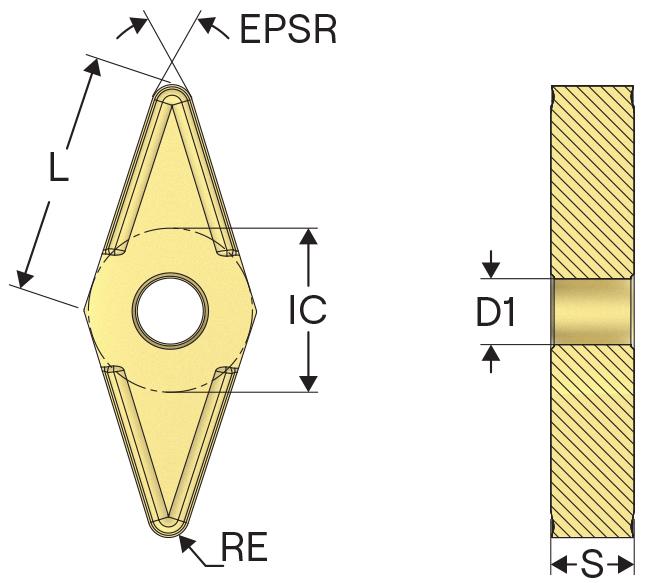

Seco Turning Insert, VNMG Insert, 160404 Insert, Diamond Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16 Seat, Negative/Positive Rake, M3 Chipbreaker, 0.4 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: VNMG331-M3 TP2501, ISO Code: VNMG160404-M3 TP2501, 35 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel
