SECO-15043

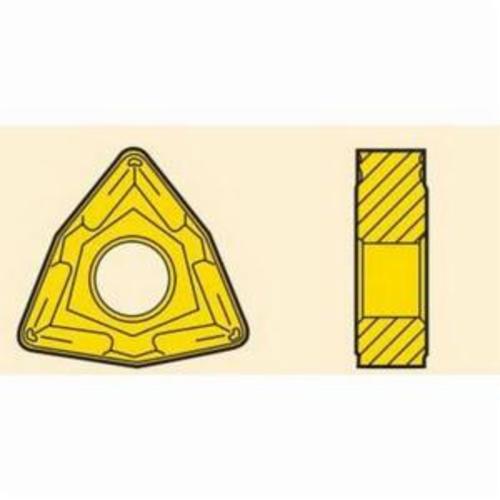

The Turning insert WNMG060408-MF2 TP1501 features a negative type geometry with a clearance angle major of 0 degrees. It is made from Carbide CVD grade TP1501. The insert has six cutting edges and a corner radius of 0.8 mm. With a cutting edge effective length of 6.2 mm, the insert is designed with a neutral hand orientation. Its main application area is steel, with partial applicability to stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

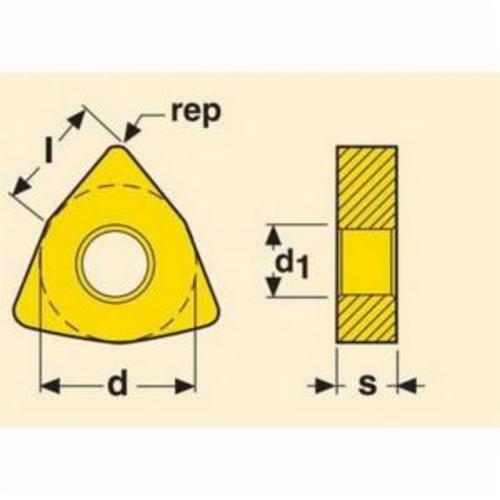

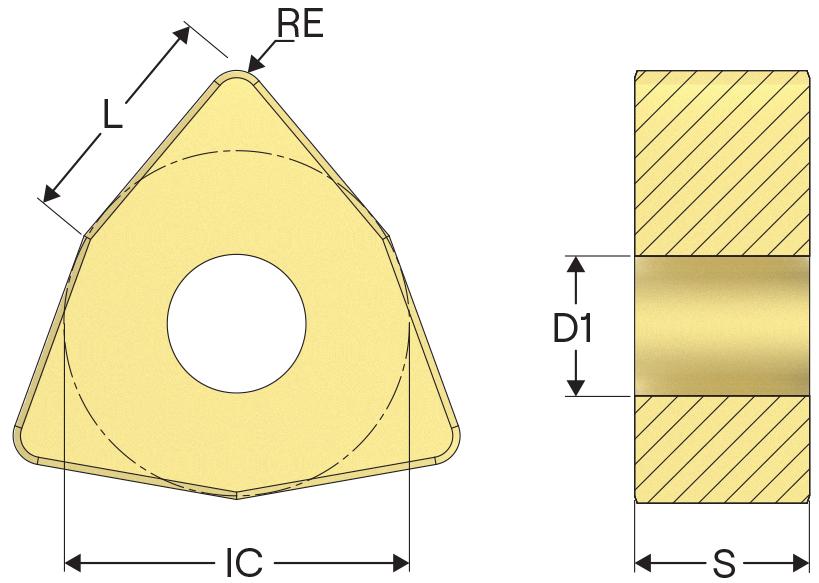

Seco Turning Insert, WNMG Insert, 060408 Insert, Trigon Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturer's Grade: TP1501, ANSI Code: WNMG332-MF2 TP1501, ISO Code: WNMG060408-MF2 TP1501, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, TiCN/Al2O3, Material Grade: P, For Use On: Steel
