SECO-63797

The Turning insert CNMG120408-MF2 TH1000 features a negative type with a clearance angle major of 0 degrees. It is made from a carbide PVD grade TH1000. The insert has four cutting edges and a corner radius of 0.8 mm. With a cutting edge effective length of 12.1 mm, the insert is designed with a neutral hand orientation. It is primarily intended for machining superalloys and titanium as well as hard materials, with partial applicability to steel and non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

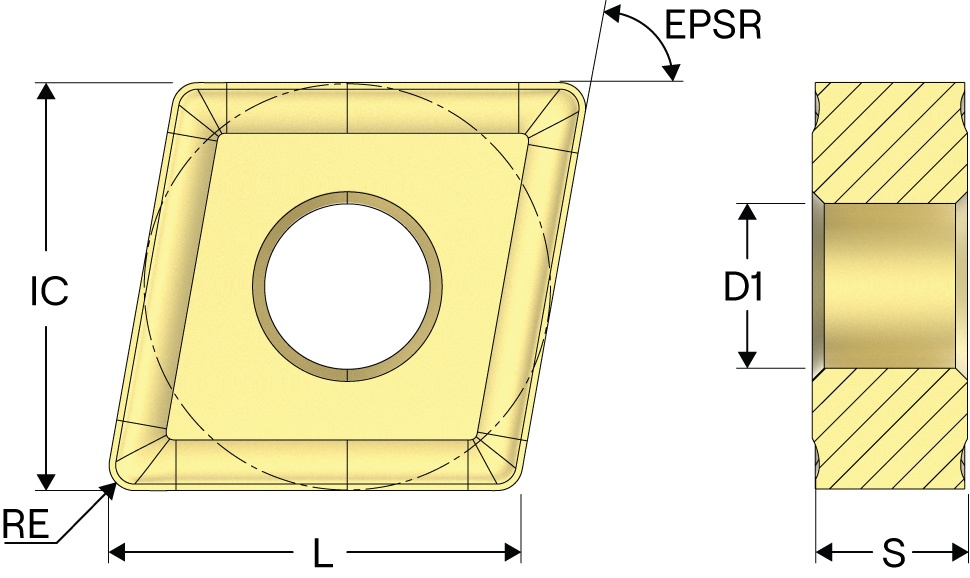

Seco Turning Insert, CNMG Insert, 120408 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TH1000, ANSI Code: CNMG432-MF2 TH1000, ISO Code: CNMG120408-MF2 TH1000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hard Materials and Titanium/Super Alloys
