SECO-72230

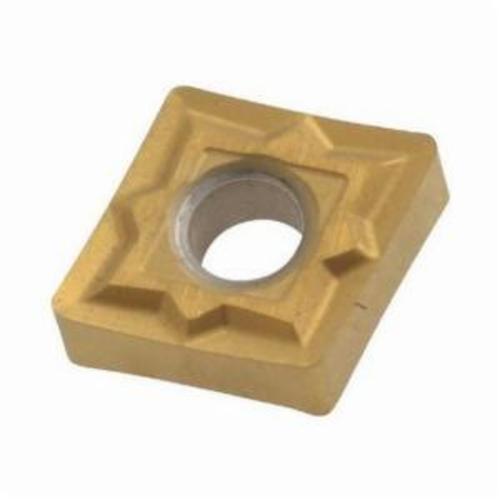

The Turning insert CNGG120408-MF1 CP200 features a negative type geometry with a clearance angle major of 0 degrees. It is made from a carbide PVD grade CP200. The insert has four cutting edges and a corner radius of 0.8 mm. With a cutting edge effective length of 12.1 mm, the insert is designed with a neutral hand orientation. The main application areas include superalloys and titanium as well as hard materials, with partial applicability to steel and stainless steel. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

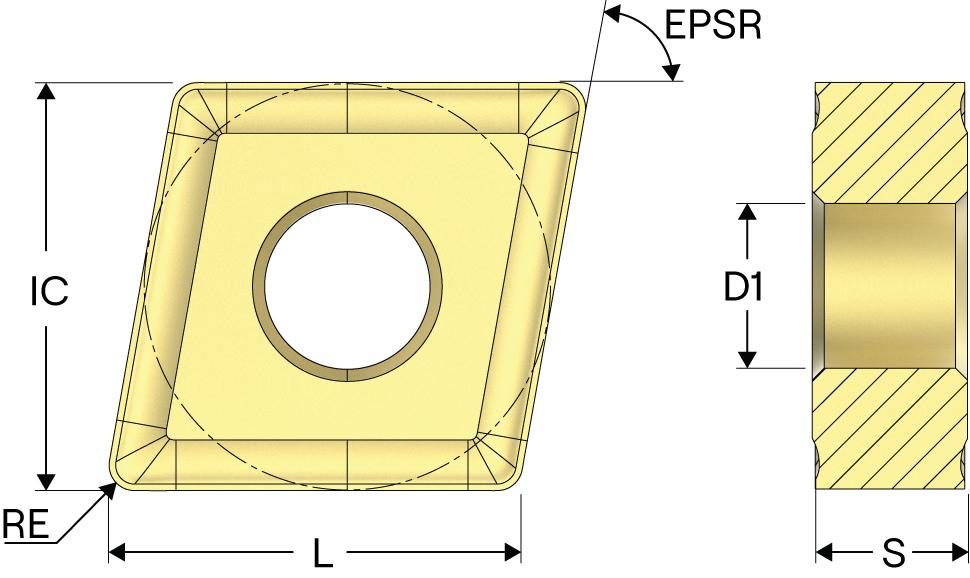

Seco Turning Insert, CNGG Insert, 120408 Insert, Diamond, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MF1 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: CP200, ANSI Code: CNGP432-MF1 CP200, ISO Code: CNGG120408-MF1 CP200, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Seco_2587711_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Seco_2587711_Catalog.pdf
