SECO 40018

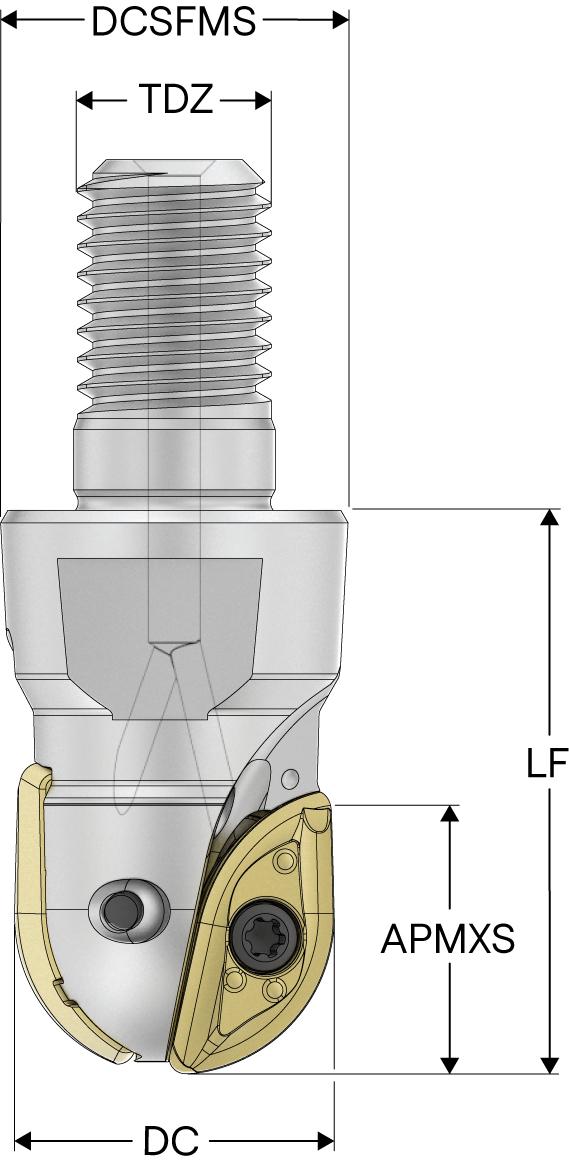

The Ball nose milling cutter R218.20-01.00-12RE-22A features a Combimaster [TM] shank type and a cutting diameter of 1 inch. With a maximum depth of cut in the feed direction side of 0.866 inch, it provides precise machining capabilities. The cutter has two peripheral effective cutting edges and a thread diameter size of M12. The workpiece side connection is specified as 218.20-125, and the functional length measures 1.378 inch. This cutter is suitable for a variety of workpiece materials when equipped with the suitable grades. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Seco, 40018, Indexable Milling Insert, Series: R218.20, XNEX Insert, 080608 Insert, Trigon Shape, 12.5 mm Inscribed Circle, 6.45 mm Thickness, 0.491 in Width, M13 Chipbreaker, 0.8 mm Corner Radius, Positive Rake, Manufacturer's Grade: MP2500, ANSI Code: XNEX080608TR-M13 MP2500, Right Hand of Insert, Carbide, TiCN/Al2O3, Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials Material Application

• Designed and manufactured with exact precision to meet our customers' demands for superior quality, close tolerances and consistent performance
• Offer a complete range of products for all industry segments, including aerospace, mold and die, power generation and more
