MMMR 10836

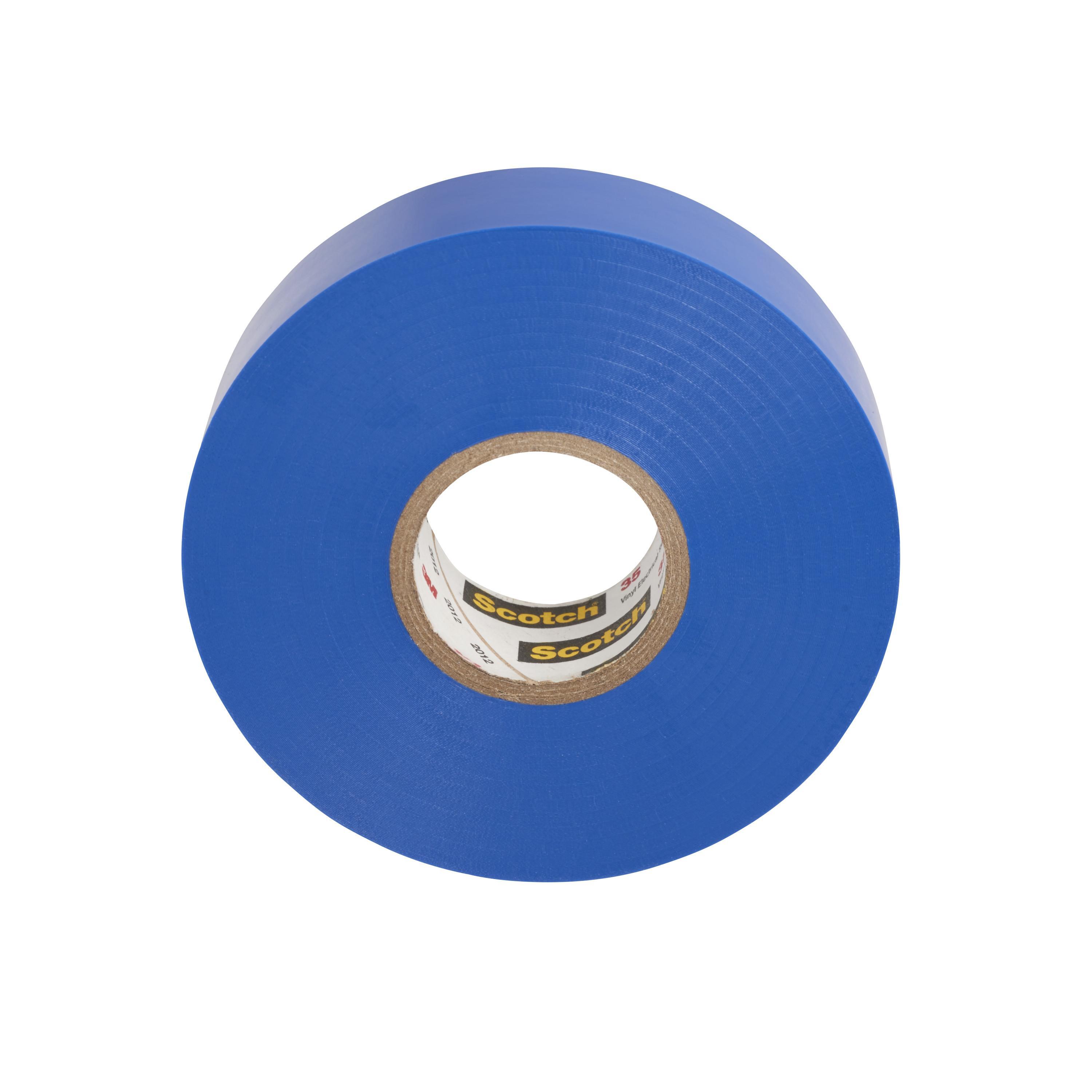

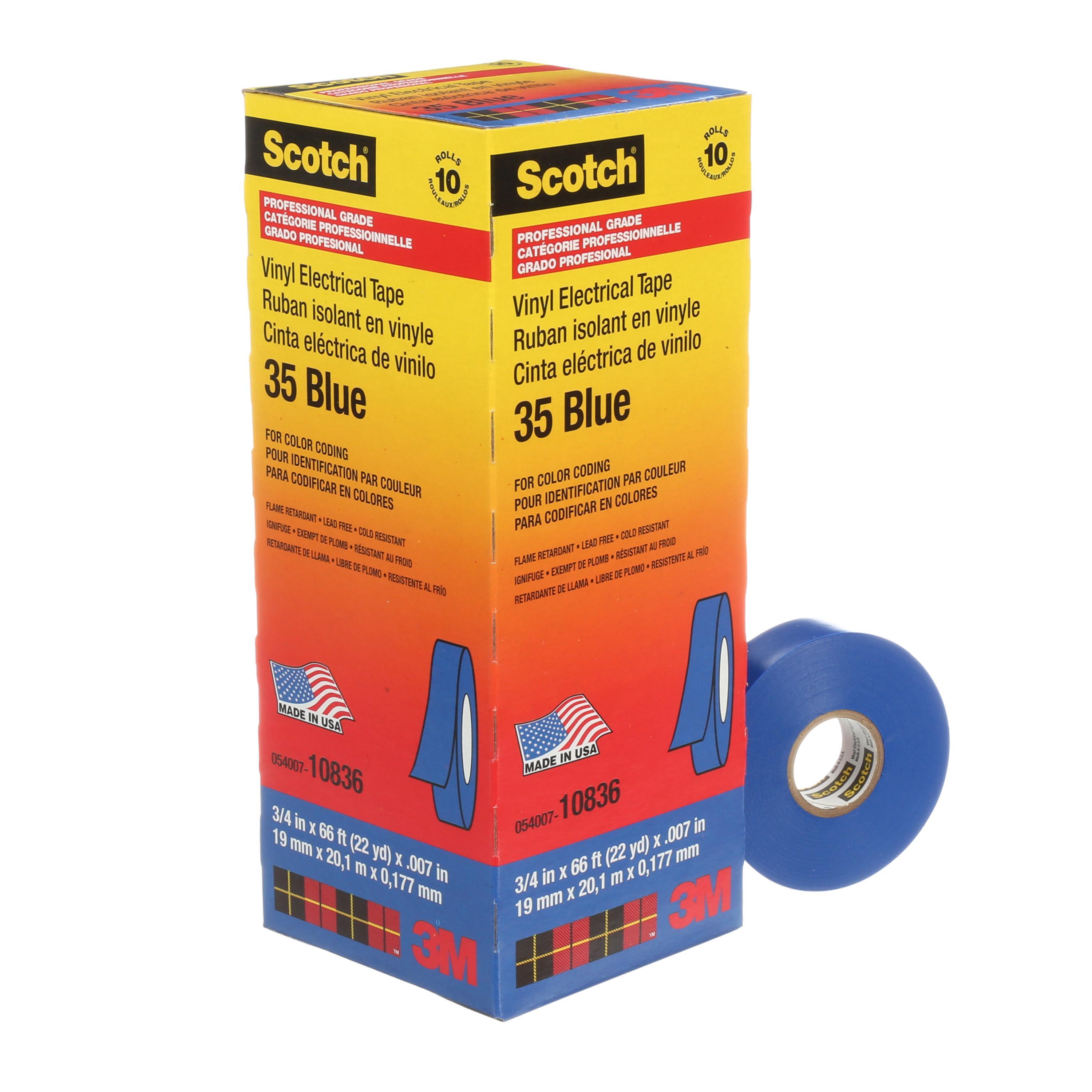

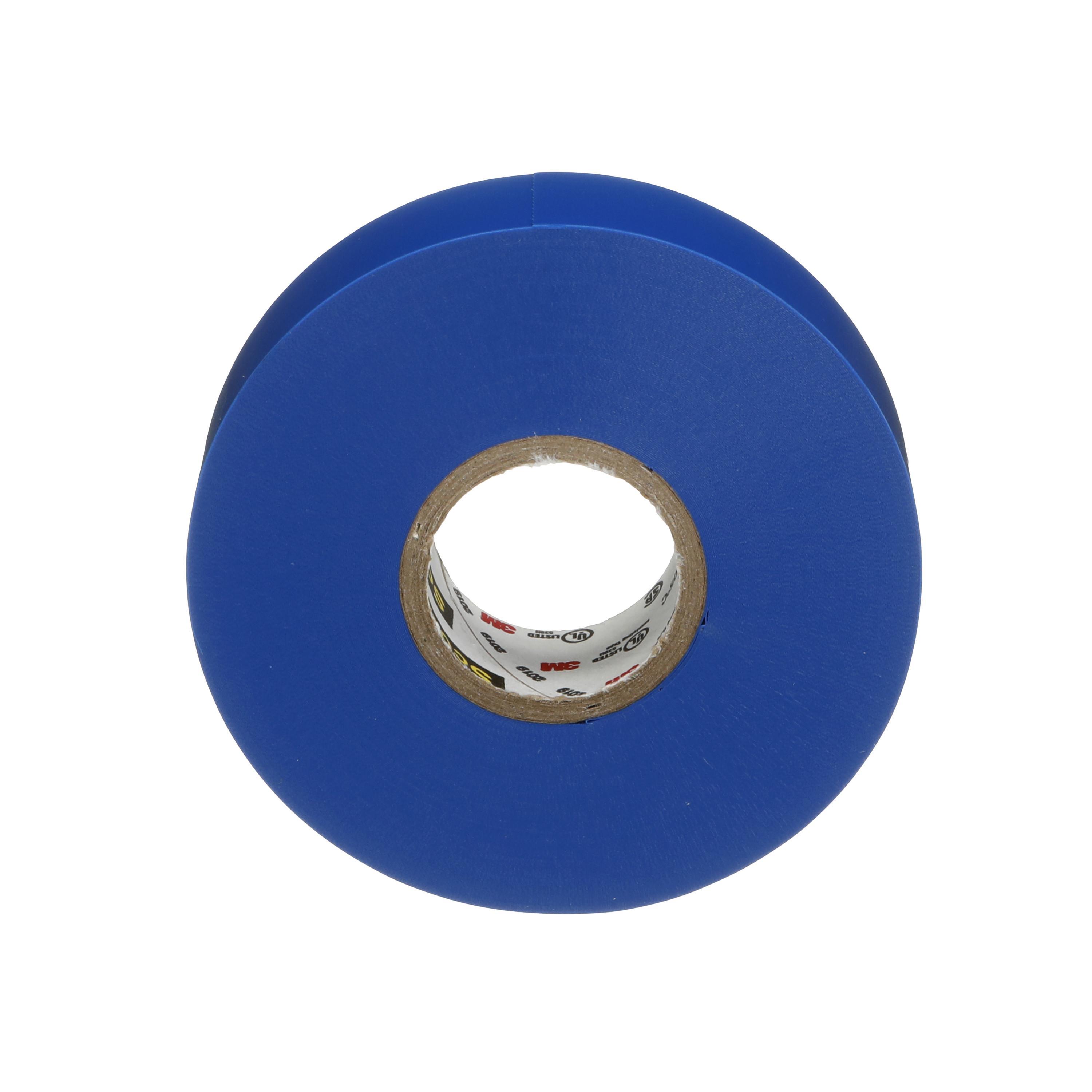

Scotch® Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape. It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive. In accordance with NFPA 70, National Electrical Code–where flame, sunlight and cold resistance is required–this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 °C (176 °F) and minimum temperature of -10 °C (14 °F) on joints and splices in wires and cables. The tape's color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. ​ UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch® Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended.

Scotch®, 7000006095, Tape, Electrical Maintenance, 22 yd Length, 0.75 in Width, 7 mil Thickness, Vinyl, Blue, Rubber Adhesive, PVC Backing, 6 V, 1255 mV Dielectric Strength, 221 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: CSA Certified/RoHS 211/65/EU/UL Listed/VDE 34-TEIL1

• The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers excellent electrical and mechanical protection
• Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalis, solvents and many acids
• Suitable for use in phase identification, color-coding of motor leads and piping systems and for marking safety areas
• Withstands a temperature range of 14 to 221 deg F (-10 to 105 deg C)

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scotch_7000057831_User_Manual.pdf
