Parker® 165PTC-3 PH 165PTC-8
  1. pin-int

PH 165PTC-8

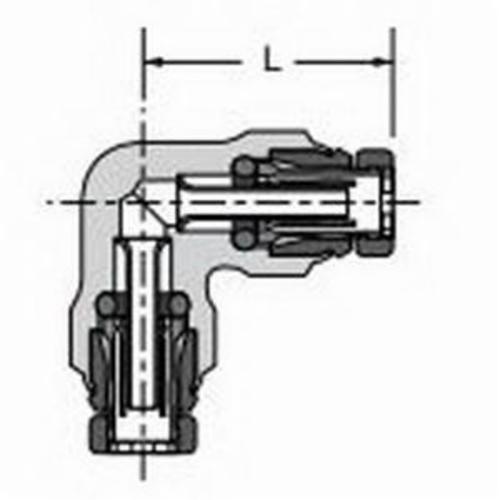

Parker® 165PTC-3 Push-to-Connect Elbow, 3/16 in Nominal, Tube End Style, Brass

  • Manufacturer: Parker Hannifin
  • Brand Name: Parker®
  • Part Number: PH 165PTC-8
  • MPN: 165PTC-3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Parker® transmission fittings, push-to-connect style are designed to reduce assembly time and are ideal for pressure protected pneumatic transmission applications.

Parker® Push-to-Connect Elbow, Series: 165PTC, Fitting/Connector Type: 90 deg Elbow, 3/16 in Nominal, Tube, 150 psi, -40 to 220 deg F, Brass

End Style      :      Tube
Fitting/Connector Type      :      90 deg Elbow
Material      :      Brass
Nominal Size      :      3/16 in
Pressure Rating      :      150 psi
Series      :      165PTC
Temperature Rating      :      -40 to 220 deg F
  • The push-to-connect style has a staked in tube support
  • Electroless nickel plated bodies can be used with bio-diesel
  • Compression and push-to-connect styles
  • Slotted sleeve
  • Use with J844 nylon tubing
  • Nitrile O-ring, nylon tubing
