OSG 1136100

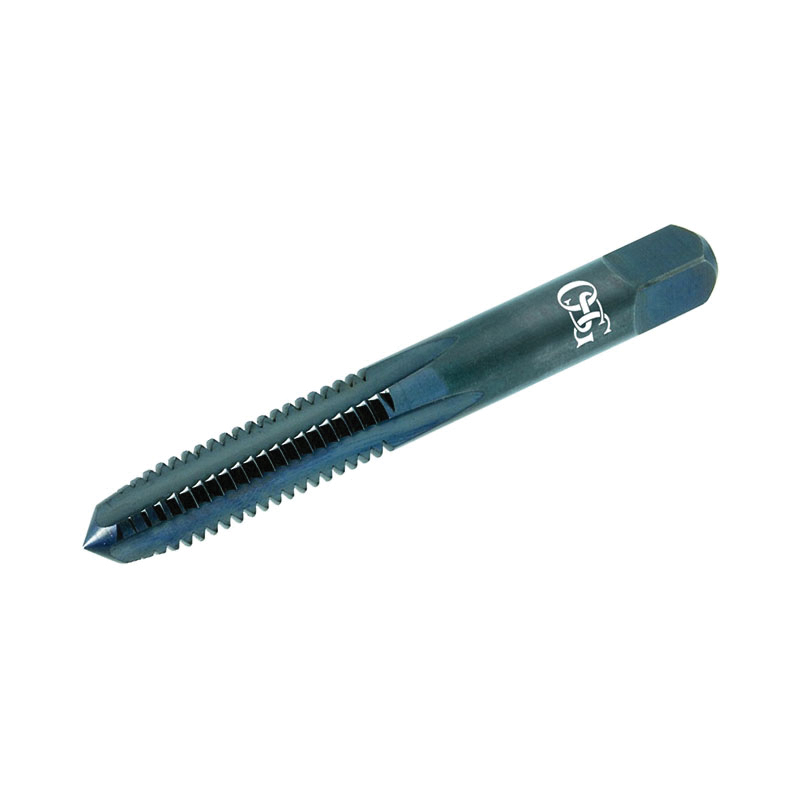

OSG 1136100 101 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 1-8 Thread, H4 Thread Limit, 3.5P-4.5P Plug Chamfer, 4 Flutes, Uncoated, HSS

  • Manufacturer: OSG
  • Brand Name: OSG
  • Part Number: OSG 1136100
  • MPN: 1136100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

General purpose straight flute tap series that provides exceptional value for all general threading applications.

OSG Straight Flute Hand Tap, General Purpose, Series: 101, Measurement System: Imperial, UNC, 1-8, 3.5P-4.5P Plug Chamfer, 4 Flutes, HSS, Uncoated, Right Hand Cutting, 1.874 in Thread Length, 5.12 in Overall Length, 0.8 in Shank Dia, 2-3/8 in Shank Length, Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal Material Application, H4 Thread Limit, Through Coolant (Yes/No): No

Chamfer Type      :      3.5P-4.5P Plug
Cutting Direction      :      Right Hand
Finish/Coating      :      Uncoated
Material Application      :      Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
Material      :      HSS
Measurement System      :      Imperial
Number of Flutes      :      4
Overall Length      :      5.12 in
Series      :      101
Shank Diameter      :      0.8 in
Shank Length      :      2-3/8 in
Thread Length      :      1.874 in
Thread Limit      :      H4
Thread Size      :      1-8
Thread Standard      :      UNC
Through Coolant (Yes/No)      :      No
Type      :      General Purpose
  • HSS material - increased wear resistance
  • Straight flute - for blind and through hole applications
  • Bright, steam oxide surface treatment - steam oxide increases mechanical lubricity
  • Inch and metric - complete offering
