MSA-10118480

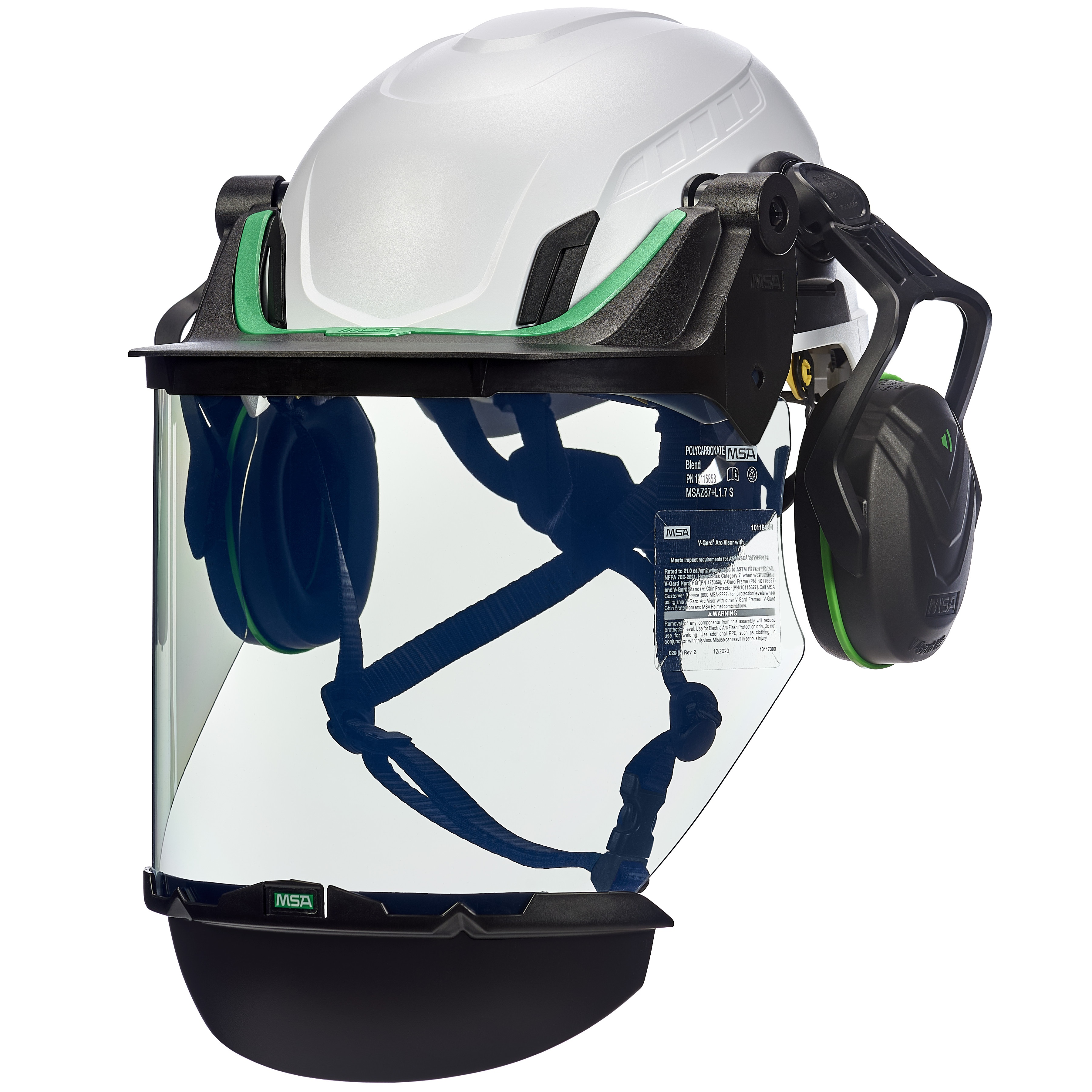

MSA V-Gard® 10118480 Arc Rated Molded Visor, Green, Polycarbonate, 8 in H x 17-1/4 in W x 0.065 in THK Visor, For Use With MSA V-Gard® Designated Chin Protector, ANSI/ISEA Z87.1-2010, ASTM F2178-2008

  • Manufacturer: MSA - The Safety Company
  • Brand Name: MSA
  • Part Number: MSA-10118480
  • MPN: 10118480
  • UPC: 641817026175
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

These PC visors are engineered to help protect against impact and dangerous arc flash hazards. They are perfect for electrical workers and electricians working with high-voltage connections. Note: V-Gard Arc Visors are intended to be used only with dielectric frames and helmets.

MSA V-Gard® Visor, Arc Rated Molded, Green, Polycarbonate, 11.3 cal/sq-cm ATPV, 0.065 in Visor Thickness, 8 in Visor Height, 17-1/4 in Visor Width, For Use With: MSA V-Gard® Designated Chin Protector, Specifications Met: ANSI/ISEA Z87.1-2010, ASTM F2178-2008

ATPV Rating      :      11.3 cal/sq-cm
Color      :      Green
Material      :      Polycarbonate
Specifications Met      :      ANSI/ISEA Z87.1-2010, ASTM F2178-2008
Suitable For Use With      :      V-Gard® Designated Chin Protector
Type      :      Arc Rated Molded
Visor Height      :      8 in
Visor Thickness      :      0.065 in
Visor Width      :      17-1/4 in
  • Impact-rated protection
  • Part number 10118480 Includes V-Gard Standard Chin Protector (required to achieve arc rating) and must be assembled onto visor by user - dimensions - 8 in (20.3 cm) x 17.25 in (43.8 cm) x .065 in (1.7 mm) + 3.02 in (7.7 cm ) (chin protector length)
