Mitsubishi Materials USA Corp 10533444 MTS 10562444
  1. pin-int

MTS 10562444

Mitsubishi Materials USA Corp 10533444 Insert, ANSI Code: CNMG432, CNMG Insert, Rhombic Shape, Negative Rake, Neutral Cutting, Carbide, Manufacturer's Grade: MC6035

  • Manufacturer: Mitsubishi Materials USA Corp
  • Brand Name: Mitsubishi Materials USA Corp
  • Part Number: MTS 10562444
  • MPN: 10533444
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

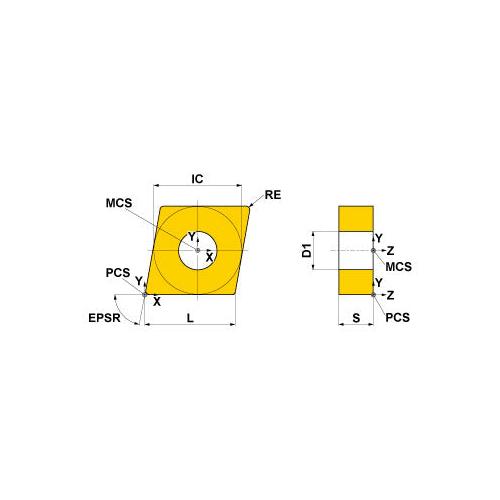

Mitsubishi Materials USA Corp, 10533444, Insert, CNMG Insert, Rhombic Shape, 0.5 in Inscribed Circle, 0.1875 in Thickness, 0.5079 in Length, Negative Rake, MA Chipbreaker, 0.0315 in Corner Radius, Manufacturer's Grade: MC6035, ANSI Code: CNMG432, ISO Code: CNMG120408, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD Coated

ANSI Code      :      CNMG432
Chipbreaker      :      MA
Corner Radius      :      0.0315 in
Cutting Direction      :      Neutral
Finish      :      CVD Coated
ISO Code      :      CNMG120408
Included Angle      :      80 deg
Inscribed Circle      :      0.5 in
Insert Style      :      CNMG
Length      :      0.5079 in
Manufacturer's Grade      :      MC6035
Material      :      Carbide
Rake      :      Negative
Relief Angle      :      0 deg
Seat Size      :      C
Shape      :      Rhombic
Thickness      :      0.1875 in
