Mann-Tek by Dixon® MSBC400SSMNPT DIXV-MSBC400SSMNPT
  1. pin-int

DIXV-MSBC400SSMNPT

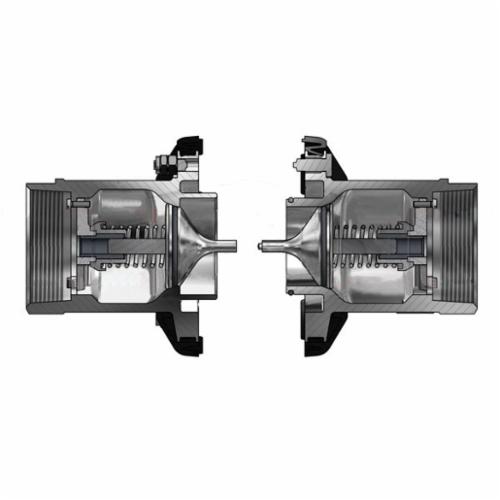

Mann-Tek by Dixon® MSBC400SSMNPT Safety Break-Away Coupling, 4 in Nominal, MNPT End Style, 316 Stainless Steel

  • Manufacturer: Dixon Valve & Coupling
  • Brand Name: Mann-Tek by Dixon®
  • Part Number: DIXV-MSBC400SSMNPT
  • MPN: MSBC400SSMNPT
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Mann-Tek by Dixon® Safety Break-Away Coupling, Coupling Fitting/Connector, 4 in Nominal, MNPT End Style, 360 psi Pressure, 70 deg F, 316 Stainless Steel, 13.6 in L x 8.3 in W Dimensions

Dimensions      :      13.6 in L x 8.3 in W
End Style      :      MNPT
Fitting/Connector Type      :      Coupling
Material      :      316 Stainless Steel
Nominal Size      :      4 in
Pressure Rating      :      360 psi
Temperature Rating      :      70 deg F
  • Coupling automatically senses an excessive load, closes the valves and disconnects, release is executed when force causes bolts to break
  • 316T1 stainless steel body with FKM (FPM) O-rings
  • Designed to minimize spillage and damage associated with pull away incidents
  • Designed to be installed within a hose string where the coupling will have a length of hose attached to both sides
