Komet 6262642502 KOMET W00340600203
  1. pin-int

KOMET W00340600203

Komet 6262642502 Insert, ANSI Code: WOHX 060302EL-G06 P25M, WOHX Insert, 0.3937 in Inscribed Circle, Carbide, Manufacturer's Grade: P25M, P25M Coated

  • Manufacturer: CERATIZIT Group
  • Brand Name: Komet
  • Part Number: KOMET W00340600203
  • MPN: 6262642502
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

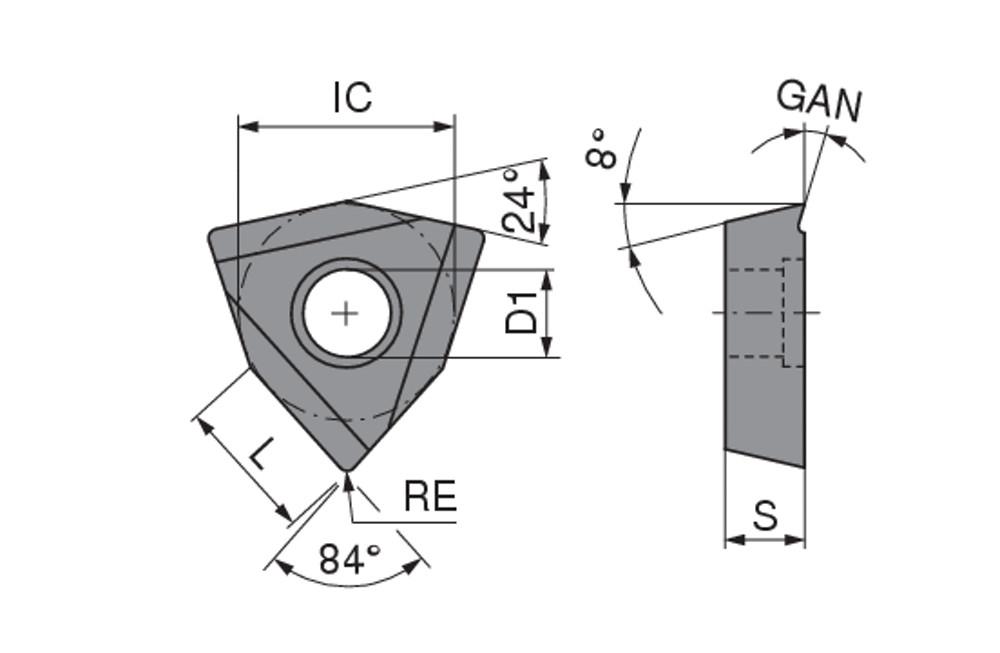

Komet, 6262642502, Insert, WOHX Insert, 060302 Insert, 80 deg Trigon Shape, 0.3937 in Inscribed Circle, 0.1181 in Thickness, 0.2598 in Width, 0.2598 in Length, G06 Chipbreaker, 0.0079 in Corner Radius, 0.1488 in Diameter Hole, Manufacturer's Grade: P25M, ANSI Code: WOHX 060302EL-G06 P25M, ISO Code: WOHX 060302EL, 80 deg Included Angle, Left Hand of Insert, Carbide, P25M Coated

ANSI Code      :      WOHX 060302EL-G06 P25M
Chipbreaker      :      G06
Corner Radius      :      0.0079 in
Finish      :      P25M Coated
Hand of Insert      :      Left
Hole Diameter      :      0.1488 in
ISO Code      :      WOHX 060302EL
Included Angle      :      80 deg
Inscribed Circle      :      0.3937 in
Insert Size      :      060302
Insert Style      :      WOHX
Length      :      0.2598 in
Manufacturer's Grade      :      P25M
Material      :      Carbide
Shape      :      80 deg Trigon
Thickness      :      0.1181 in
Width      :      0.2598 in
