Komet 6261461402 KOMET W04421800212
  1. pin-int

KOMET W04421800212

Komet 6261461402 Insert, ANSI Code: WNHX 08T302EL-G18 P25, WNHX Insert, 0.4724 in Inscribed Circle, Carbide, Manufacturer's Grade: P25, P25 Coated

  • Manufacturer: CERATIZIT Group
  • Brand Name: Komet
  • Part Number: KOMET W04421800212
  • MPN: 6261461402
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

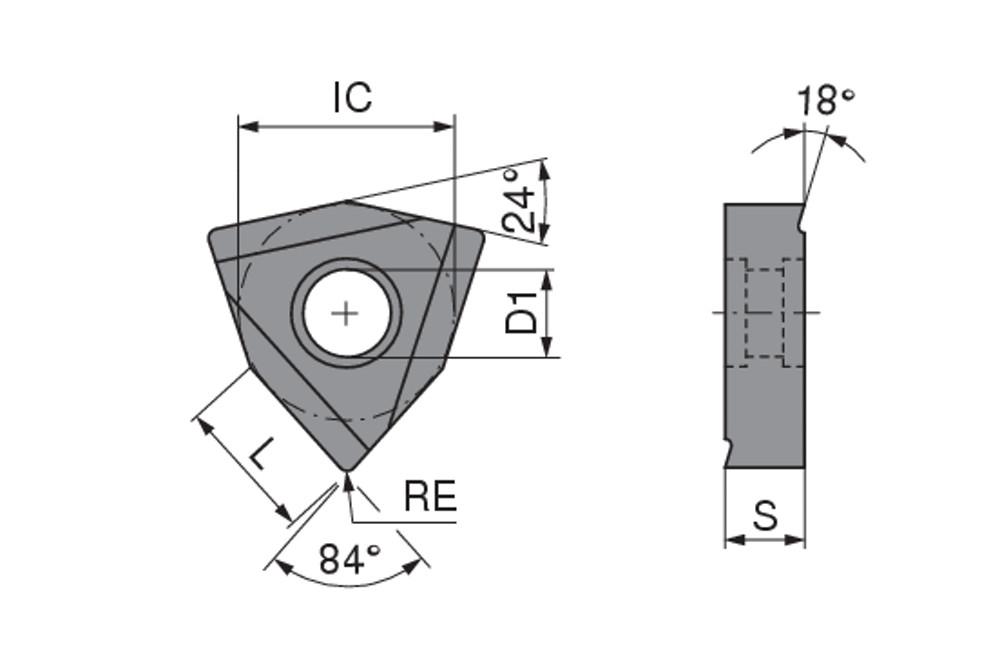

Komet, 6261461402, Insert, WNHX Insert, 08 Insert, 80 deg Trigon Shape, 0.4724 in Inscribed Circle, 0.1772 in Thickness, 0.2953 in Width, 0.2953 in Length, G18 Chipbreaker, 0.0079 in Corner Radius, 0.185 in Diameter Hole, Manufacturer's Grade: P25, ANSI Code: WNHX 08T302EL-G18 P25, ISO Code: WNHX 08T302EL, 84 deg Included Angle, Left Hand of Insert, Carbide, P25 Coated

ANSI Code      :      WNHX 08T302EL-G18 P25
Chipbreaker      :      G18
Corner Radius      :      0.0079 in
Finish      :      P25 Coated
Hand of Insert      :      Left
Hole Diameter      :      0.185 in
ISO Code      :      WNHX 08T302EL
Included Angle      :      84 deg
Inscribed Circle      :      0.4724 in
Insert Size      :      08
Insert Style      :      WNHX
Length      :      0.2953 in
Manufacturer's Grade      :      P25
Material      :      Carbide
Shape      :      80 deg Trigon
Thickness      :      0.1772 in
Width      :      0.2953 in
