KEO 103-063055 KEO-103-063055
  1. pin-int

KEO-103-063055

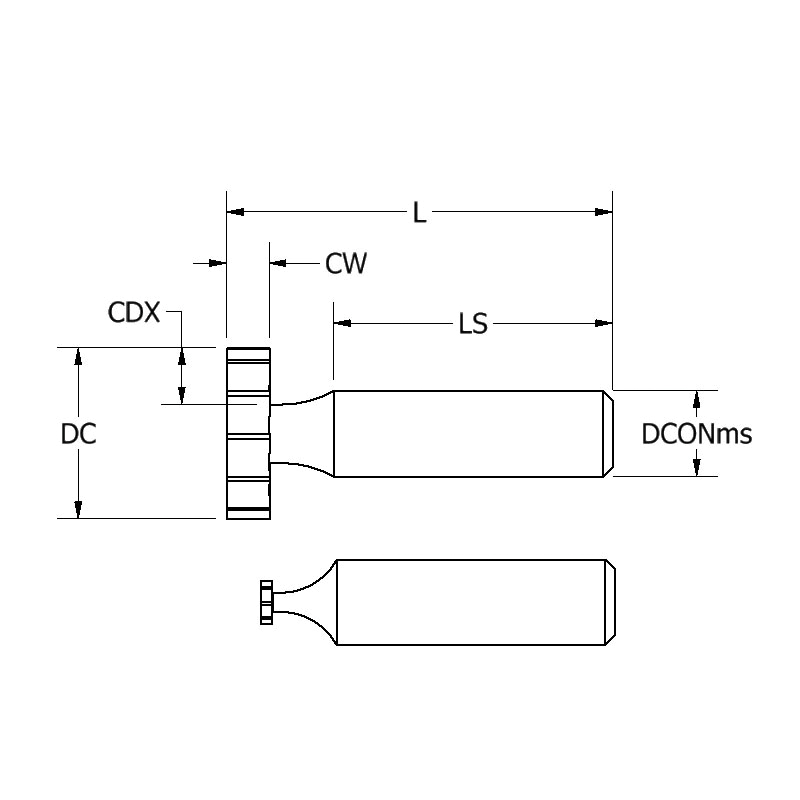

KEO 103-063055 8-Flute Standard Keyseat/Woodruff Cutter, Shank Connection, 0.635 in Dia Cutter, 0.0938 in W Cutting, 2.0938 in OAL, 1/2 in Dia Straight Shank, 0.635 in Dia Arbor Hole, Staggered Tooth

  • Manufacturer: ARCH Cutting Tools
  • Brand Name: KEO
  • Part Number: KEO-103-063055
  • MPN: 103-063055
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

KEO Keyseat/Woodruff Cutter, 8-Flute Standard, 0.635 in Diameter Cutter, 2.0938 in Overall Length, 0.0938 in Cutting Width, 1/2 in Shank Diameter, Straight Shank, 1-5/8 in Shank Length, Right Hand Cutting Direction, Shank Connection, 0.635 in Arbor Hole, Staggered Tooth, HSS, Uncoated

Arbor Hole Diameter      :      0.635 in
Connection Type      :      Shank
Cutter Diameter      :      0.635 in
Cutting Direction      :      Right Hand
Cutting Width      :      0.0938 in
Finish      :      Uncoated
Material      :      HSS
Overall Length      :      2.0938 in
Shank Diameter      :      1/2 in
Shank Length      :      1-5/8 in
Shank Type      :      Straight
Tooth Configuration      :      Staggered
Type      :      8-Flute Standard
