JET 141175

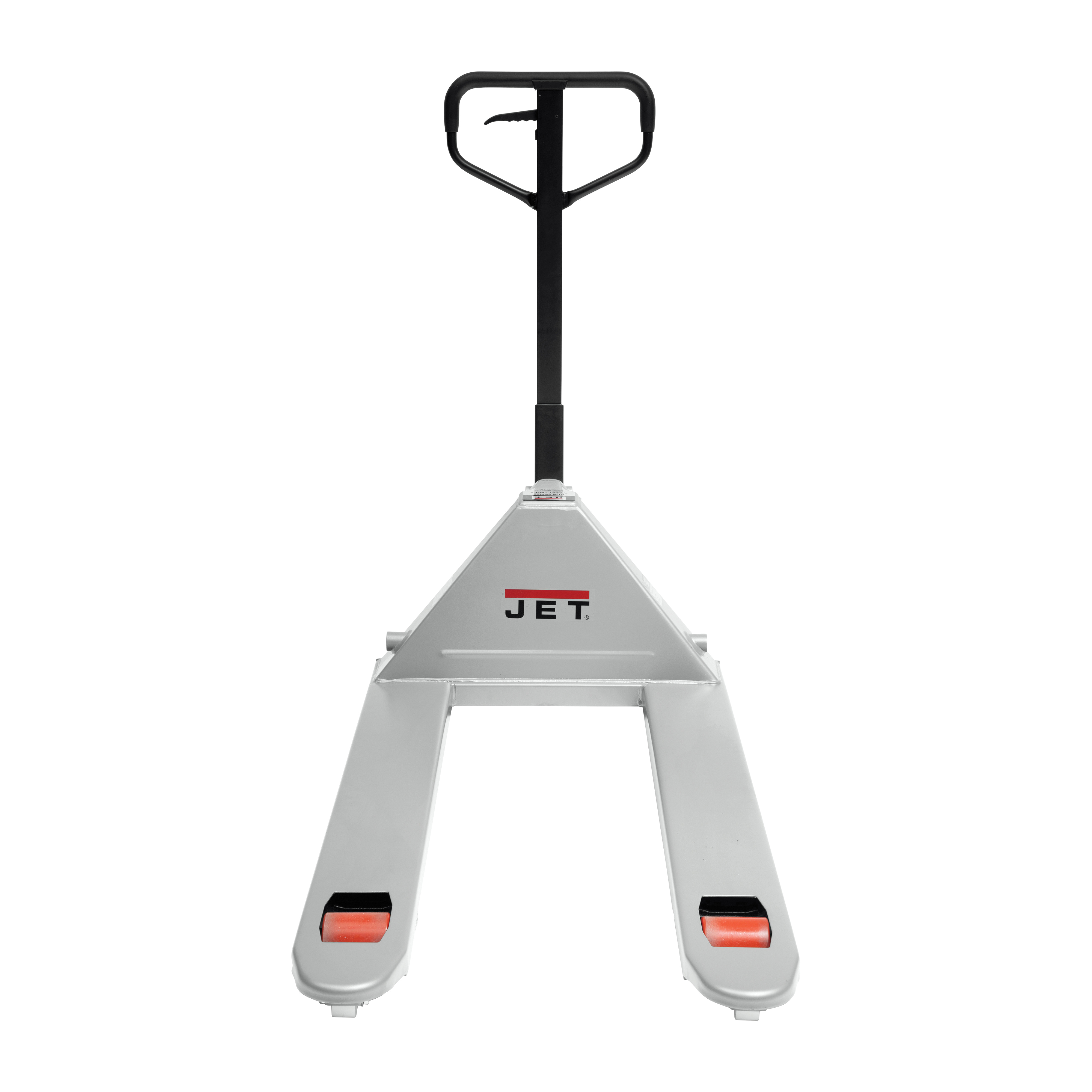

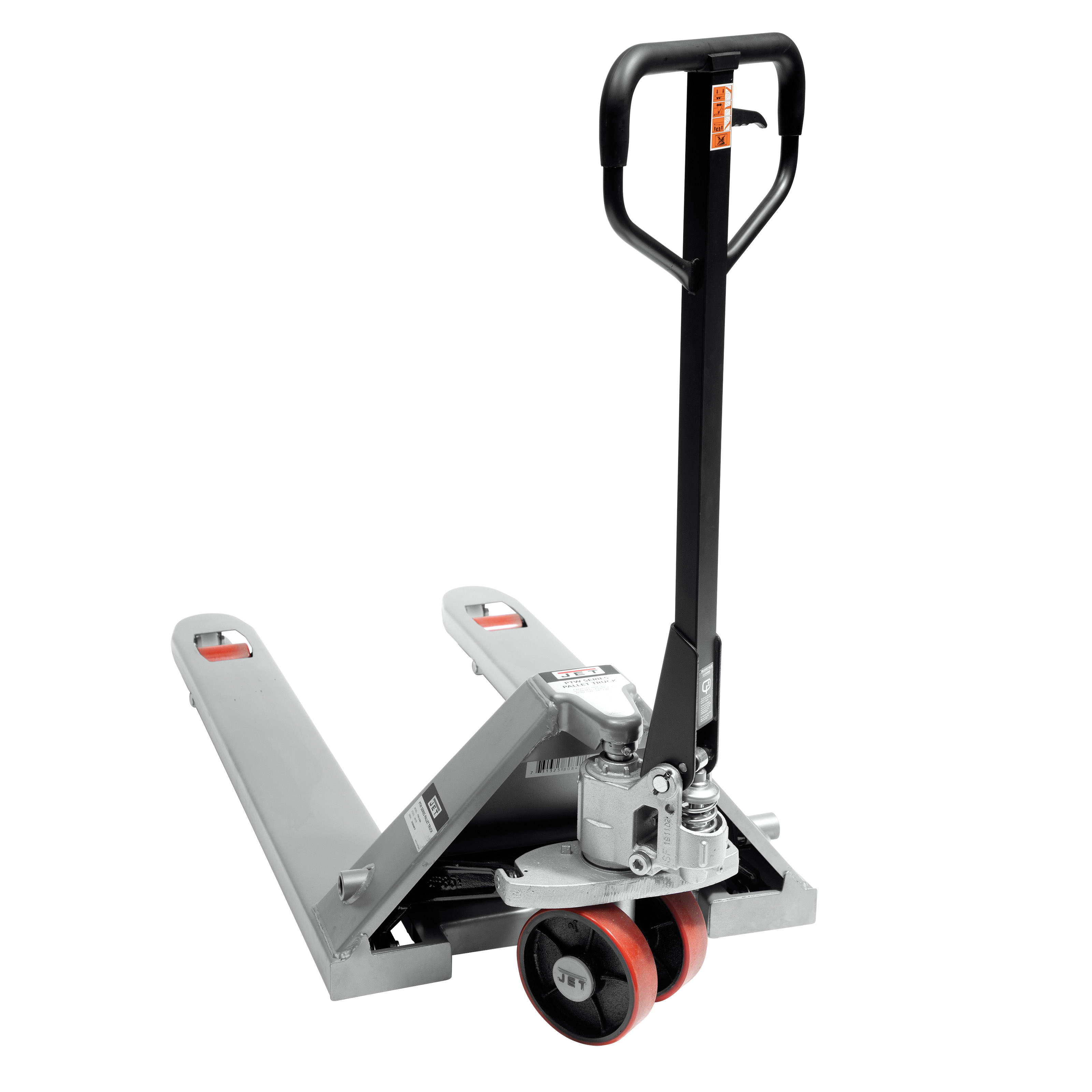

JET® PTW Series Pallet Trucks are available in 5 different configurations. Each JET® PTW Pallet Truck has a low profile of less than 3 in, varying widths of 20 to 27 in and different lengths from 36 to 48 in. High quality welded steel construction gives the PTW series a capacity of 6000 lb. The 200 deg turning radius increases maneuverability and the easy-to-use fingertip controls permit single handed operation. JET® PTW Series Pallet Trucks are built to handle heavy lifting.

JET®, JT9-141175, Pallet Truck, Series: PTW, 6600 lb Load, 48 in Fork Length, 6-1/4 in Fork Width, 27 in Width Across Fork, 2.95 in Fork Height Lowered, 7-1/2 in Fork Height Raised, Polyurethane Coated Steer Wheel Caster, 63 in L x 27 in W x 48 in H Dimensions

• Lower material in a controlled decent with either hand or foot control for operator convenience
• Overload protection prevents lifting loads past maximum capacity
• Polyurethane 6-1/4 x 2 in steer wheels for non marking of floors and quieter rolling

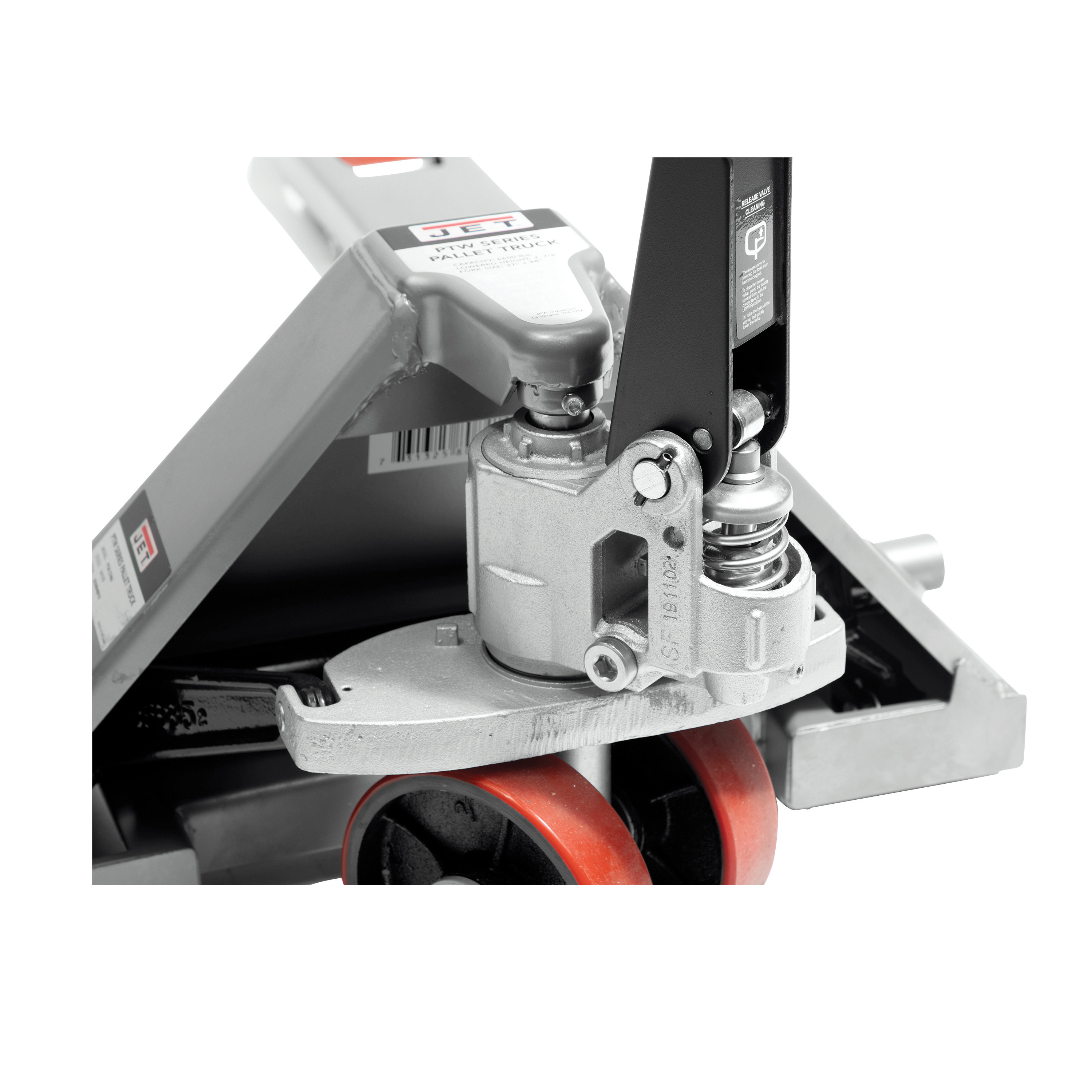

• Pump designed so that cylinder will not extend beyond maximum height
• Pumps designed for any industrial environment
• Pallet truck features low profile, steel construction and 180 deg turning radius for optimal material handling

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_141170_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_141170_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_141175_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/JET_141175_Specification_Sheet.pdf
