Iscar 6405010 ISCAR 6405020
  1. pin-int

ISCAR 6405020

Iscar 6405010 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 300000 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturer's Grade: IC830, TiAlN/AlTiN/TiN, Material Grade: M, P, S

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR 6405020
  • MPN: 6405010
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

ISCARs unique groove turn tools are multifunction turning tools, able to operate in a sequence of grooving and turning modes. Moving from turning to grooving requires consideration of the basic grip principle, thereby eliminating the possibility of insert breakage. The CUT-GRIP line offers a diverse range of multifunction groove turn tools for increased productivity and profitability.

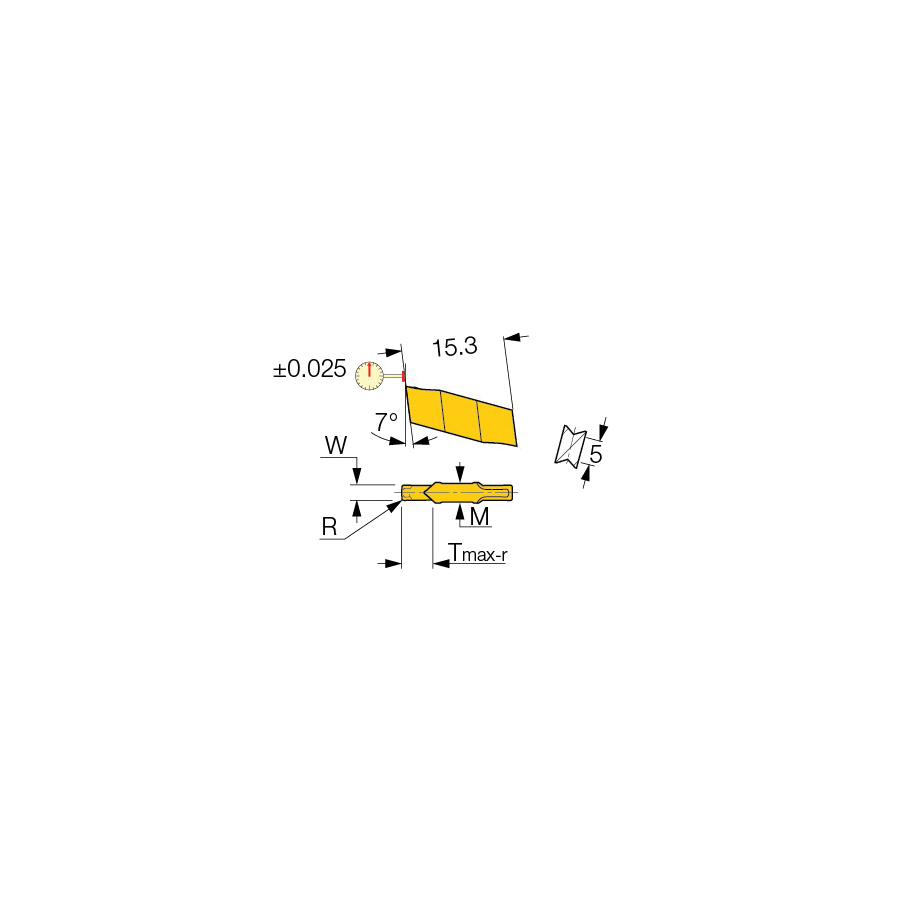

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 300000 Insert, Rectangle Shape, 3 mm Cutting Width, 0.8 mm Maximum Depth of Cut, P Chipbreaker, 3 mm Width, 15.3 mm Length, Manufacturer's Grade: IC830, ISO Code: GIP 300000 IC830, Neutral Cutting Direction, Carbide, TiAlN/AlTiN/TiN, Material Grade: M, P, S

Chipbreaker      :      P
Cutting Direction      :      Neutral
Cutting Width      :      3 mm
Finish      :      TiAlN/AlTiN/TiN
ISO Code      :      GIP 300000 IC830
Insert Size      :      300000
Insert Style      :      GIP
Length      :      15.3 mm
Manufacturer's Grade      :      IC830
Material Grade      :      M, P, S
Material      :      Carbide
Maximum Depth of Cut      :      0.8 mm
Series      :      CUT-GRIP
Shape      :      Rectangle
Type      :      Double End
Width      :      3 mm
  • Precision ground inserts for grooving and recessing
  • Large variety of standard sizes
