ISCAR 6290555
Iscar 6290555 HELIFACE Double End Utility Grooving Insert, Rectangle Shape, HFPR Insert, 4004 Insert, Right Hand Cutting, 4 mm W Cutting, Manufacturer's Grade: IC328, TiCN, Material Grade: M, P, S
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 6290555
- MPN: 6290555
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 10/PK
-
Price:

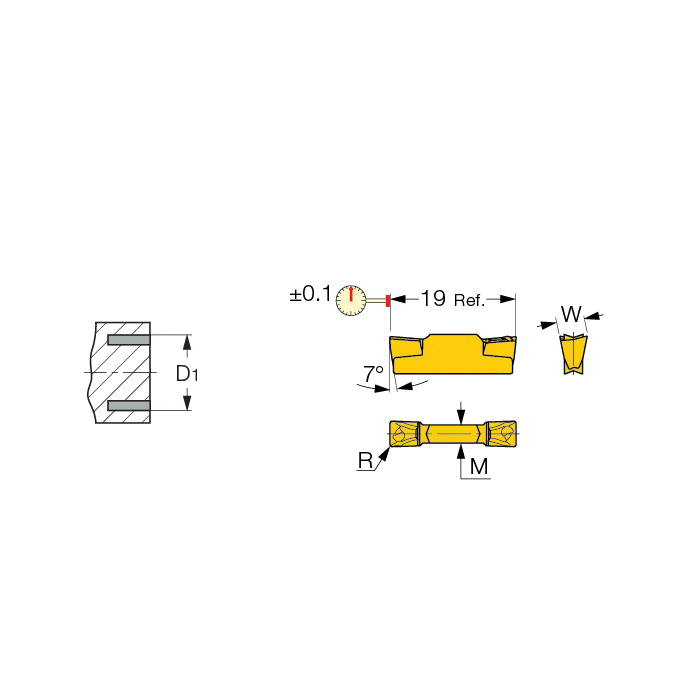

Iscar Grooving Insert, Double End Utility, Series: HELIFACE, HFPR Insert, 4004 Insert, Rectangle Shape, 4 mm Cutting Width, 2 mm Maximum Depth of Cut, 0 deg Lead Angle, 0.4 mm Corner Radius, 4 mm Width, 19 mm Length, Manufacturer's Grade: IC328, ISO Code: HFPR 4004 IC328, Right Hand Cutting Direction, Carbide, TiCN, Material Grade: M, P, S
| Corner Radius | : | 0.4 mm |
| Cutting Direction | : | Right Hand |
| Cutting Width | : | 4 mm |
| Finish | : | TiCN |
| ISO Code | : | HFPR 4004 IC328 |
| Insert Size | : | 4004 |
| Insert Style | : | HFPR |
| Lead Angle | : | 0 deg |
| Length | : | 19 mm |
| Manufacturer's Grade | : | IC328 |
| Material Grade | : | M, P, S |
| Material | : | Carbide |
| Maximum Depth of Cut | : | 2 mm |
| Series | : | HELIFACE |
| Shape | : | Rectangle |
| Type | : | Double End Utility |
| Width | : | 4 mm |
