ISCAR 6200092
Iscar 6200092 HELI-GRIP Y-Type Double End Twisted Utility Grooving Insert, Rectangle Shape, GRIP Insert, 4004 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturer's Grade: IC354, TiCN, Material Grade: M, P
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 6200092
- MPN: 6200092
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 10/PK
-
Price:

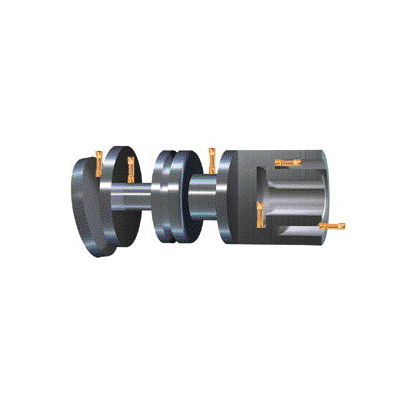

The HELI-GRIP product family is our first choice for general purpose groove turn. Due to the twisted concept, HELI-GRIP inserts are the only double ended inserts in the market that can groove deeper than the inserts length.

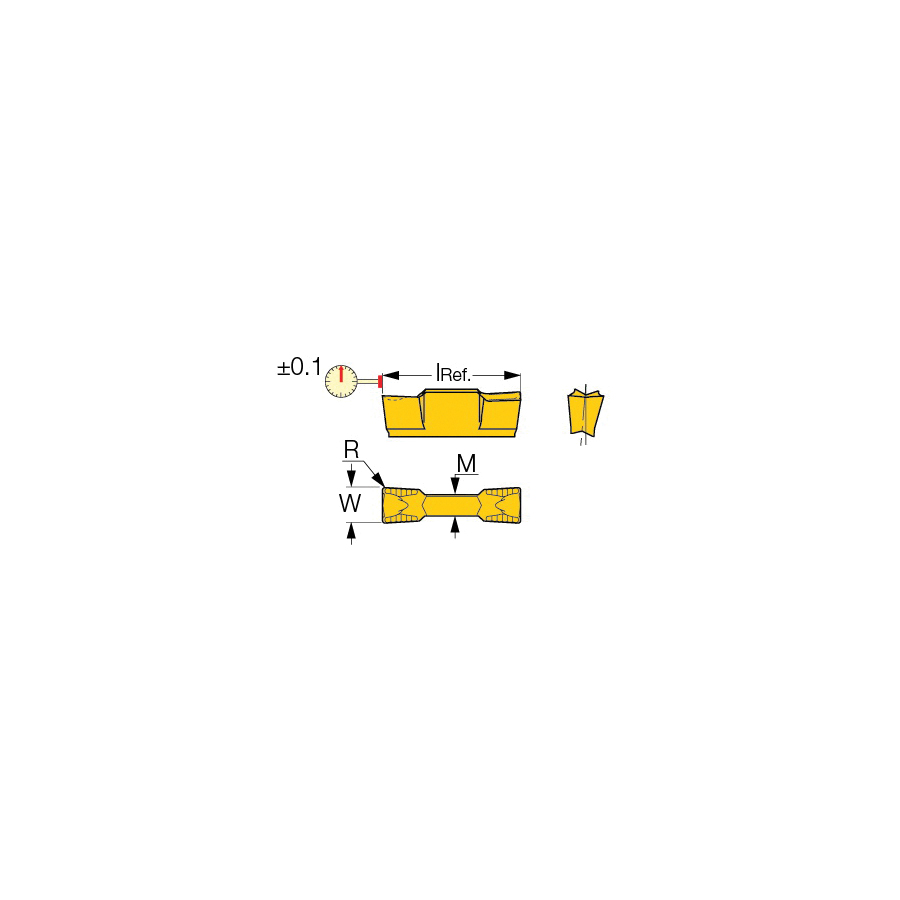

Iscar Grooving Insert, Y-Type Double End Twisted Utility, Series: HELI-GRIP, GRIP Insert, 4004 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, Y Chipbreaker, 0.4 mm Corner Radius, 4 mm Width, 19 mm Length, Manufacturer's Grade: IC354, ISO Code: GRIP 4004Y IC354, Neutral Cutting Direction, Carbide, TiCN, Material Grade: M, P
| Chipbreaker | : | Y |
| Corner Radius | : | 0.4 mm |
| Cutting Direction | : | Neutral |
| Cutting Width | : | 4 mm |
| Finish | : | TiCN |
| ISO Code | : | GRIP 4004Y IC354 |
| Insert Size | : | 4004 |
| Insert Style | : | GRIP |
| Length | : | 19 mm |
| Manufacturer's Grade | : | IC354 |
| Material Grade | : | M, P |
| Material | : | Carbide |
| Maximum Depth of Cut | : | 2.4 mm |
| Series | : | HELI-GRIP |
| Shape | : | Rectangle |
| Type | : | Y-Type Double End Twisted Utility |
| Width | : | 4 mm |
