ISCAR 6002600
Iscar 6002600 SELF-GRIP Cut-Off/Parting Insert, 6 Insert, GFN Insert, Material Grade: M, P, 6.39 mm W Cutting, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Carbide, Manufacturer's Grade: IC354, PVD Coated
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 6002600
- MPN: 6002600
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 10/PK
-
Price:

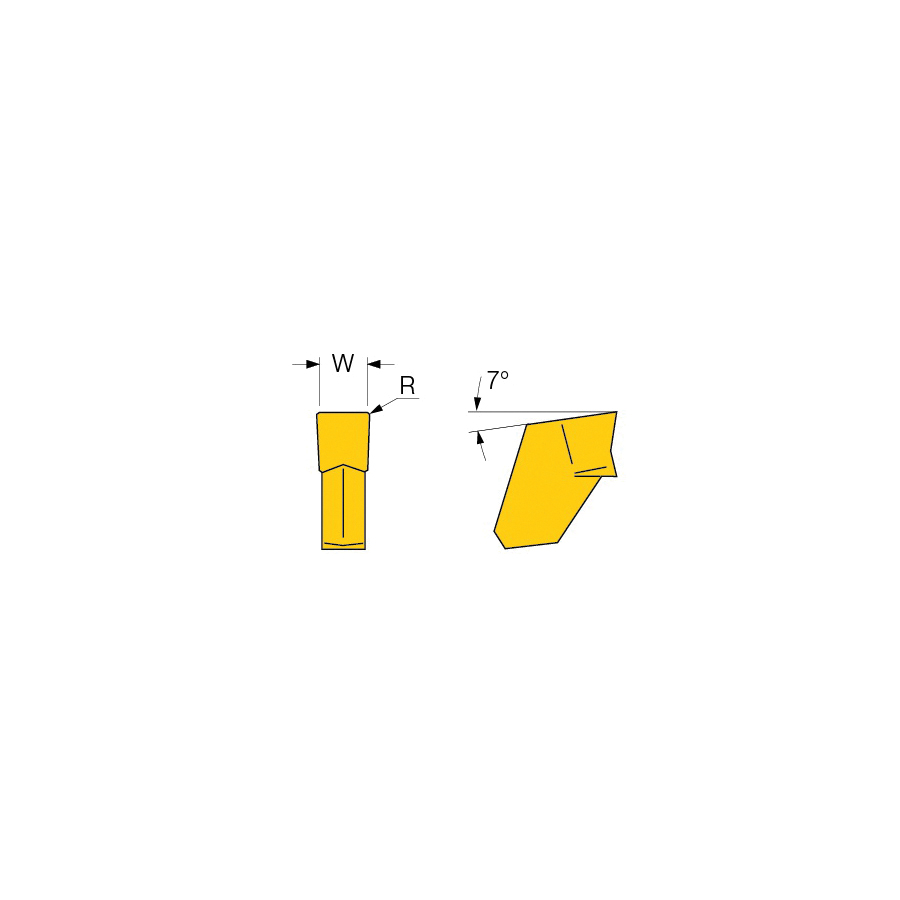

Iscar Cut-Off/Parting Insert, Series: SELF-GRIP, GFN Insert, 6 Insert, 6.39 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 6.39 mm Width, 0.35 mm Corner Radius, Manufacturer's Grade: IC354, ISO Code: GFN 6 IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, PVD Coated, Material Grade: M, P
| Corner Radius | : | 0.35 mm |
| Cutting Width | : | 6.39 mm |
| Finish | : | PVD Coated |
| Hand of Insert | : | Ambidextrous |
| ISO Code | : | GFN 6 IC354 |
| Included Angle | : | 90 deg |
| Insert Size | : | 6 |
| Insert Style | : | GFN |
| Lead Angle Direction | : | Neutral |
| Lead Angle | : | 0 deg |
| Manufacturer's Grade | : | IC354 |
| Material Grade | : | M, P |
| Material | : | Carbide |
| Relief Angle | : | 7 deg |
| Series | : | SELF-GRIP |
| Shape | : | Rectangle |
| Width | : | 6.39 mm |
- First choice for the parting of bars, hard materials and tough applications
- Positive rake, single cavity with a negative land and shoulders, provides extra cutting edge strength
- Medium-to-high feeds
- IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
- High toughness
