ISCAR 6002343

In addition to highly efficient parting inserts in single and double-ended conventional configurations, Iscar offers a unique double-ended twisted geometry for unlimited depth of penetration. The DO-GRIP ranges also include the largest choice of parting widths available in today's market, covering all applications. Iscar offers a wide variety of chipformers and the most advanced grades to ensure unbeatable performance and extended tool life.

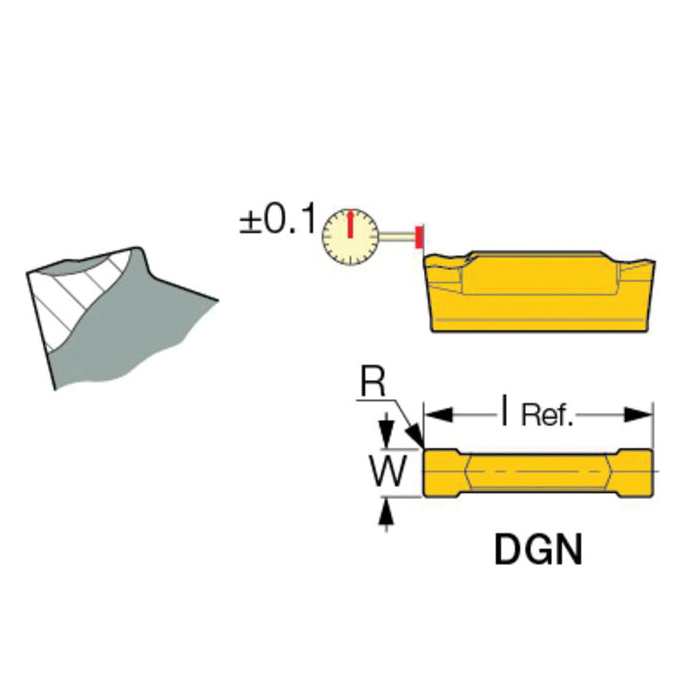

Iscar Parting Insert, Series: DO-GRIP, DGN Insert, 3102C Insert, 3.1 mm Cutting Width, 0 deg Lead Angle, Neutral Lead Angle Direction, 7 deg Relief Angle, Rectangle Shape, 3.1 mm Width, 20.1 mm Length, C Chipbreaker, 0.2 mm Corner Radius, Manufacturer's Grade: IC354, ISO Code: DGN 3102C IC354, 90 deg Included Angle, Ambidextrous Hand of Insert, Carbide, Material Grade: M, P

• Used for parting bars, hard materials and tough applications
• A positive rake, single cavity with a negative land and shoulders
• Medium-to-high feeds
• IC354 grade - a thin PVD-coated TiCN layer on a P40 substrate
• High toughness
• For general applications in parting and grooving steel, alloy and stainless steel at medium-to high cutting speeds
• C-type chipbreaker - first choice for the parting of bars, hard materials, and tough applications
• A positive rake, single cavity with negative land and shoulders, provides extra cutting edge strength
• Medium-to high feed
