ISCAR 5902170
Iscar 5902178 ISCARTHREAD Laydown Threading Insert, 11IR Insert, Triangular Shape, 18 TPI, Internal Thread, UN Thread, Right Hand Cutting, Manufacturer's Grade: IC908, Material Grade: H, K, M, P, S
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 5902170
- MPN: 5902178
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 5/PK
-
Price:

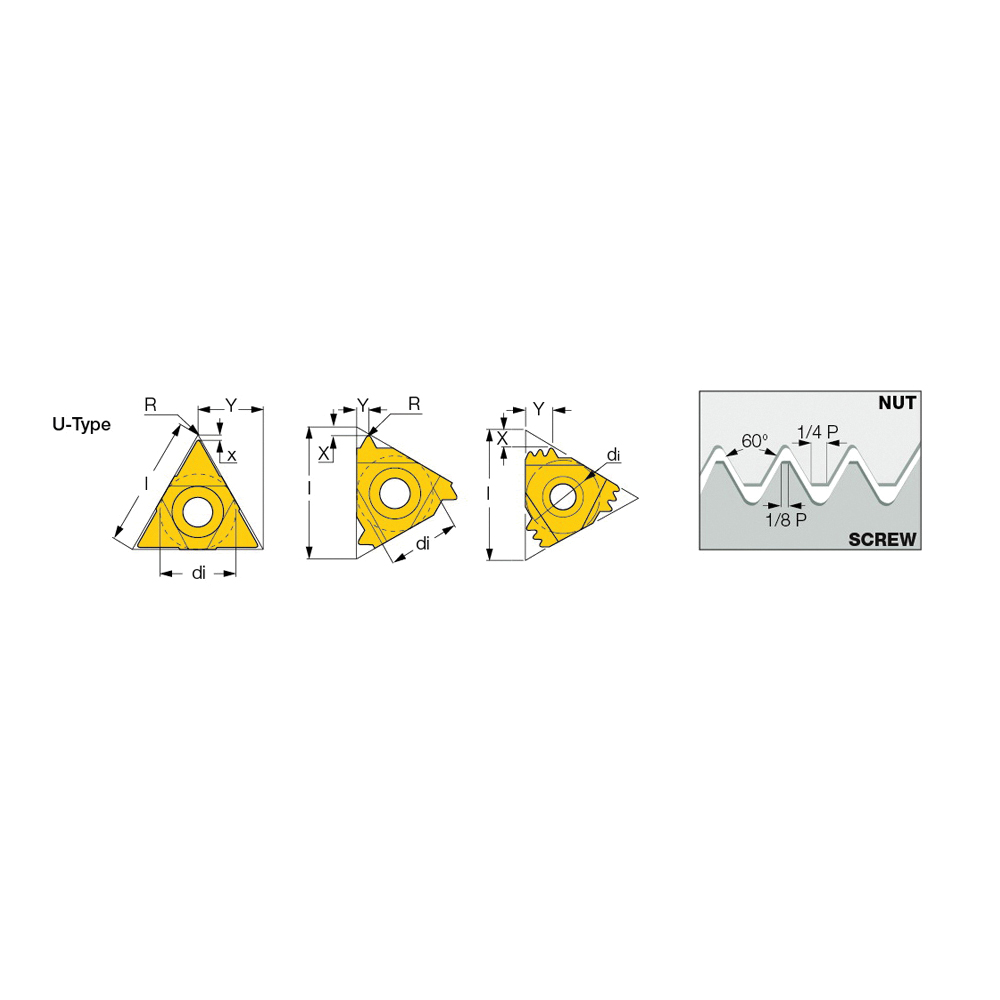

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 11IR Insert, 11 Insert, Triangular Shape, Internal Thread, UN Thread Standard, 18 Threads per Inch, 6.35 mm Inscribed Circle, 3.2 mm Thickness, 11 mm Length, ISO Code: 11IR 18 UN IC908, 0.1 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: IC908, Right Hand Cutting Direction, Carbide, TiAlN, Material Grade: H, K, M, P, S
| Corner Radius | : | 0.1 mm |
| Cutting Direction | : | Right Hand |
| Finish | : | TiAlN |
| ISO Code | : | 11IR 18 UN IC908 |
| Included Angle | : | 60 deg |
| Inscribed Circle | : | 6.35 mm |
| Insert Size | : | 11 |
| Insert Style | : | 11IR |
| Length | : | 11 mm |
| Manufacturer's Grade | : | IC908 |
| Material Grade | : | H, K, M, P, S |
| Material | : | Carbide |
| Series | : | ISCARTHREAD |
| Shape | : | Triangular |
| Thickness | : | 3.2 mm |
| Thread Standard | : | UN |
| Thread Type | : | Internal |
| Threads per Inch | : | 18 |
| Type | : | Laydown |
