ISCAR 5901934
Iscar 5901944 ISCARTHREAD Laydown Threading Insert, 16ERA Insert, Triangular Shape, 16 to 48 TPI, External Thread, 60 deg Partial Profile Thread, 0.5 to 1.5 mm Pitch, Right Hand Cutting, Manufacturer's Grade: IC908, Material Grade: H, K, M, P, S
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 5901934
- MPN: 5901944
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 5/PK
-
Price:

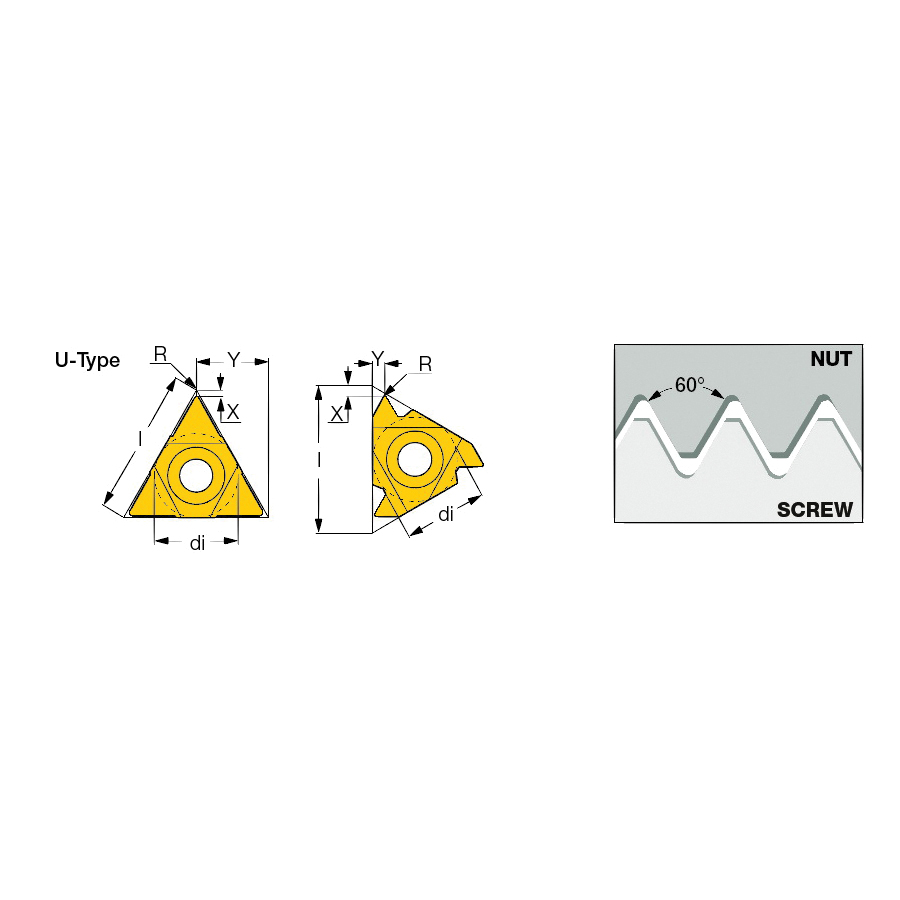

Iscar Threading Insert, Laydown, Series: ISCARTHREAD, 16ERA Insert, 16 Insert, Triangular Shape, External Thread, 60 deg Partial Profile Thread Standard, 0.5 to 1.5 mm Pitch, 16 to 48 Threads per Inch, 9.52 mm Inscribed Circle, 3.63 mm Thickness, 16.49 mm Length, ISO Code: 16ER A 60 IC908, B Chipbreaker, 0.05 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: IC908, Right Hand Cutting Direction, Carbide, TiAlN, Material Grade: H, K, M, P, S
| Chipbreaker | : | B |
| Corner Radius | : | 0.05 mm |
| Cutting Direction | : | Right Hand |
| Finish | : | TiAlN |
| ISO Code | : | 16ER A 60 IC908 |
| Included Angle | : | 60 deg |
| Inscribed Circle | : | 9.52 mm |
| Insert Size | : | 16 |
| Insert Style | : | 16ERA |
| Length | : | 16.49 mm |
| Manufacturer's Grade | : | IC908 |
| Material Grade | : | H, K, M, P, S |
| Material | : | Carbide |
| Pitch | : | 0.5 to 1.5 mm |
| Series | : | ISCARTHREAD |
| Shape | : | Triangular |
| Thickness | : | 3.63 mm |
| Thread Standard | : | 60 deg Partial Profile |
| Thread Type | : | External |
| Threads per Inch | : | 16 to 48 |
| Type | : | Laydown |
