Contact 800-639-2901
ISCAR 5598816
Iscar 5598816 DR-TWIST Single Sided Indexable Drill Insert, Squared Shape, Material Grade: C2, C3, C5, C6, 09T306 Insert, SOMT Insert, 3.81 mm THK, 9 mm Inscribed Circle, For Use On Alloy Steels and Stainless Steel, Manufacturer's Grade: IC328
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 5598816
- MPN: 5598816
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 10/PK
-
Price:

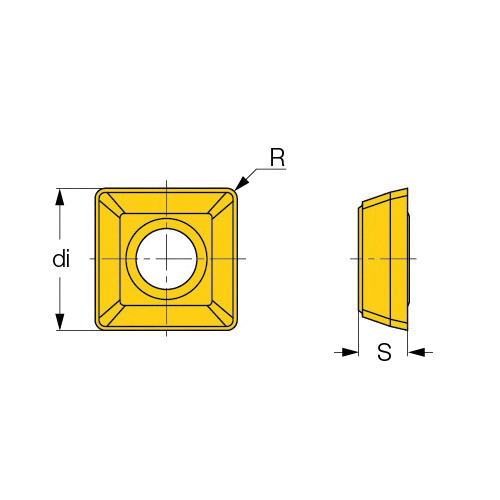

Iscar Indexable Drill Insert, Single Sided, Series: DR-TWIST, SOMT Insert, 09T306 Insert, Squared, 9 mm Inscribed Circle, 3.81 mm Thickness, 9 mm Width, 9 mm Length, GF Chipbreaker, 0.6 mm Corner Radius, Manufacturer's Grade: IC328, 90 deg Included Angle, ISO Code: SOMT 09T306-GF IC328, Alloy Steels and Stainless Steel For Use On, Carbide, TiCN, Material Grade: C2, C3, C5, C6
| Chipbreaker | : | GF |
| Corner Radius | : | 0.6 mm |
| Finish | : | TiCN |
| For Use On | : | Alloy Steels and Stainless Steel |
| ISO Code | : | SOMT 09T306-GF IC328 |
| Included Angle | : | 90 deg |
| Inscribed Circle | : | 9 mm |
| Insert Size | : | 09T306 |
| Insert Style | : | SOMT |
| Length | : | 9 mm |
| Manufacturer's Grade | : | IC328 |
| Material Grade | : | C2, C3, C5, C6 |
| Material | : | Carbide |
| Series | : | DR-TWIST |
| Shape | : | Squared |
| Thickness | : | 3.81 mm |
| Type | : | Single Sided |
| Width | : | 9 mm |
- Grade IC328 - a thin PVD-coated TiCN layer on a tough substrate, for milling, parting and grooving on stainless and alloy steels at low-to medium cutting speeds and for unstable machining conditions
