Iscar 5567124 ISCAR 5567124
  1. pin-int

ISCAR 5567124

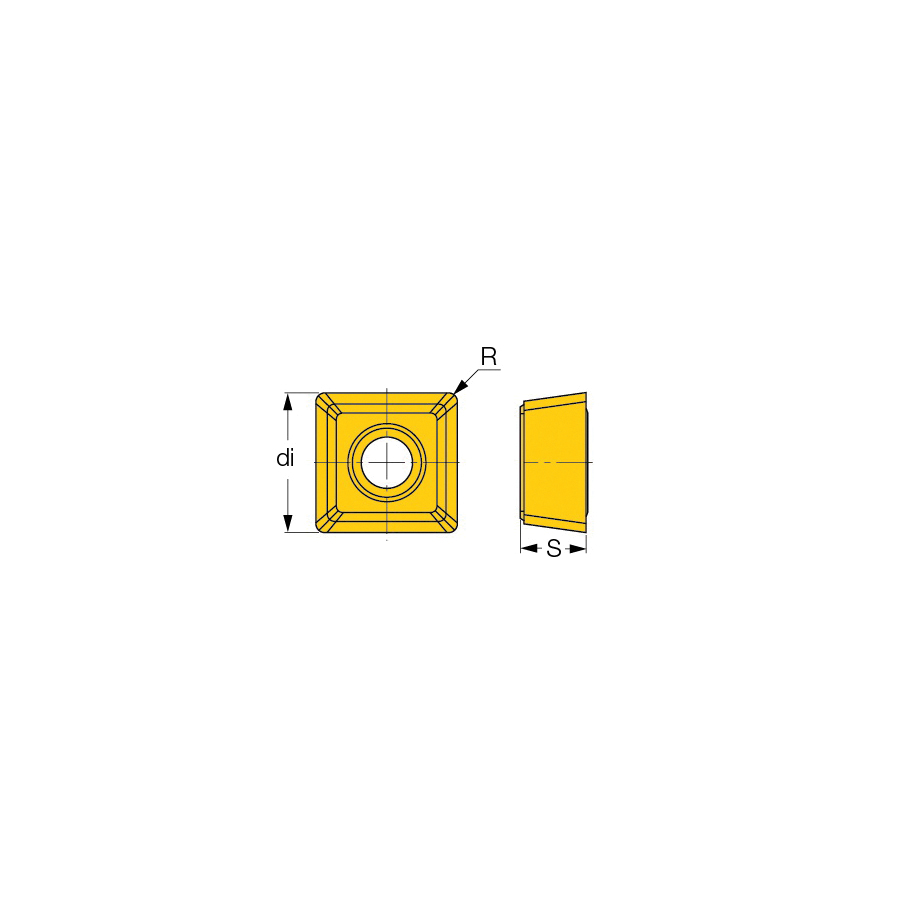

Iscar 5567124 DR-TWIST Indexable Drill Insert, Squared Shape, Material Grade: P15-P30, 120408 Insert, SOMT Insert, 0.187 in THK, 1/2 in Inscribed Circle, For Use On Carbon Steel and Soft Materials, Manufacturer's Grade: IC808

  • Manufacturer: Iscar
  • Brand Name: Iscar
  • Part Number: ISCAR 5567124
  • MPN: 5567124
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at Reynolds & Son, Inc - So Barre

Iscar Indexable Drill Insert, Series: DR-TWIST, SOMT Insert, 120408 Insert, Squared Shape, 1/2 in Inscribed Circle, 0.187 in Thickness, 1/2 in Width, 1/2 in Length, HD Chipbreaker, 0.031 in Corner Radius, Manufacturer's Grade: IC808, 90 deg Included Angle, ISO Code: SOMT 120408-HD IC808, For Use On: Carbon Steel and Soft Materials, Carbide, TiAlN, Material Grade: P15-P30

Chipbreaker      :      HD
Corner Radius      :      0.031 in
Finish      :      TiAlN
For Use On      :      Carbon Steel and Soft Materials
ISO Code      :      SOMT 120408-HD IC808
Included Angle      :      90 deg
Inscribed Circle      :      1/2 in
Insert Size      :      120408
Insert Style      :      SOMT
Length      :      1/2 in
Manufacturer's Grade      :      IC808
Material Grade      :      P15-P30
Material      :      Carbide
Series      :      DR-TWIST
Shape      :      Squared
Thickness      :      0.187 in
Width      :      1/2 in
  • Grade IC808 - a hard, fine grain substrate with excellent chipping resistance, combined with a new "SUMO TEC" TiAlN PVD coating
  • Provides high wear resistance
  • Recommended for a very wide range of materials
