ISCAR 5508090

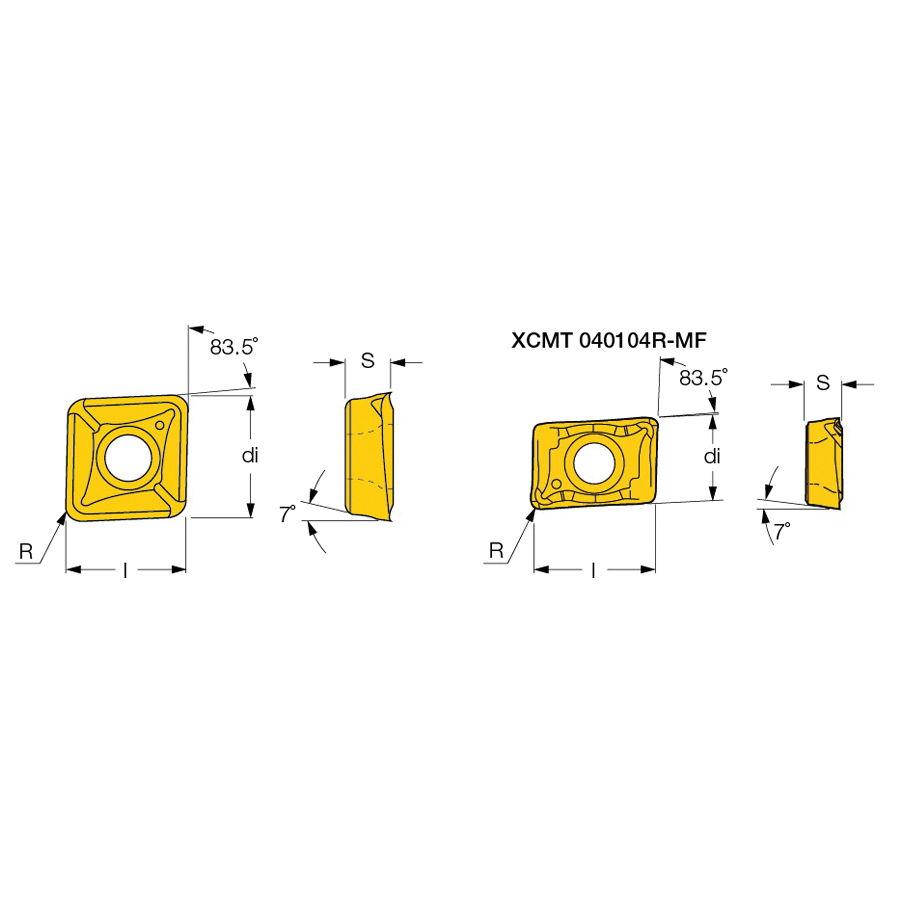

Iscar 5508050 Indexable Drill Insert, Special Parallelogram Shape, 130408 Insert, XCMT Insert, 4.76 mm THK, 13.4 mm Inscribed Circle, Manufacturer's Grade: IC908
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 5508090
- MPN: 5508050
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 10/PK
-
Price:
Iscar Indexable Drill Insert, XCMT Insert, 130408 Insert, Special Parallelogram, 13.4 mm Inscribed Circle, 4.76 mm Thickness, 13.4 mm Length, MF Chipbreaker, 0.8 mm Corner Radius, Manufacturer's Grade: IC908, 83.5 deg Included Angle, ISO Code: XCMT 130408-MF IC908, Carbide
| Chipbreaker | : | MF |
| Corner Radius | : | 0.8 mm |
| ISO Code | : | XCMT 130408-MF IC908 |
| Included Angle | : | 83.5 deg |
| Inscribed Circle | : | 13.4 mm |
| Insert Size | : | 130408 |
| Insert Style | : | XCMT |
| Length | : | 13.4 mm |
| Manufacturer's Grade | : | IC908 |
| Material | : | Carbide |
| Shape | : | Special Parallelogram |
| Thickness | : | 4.76 mm |
- Two cutting edges for hard materials and interrupted cut
- Low cutting forces due to high cutting edges and positive angles
- Grade IC908 - a hard, fine grain substrate with excellent chipping resistance, combined with a TiAlN PVD coating
- Provides high wear and oxidation resistance
- Recommended for a very wide range of materials applications and machining conditions
