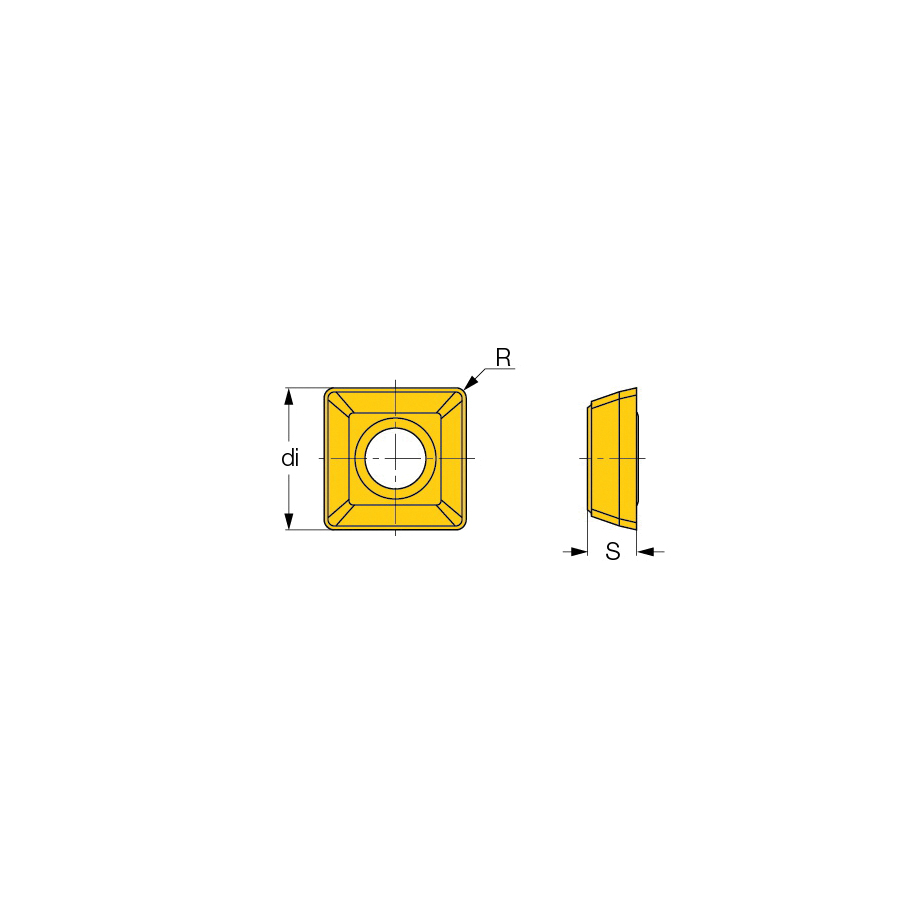

Iscar 5507877 DR-TWIST Indexable Drill Insert, Squared, 120408 Insert Size, SOMT Insert Style, 4.76 mm THK, 12.7 mm Inscribed Circle, Manufacturer's Grade: IC808, Material Grade: P15-P30
- Manufacturer: Iscar
- Brand Name: Iscar
- Part Number: ISCAR 5507877
- MPN: 5507877
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at Reynolds & Son, Inc - So Barre
- Sold As: 10/PK
-
Price:
Iscar Indexable Drill Insert, Series: DR-TWIST, SOMT Insert, 120408 Insert, Squared, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, DT Chipbreaker, 0.8 mm Corner Radius, Manufacturer's Grade: IC808, 90 deg Included Angle, ISO Code: SOMT 120408-DT IC808, Carbide, TiAlN, Material Grade: P15-P30
| Chipbreaker | : | DT |
| Corner Radius | : | 0.8 mm |
| Finish | : | TiAlN |
| ISO Code | : | SOMT 120408-DT IC808 |
| Included Angle | : | 90 deg |
| Inscribed Circle | : | 12.7 mm |
| Insert Size | : | 120408 |
| Insert Style | : | SOMT |
| Length | : | 12.7 mm |
| Manufacturer's Grade | : | IC808 |
| Material Grade | : | P15-P30 |
| Material | : | Carbide |
| Series | : | DR-TWIST |
| Shape | : | Squared |
| Thickness | : | 4.76 mm |
| Width | : | 12.7 mm |
- Grade IC808 - a hard, fine grain substrate with excellent chipping resistance, combined with a new "SUMO TEC" TiAlN PVD coating
- Provides high wear resistance
- Recommended for a very wide range of materials
